Vial filling machine

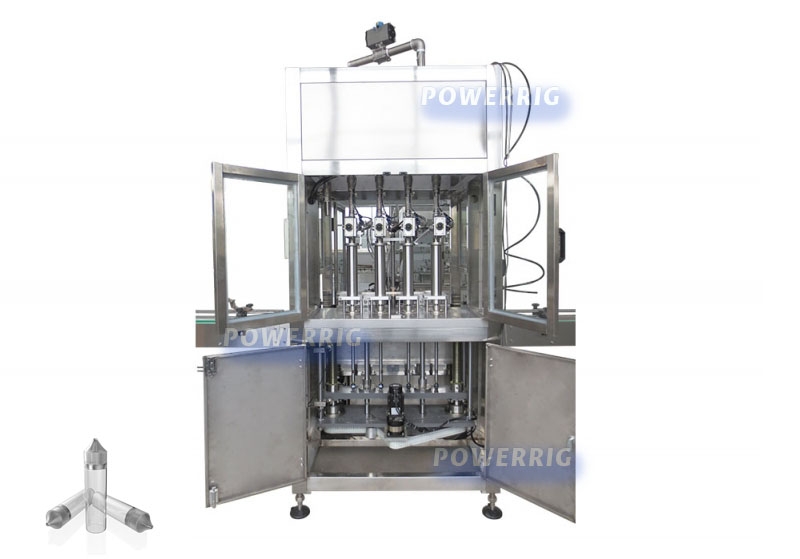

Vial Filling Equipment ( Speed 1-2000 bottles per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
This filling machine is suitable for:

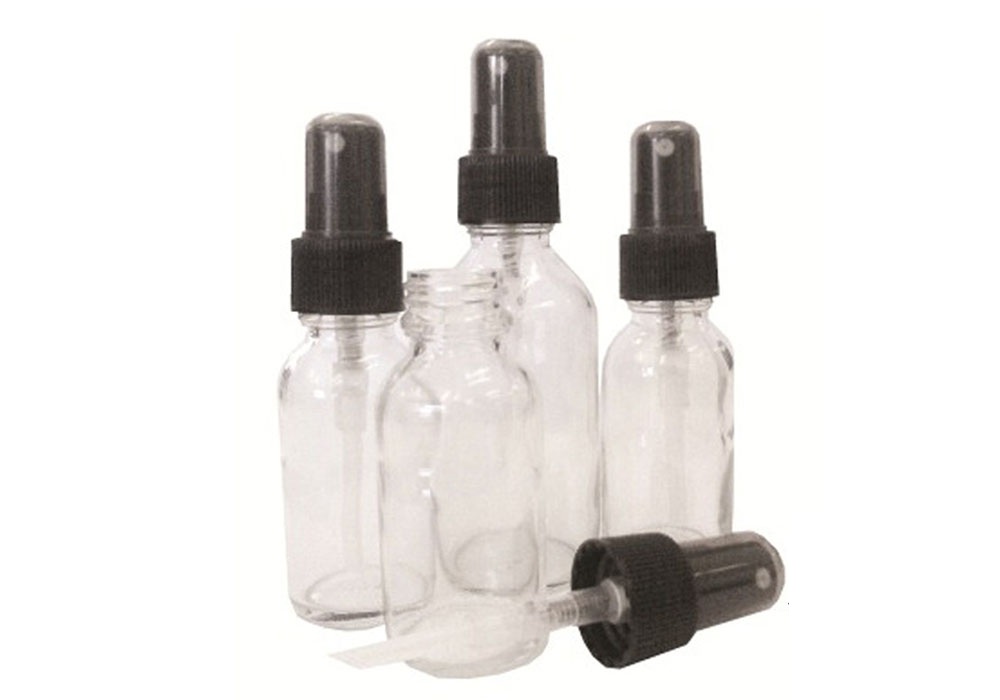

Widely used in food, chemical industry, medicine, cosmetics, pesticides and other industries, suitable for liquid filling, such as plastic bottles, glass bottles, gorilla bottles and so on.

This machine function is:
1. Automatic conveyor belt running
2. Automatic bottles feeding
3. Automatic four filling heads and filling
4. No bottles no filling
5. Can be customized according to different bottles shape and size
This machine is suitable for filling aqueous solutions and cream products, particularly for high viscosity materials (such as cosmetics, seed coating agent, motor lubricating oil, suspending agent etc.) the effect is obvious.
Using PLC programmable control, with touch screen and man-machine interface system; automatic bottle feeding, automatic filling, automatic send bottle out; driven by a servo motor, double screw drive, control the movement of the piston rod to ensure the stability of the filling, filling precision higher.
Used double liquid box and is provided with a filter plate, mechanical three-way easy to clean and replace the material more convenient. It can be with the capping machine, labeling machine supporting the formation of whole production line.

It integrates light, machine, electricity and gas into one body. Is an easy to operate filling machine. With stable and reliable operation, high production efficiency, strong adaptability.


Powerrig Machine is one of the toppest vial filling equipment, vial filling machine, liquid vial filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.







Filling Nozzle

4Pieces

Filling Volume

50ml-500ml

Filling Speed

≤2000bottle/hr base on 100ML

Filling Form

Piston Pump Type (Servo Control)

Accuracy

≤±3‰

Suitable Bottle Diameter

Ф40mm-Ф200mm

Material

Surface: SUS304
Material Contact Part: SUS316

Control

PLC and Touch Screen

Air Pressure

0.55Mpa-0.65Mpa

Power

3Kw

Voltage

380V/50Hz 3phase (Can be customized)

Machine Size

2000*1000*2500MM(L*W*H)

Weight

1500Kg

Name

Brand

Press-button

Schneider

Magnetic Contactor

Schneider

Relay

Omron

Frequency Transformer

Mitsubishi

Motor

JSCC Made in Germany

Air Cylinder

Airtac

Solenoid Valve

Airtac

Speed Reducer

Made in Taiwan

Bearing

NSK

PLC

Mitsubishi

Touch Screen

Mitsubishi

Fibre-optical

Autonics

Switching Mode Power Supply

NWELL

Step Motor

SNAYO Made in Japan
