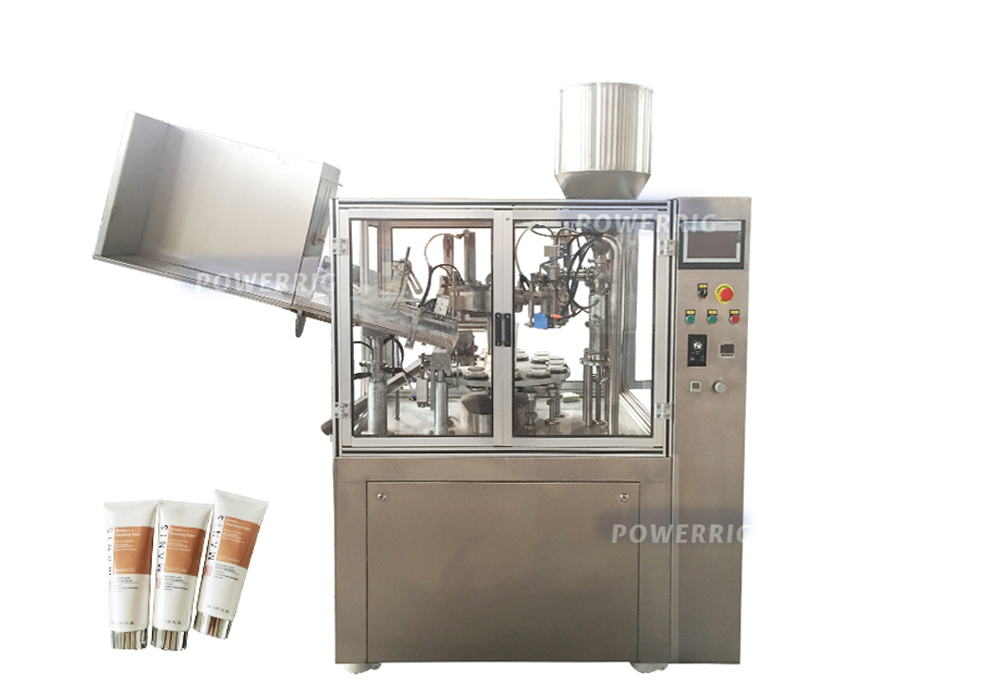

R60 Plastic Tube Filling Machine ( Speed 60-85 tubes per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This is our big type automatic  plastic （PE ,PP ,PVC plastic tube） soft  tube filling machine


Main sued for soft plastic tube , laminated tube


It can paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.

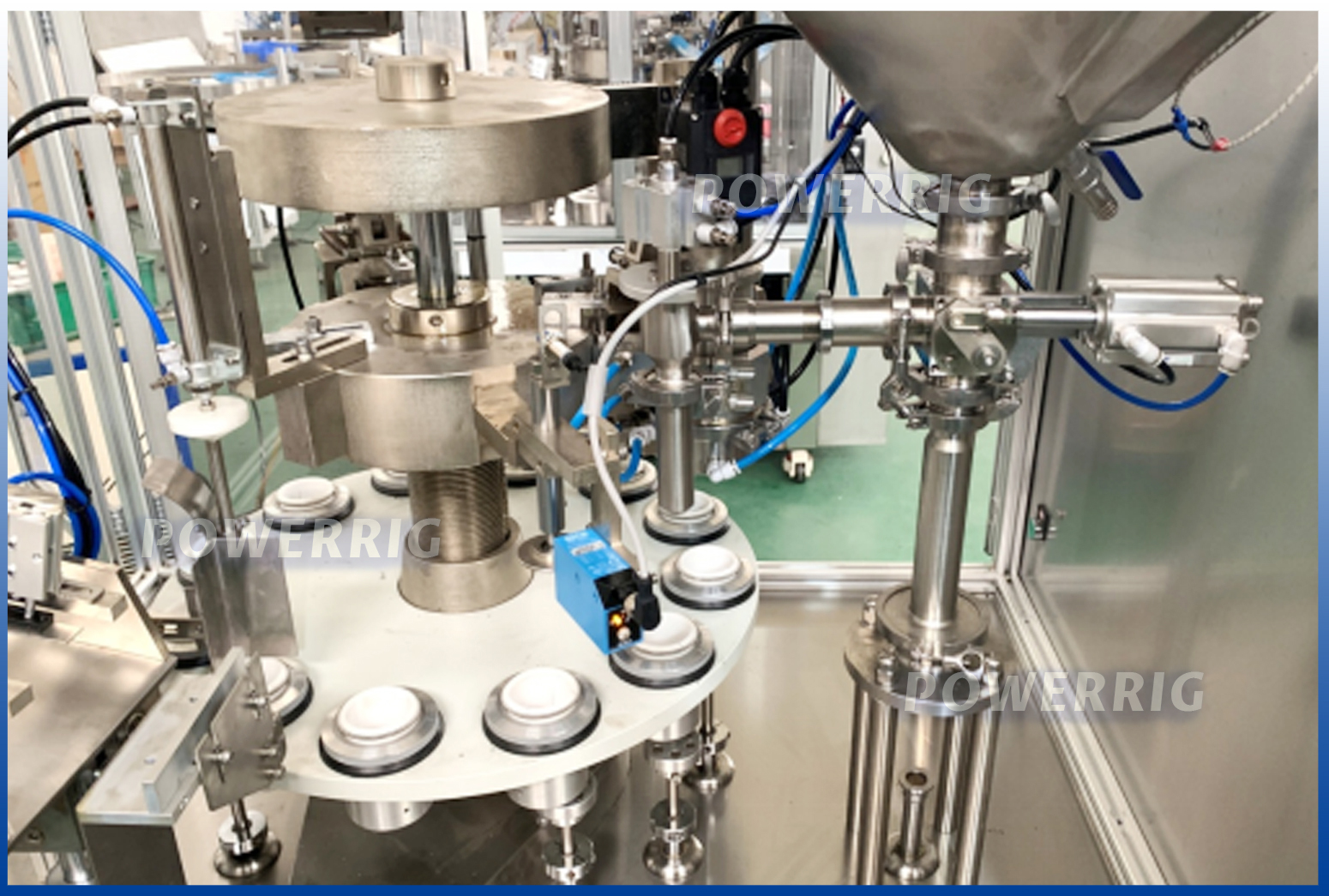

Machine filling method adopt Cam control vertical up filling ,add turn valve (bottom filling ) ,also can customize different filling method according to different type material.

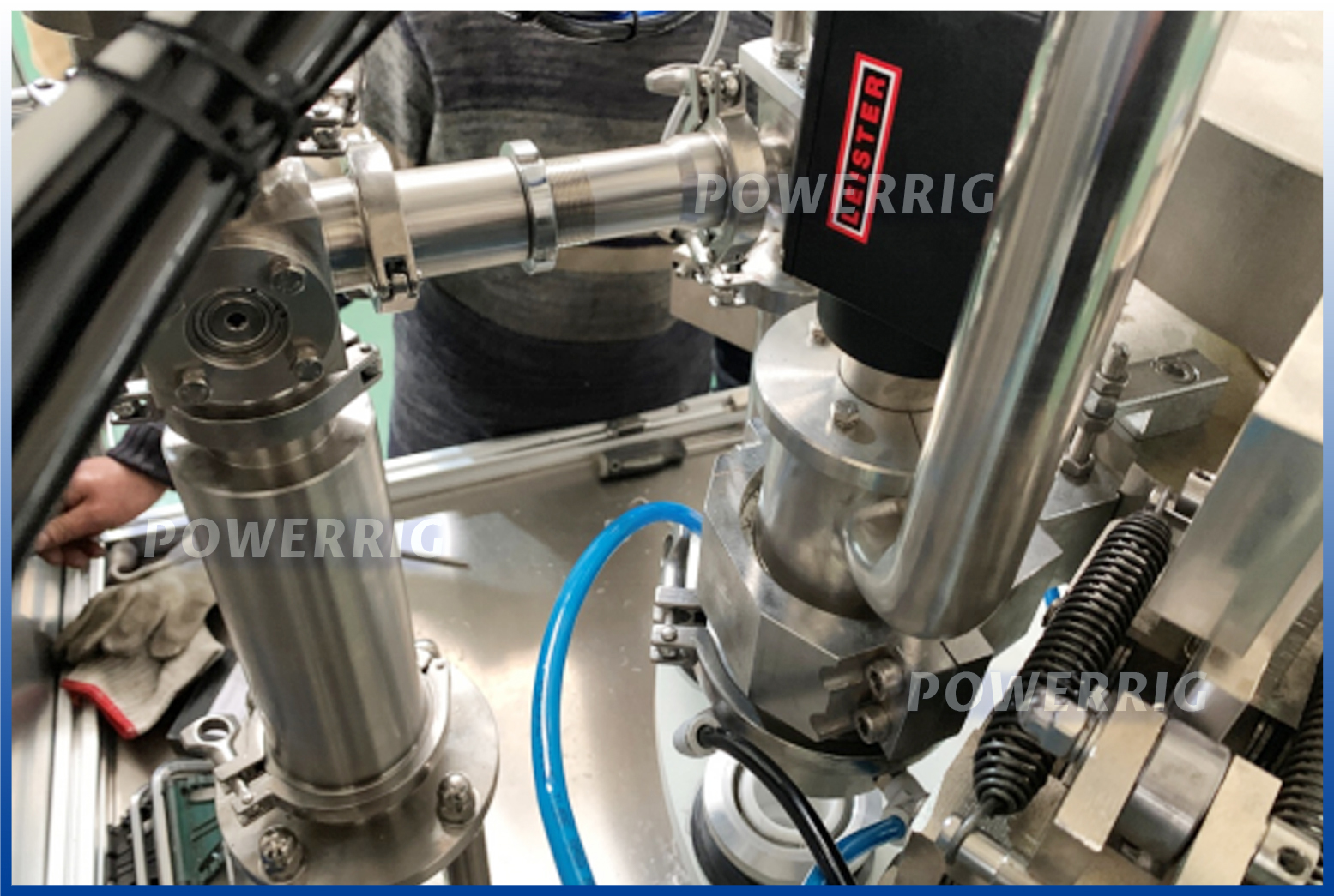

Sealing method adopt Swiss heating gun , Import LISTER heating gun heating sealing tube tail, sealing effect more better than other sealing method

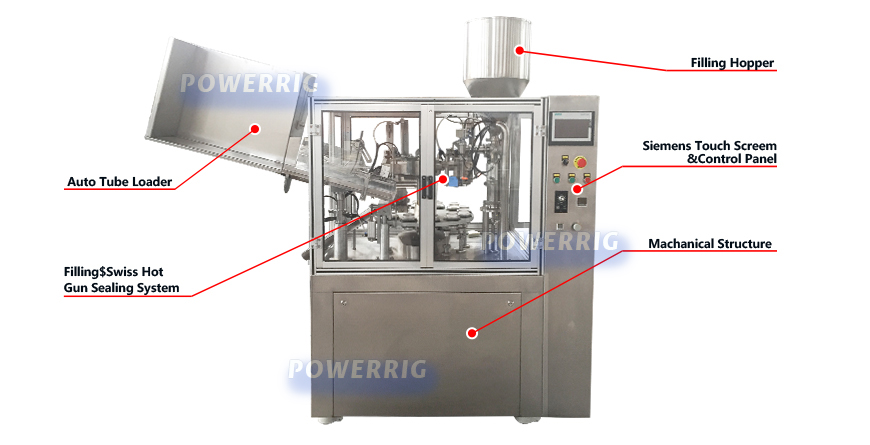

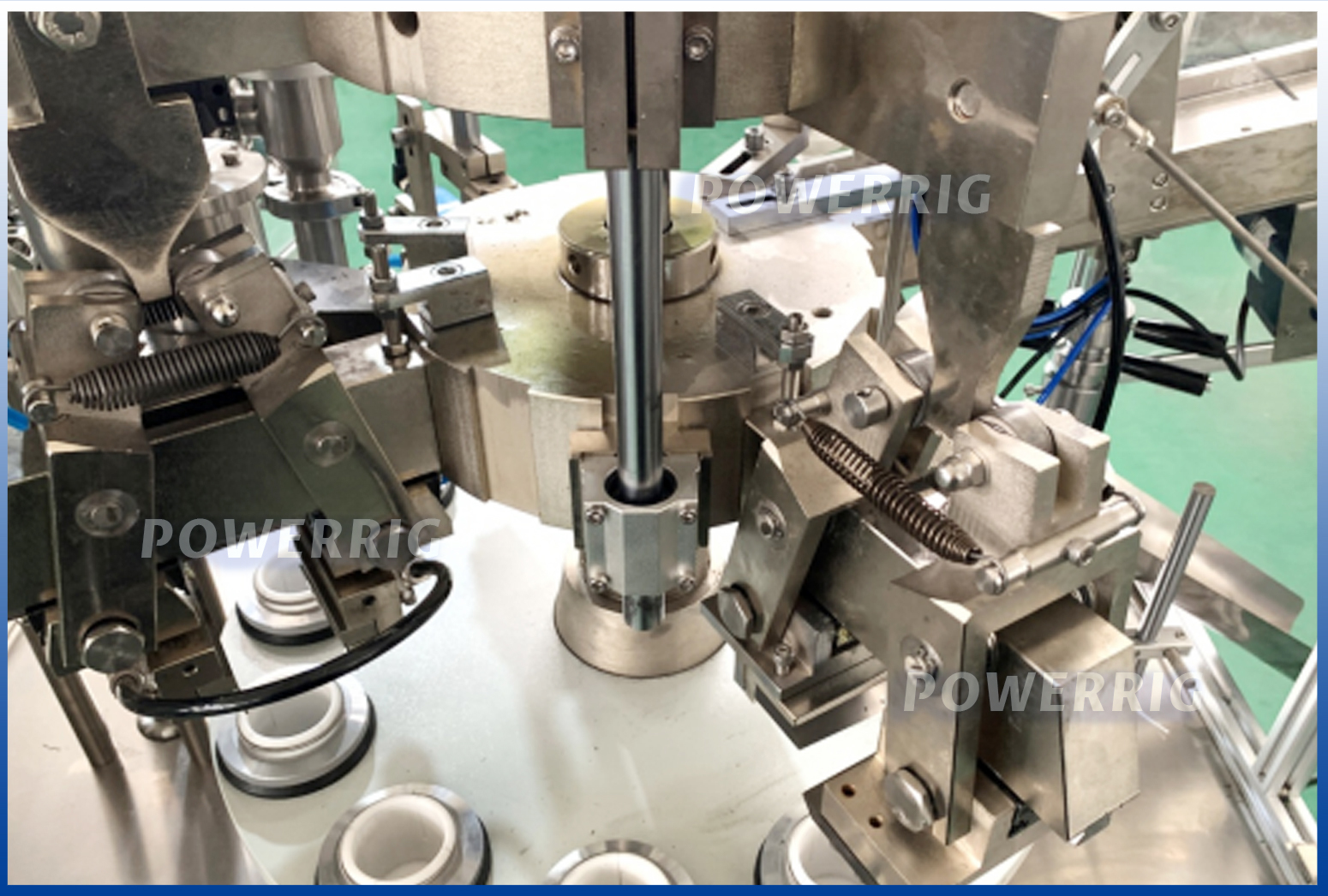

Machine automatic upload tube ,fix position, filling ,heating ,sealing ,cutting and output finish produce



-We offer our technician for oversea to install and adjust machine, do field installation guidance.

-We provide the full-lifetime warranty consult with one more two years free accessories support.

-24 hours online support, when you meet the problem we will provide video explain


Powerrig Machine is one of the toppest plastic tube filling machine, cream tube filling machine, cosmetic tube filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.








   Automatic tube filling machine,Automatic tube filling machine manufacturers,Cream tube filling machine,Cream tube sealing machine,Soft tube filling and sealing machine,Soft tube filling machine,Tu be filling companies,Tube filling equipment,Toothpaste tube filling and sealing machine,Toothpaste tube filling machine About the advantages of fully automatic flexible tube machine



Thank you for the reading this article, you can also check for: → Application ← → QC


Voltage

110V/220V/380V

Power

1.1kw

Filling Head

Diving piston filling

Air Pressure

0.6-0.8Mpa

Production Capacity

60-85 tubes/min

Filling Volume

1-300ml

Filling Error

± 0.5g

Material

SS304/316

Dimensions

1950*800*1850mm

Weight

850KG

Parts Brand

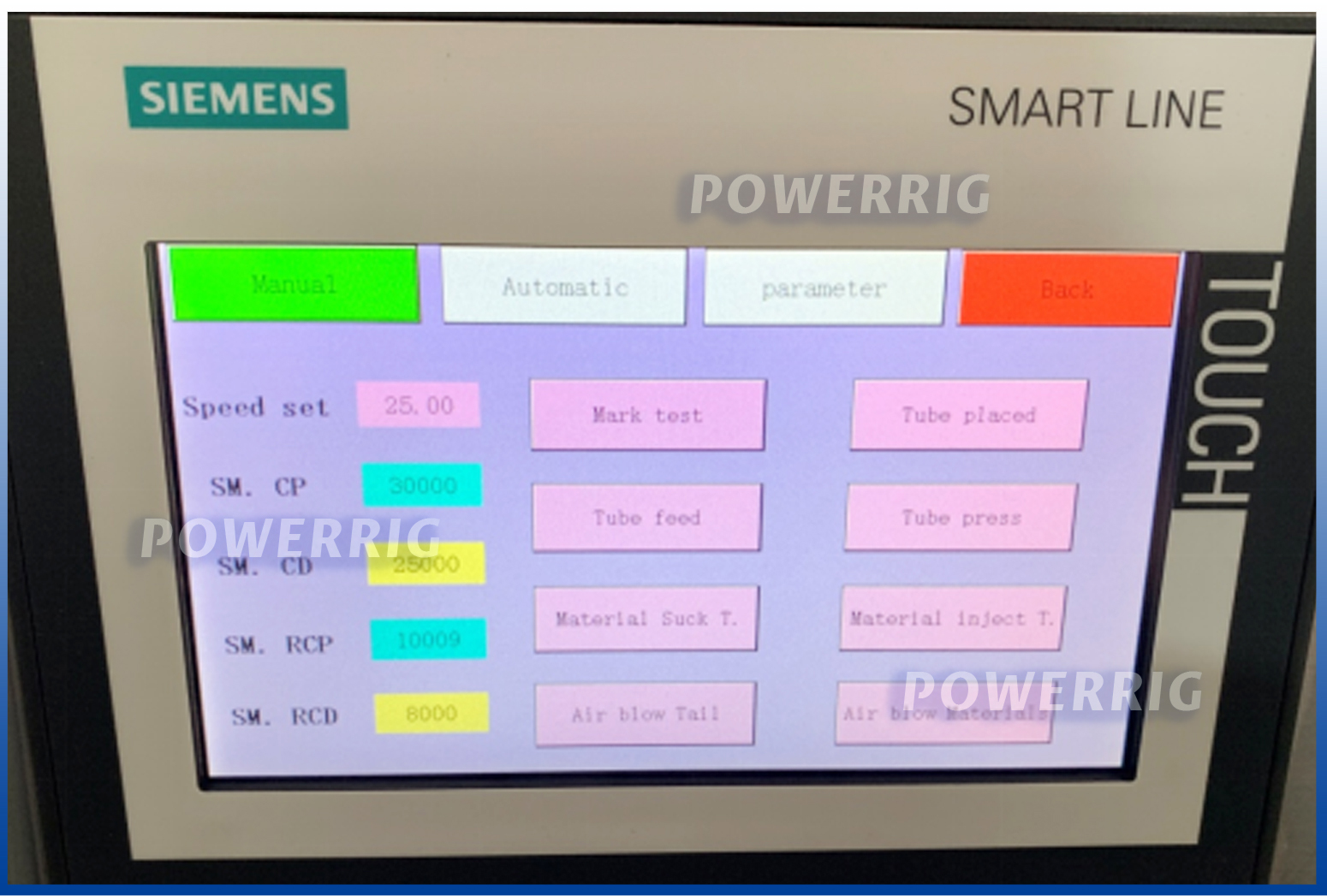

T ouch Screen

Siemens

Main Motor

Tai Wan chen Bang

PLC

Siemens

Stepping Motor

East Japan

Stepping Drive

East Japan

Sensor

Germany  Sick

Approach Switch

Germany  Sick

Intermediate Relay

Schneider

E lectromagnetic Valve

Germany  SMC

Encoder

Omron

Mixing Motor (Optional)

JSCC

Air Cylinder

SMC

Bearing

FAGINA

Button

Schneider

Air Switch

Schneider

Power S witch

Schneider

Temperature Control

Schneider
