Tea Liquid Can Filling Seaming Machine ( Speed 1000-2000 cans per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
Powerrig 12-1 tea coffee juice can filling seaming machine adopts normal pressure filling system which is applicable for fruit juice, cold brew coffee, energy drink, herbal tea, alcoholic beverages and other canned non-carbonated drinks (Cold filling temperature at 0-4 degrees Celsius or hot filling temperature at 80-85 degrees Celsius.)

Powerrig  12-1 cold tea coffee juice can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.

It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small beverage plant.


Powerrig Machine is one of the toppest tea filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.





Inline can rinser

The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.










Liquid nitrogen doser

Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

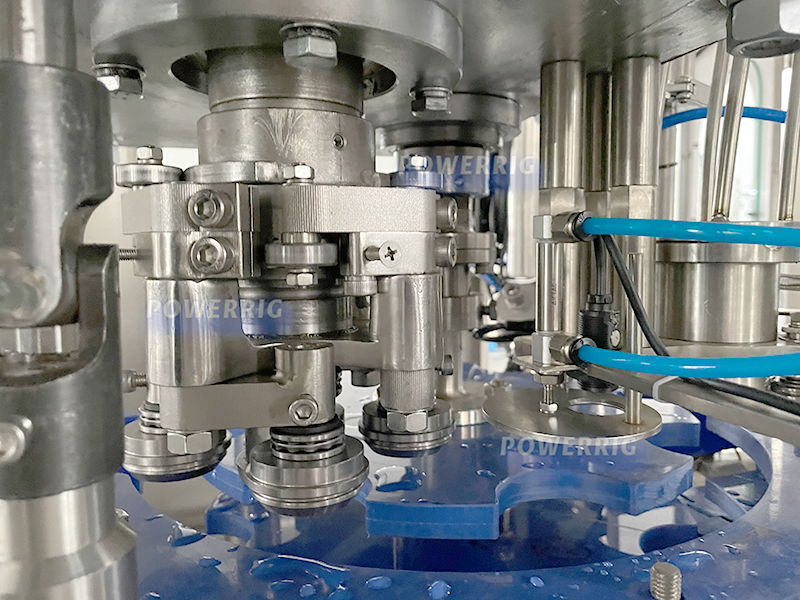

Aluminum lid seaming system

The “Powerrig” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.













Power

1.1Kw

Filling heads

12 piece

Sealing heads

1piece

Production capacity

10 00-2 0 00CPH  based on  330ml

Filling temperature

0-4  ℃

Can diameter range

Ф 40 - 90 MM

Can  height

92 -1 68 MM

Dimension

1 80 0*1 30 0*1950mm

Weight

1800Kg

Name

Brand

B utton s

Schneider  (France)

Touch screen

 Siemens (Optional)

AC  Contactor

Schneider  (France)

PLC

Mitsubishi  (Japan) / Siemens (Optional)

F requency changer

Schneider  (France)

Air cylinder

AirTAC  (China) / FESTO (Optional)

Solenoid valve

AirTAC  (China) / FESTO (Optional)

Relay

Omron  (Japan) /  Schneider  (France)

photoelectric sensor

Autonics  (Korea) /  Omron  (Optional)

Proximity switch

Autonics  /  Omron  (Optional)
