Tea Filling Bagger Machine
Tea Bagger Machine ( Speed 30-40 bags per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

The machine is suitable for packing such products as broken tea,coffee,ginseng essence,diet tea,health-caring tea,medicine tea,as well as tea leaves and herb beverage,etc.


Machine features:
1.The machine is a latest type of heated sealing packing machine , which has multifunction ,can automatically packing ,filling,cutting and lot date
2. the main future of the machine is one-time packing of the inner and outer bag , avoiding hands directly contacting with stuff materials , improving the efficiency

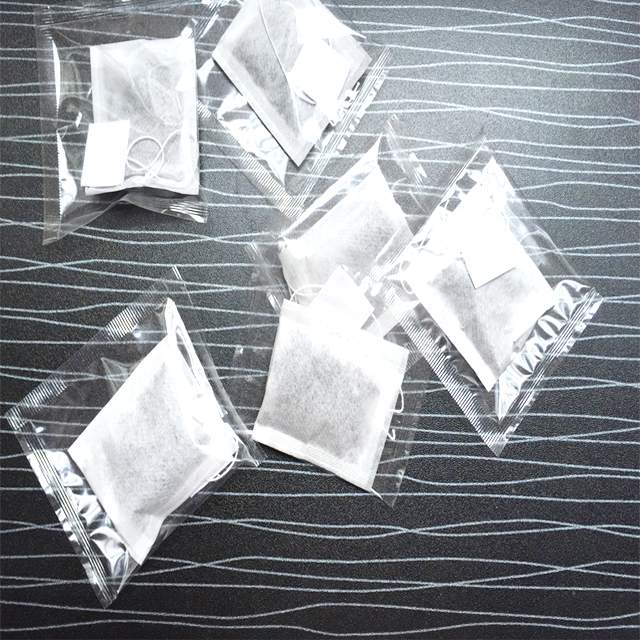

3.the inner bag is made of filter cotton paper , which can be automatically packed with thread and label

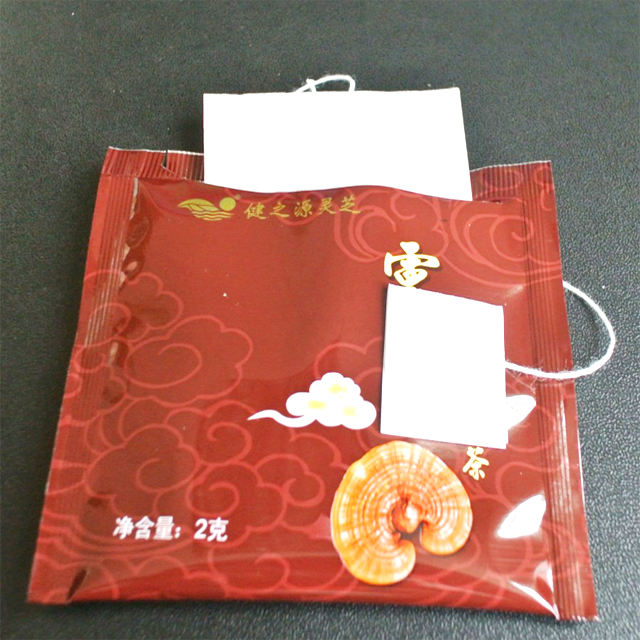

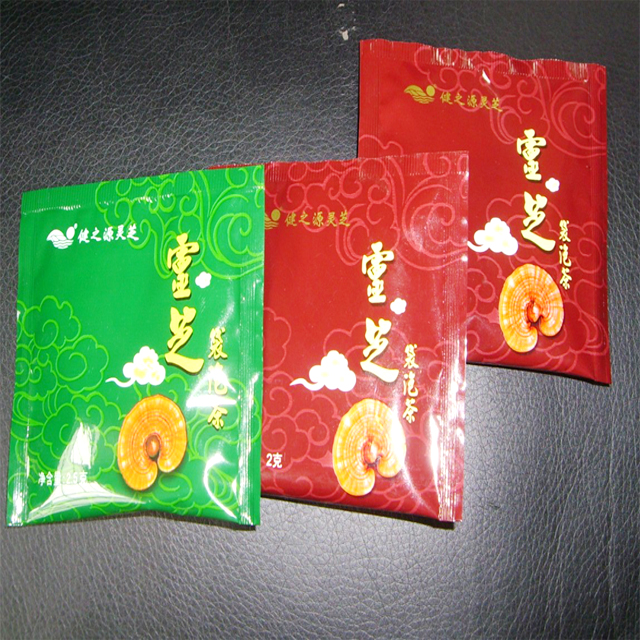

4.The outer bag is composite paper, the advantages are photoelectric location for the bag and outer bag, adjustment to the need of the content, length of inner bag and outer bag, and tag
5. the dimension of inner and outer bag can be adjusted according to the need that to achieve the perfect shape , to upgrade the appearance for the product , then add the value of it
6. Our company also provides the raw material to match with the machine


Applicable packing film:


paper/plastic, plastic/plastic /aluminum/plastic. Paper /aluminum /plastic, tea paper.  Thread. Tag


Powerrig Machine is one of the toppest tea bagger machine, tea filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

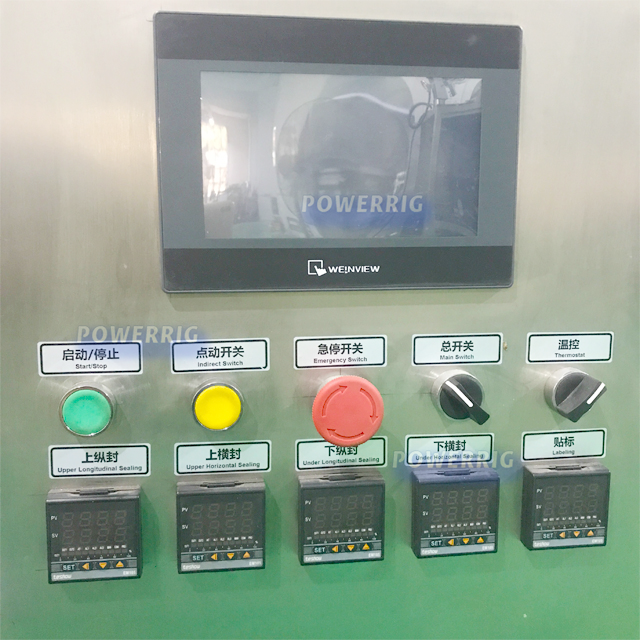

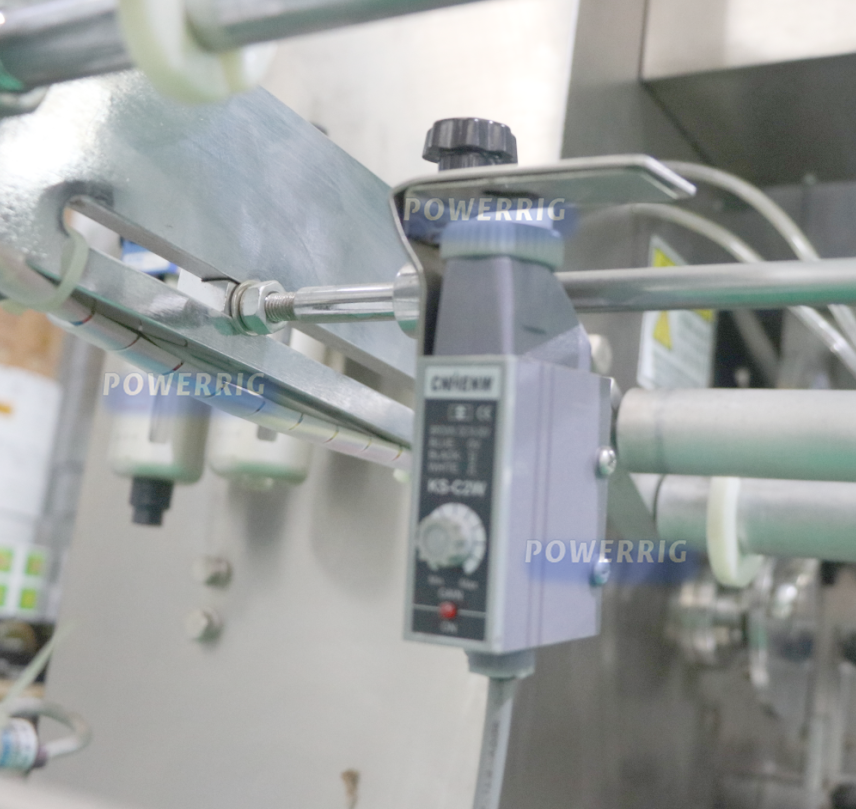

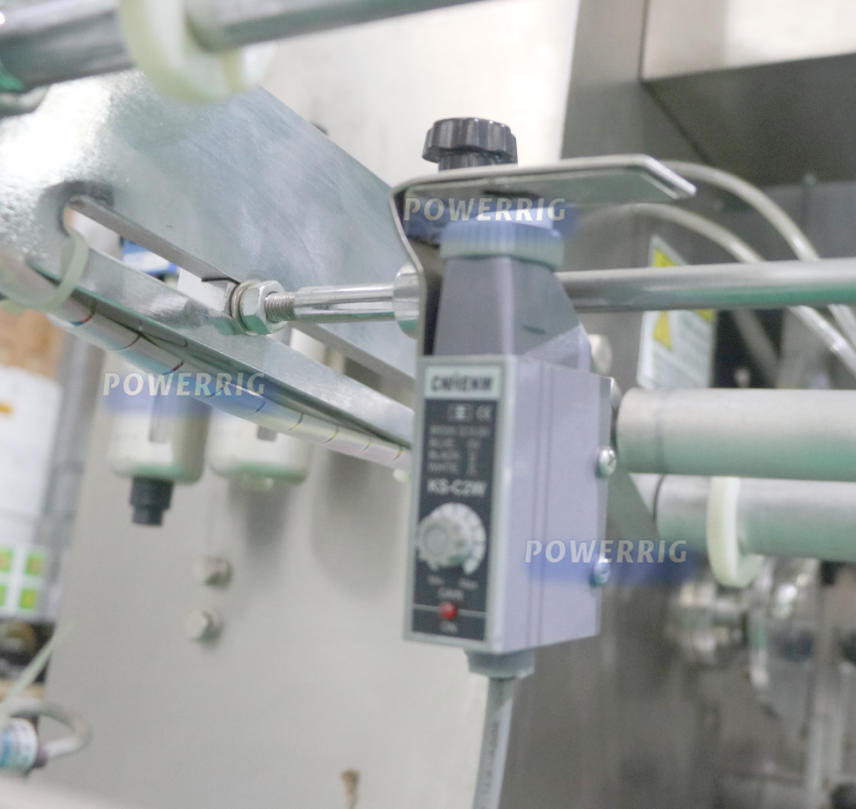

                   English Display                                   Inner Bag                                       Photo Eye











Filling arrange :

1-5g  or customed

Packing Speed:

30- 40 bag

Tag Size:

W:40-55mm , L:20-24mm

Thread length:

155mm

Inner bag:

L:50-70mm , W:50-80mm

Outer bag:

L:80-120mm , W:70-90mm

Total power:

220v/50HZ/3.7kw

Dimesion:

900x650x1700mm

Machine Weight:

500KG

No

Name

Brand

Detail

1

Main Motor

Taibang

Taiwan

2

cylinder

Yade off

Taiwan

3

The electromagnetic valve

Yade off

Taiwan

4

Relay

Schneider

Germany

5

PLC

Ceda

USA

6

Step Motr

Songyan

Japan

7

Manipulator

Goldware

Taiwan

8

Temperature table

Anto

China

9

switch



China

10

power switch button



China

11

Sensor switch button



China

12

Photo Eye

OETAI
