Syringe filling machine

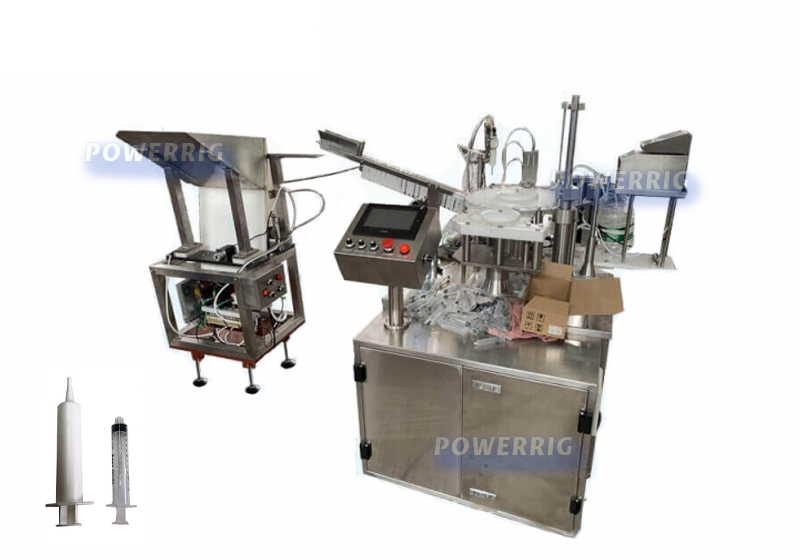

Syringe Filling Line ( Speed 3000 syringes per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

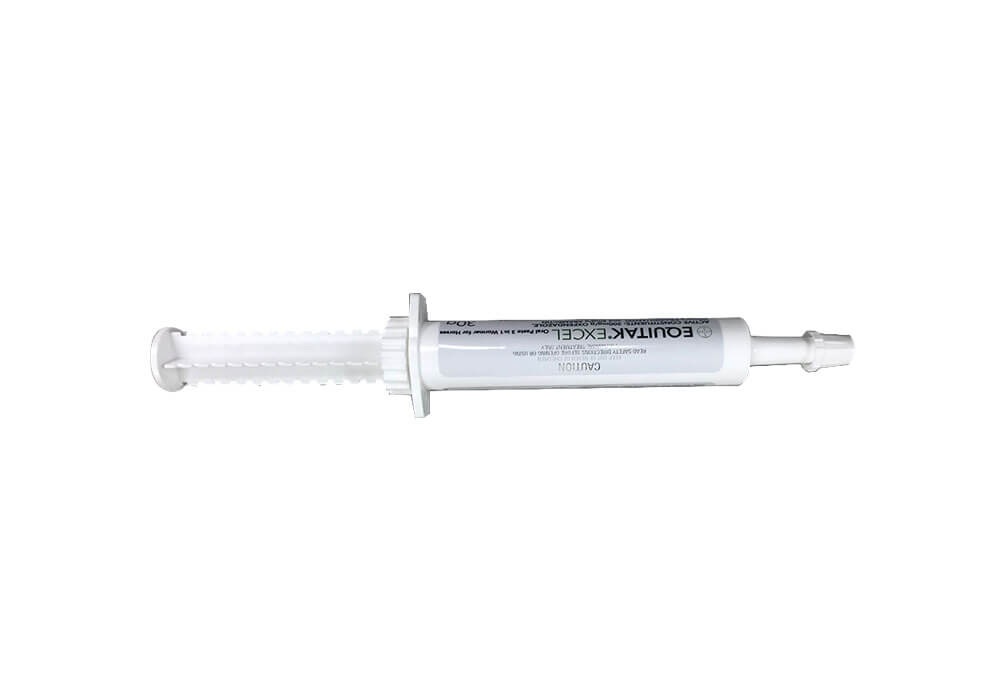

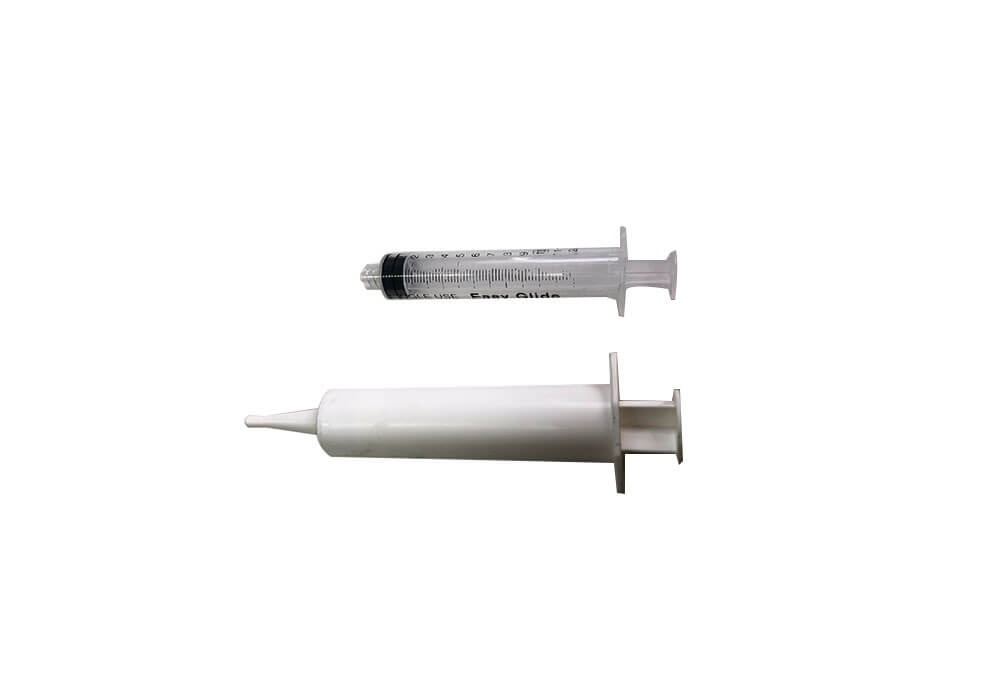

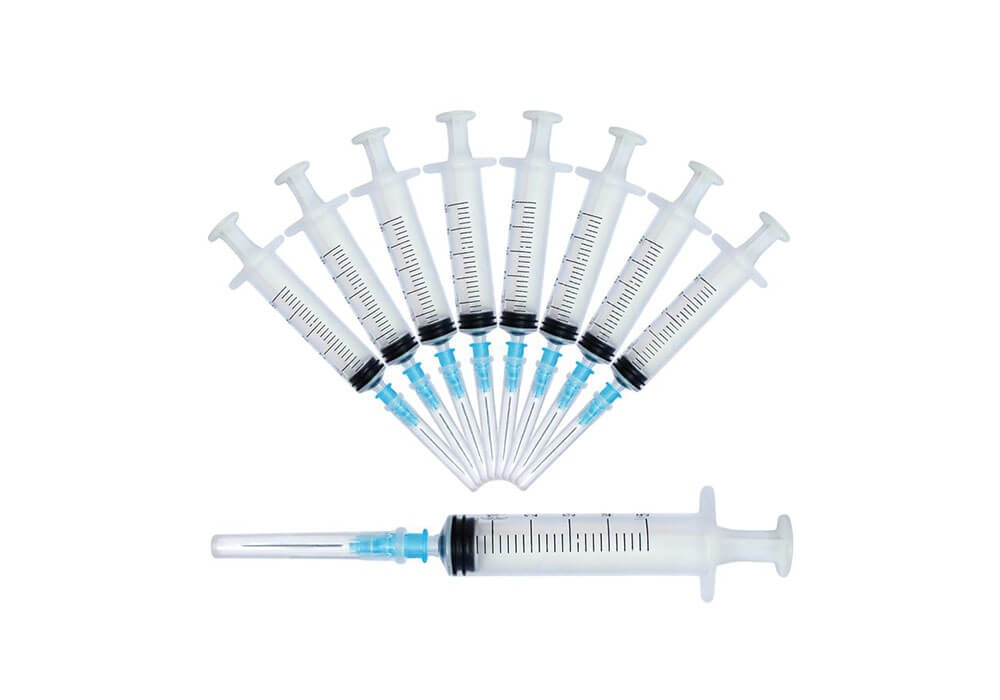

This machine suits for the plastic syringe and can fill many kinds of liquid,gel or paste.

Working progress:

Adopt cap sorter to sort the syringe(the pusher has been placed in the syringe and pushed to the bottom.).Then it will transfer the syringe to the main working station by rotary wheel.

About the filling station:

Filling by ceramic filling pump,Filling nozzle will sealed the tip of the syringe from the bottom to top by pressure filling,the piston movement will drive by the servo motor,filling volume and speed both can set and adjust on the touch screen.

About the Capping station:

The cap will transfer to the bottom of the syringe by vibrating disk, and then the cap is driven upward by the cylinder

Discharge:

The dial wheel rotates to the discharge station, and the syringe is pulled down from the dial by the discharge lever, and then the slide is slid down to collect (single slide down).


Powerrig Machine is one of the toppest syringe filling machine, prefilled syringe filling machine, sterile syringe filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.








Voltage

220V 50Hz

Motor Power

2KW

Filling speed

3000pieces/hour

Filling accuracy

+-1%

Filling volume

5-50ml

Material tank

20L(SUS 316)

Air supply

0.6Mpa

Air consumption

10 m³/h

Filling nozzle

1

Plugging nozzle

1

Touch screen

Proface(Japan)

PLC

Mitsubshi( Japan)

Frequency converter

Danfoss(Denmark)

Servo motor

Dorna

High precision ball screw

ABBA(Taiwan)

Filling pump

Ceramic filling pump(customized for gel)

Switching power

Mean Well(Taiwan)

Pneumatic element

SNS

Photoelectric detection switch

Autonics(Korea)

Proximity switch

Alif(Taiwan)

Machine surface

SUS 304

Filling nozzle

SUS316
