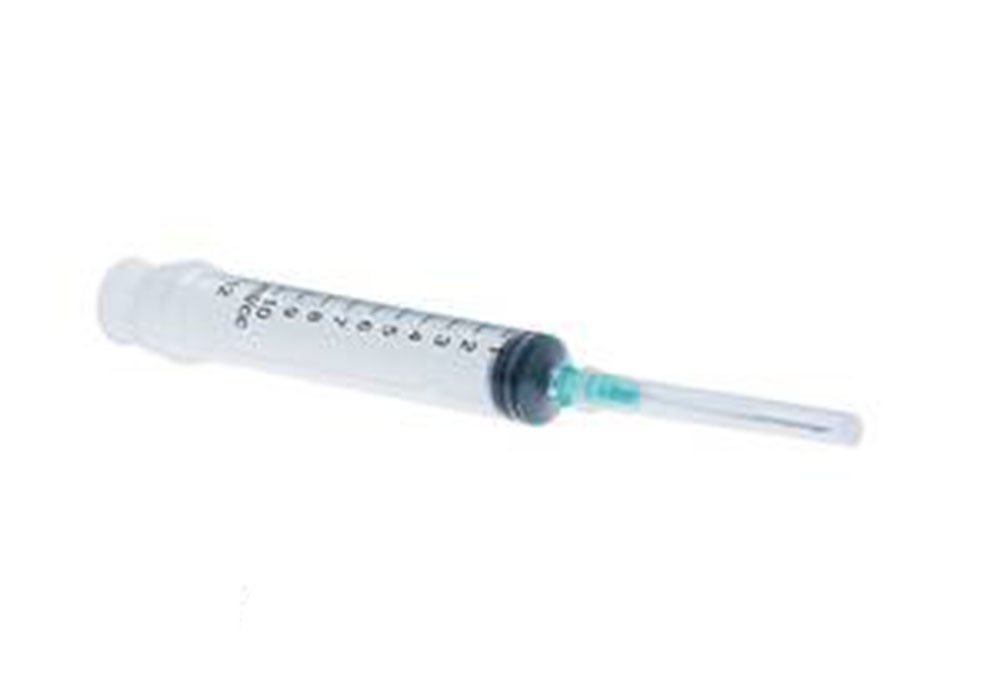

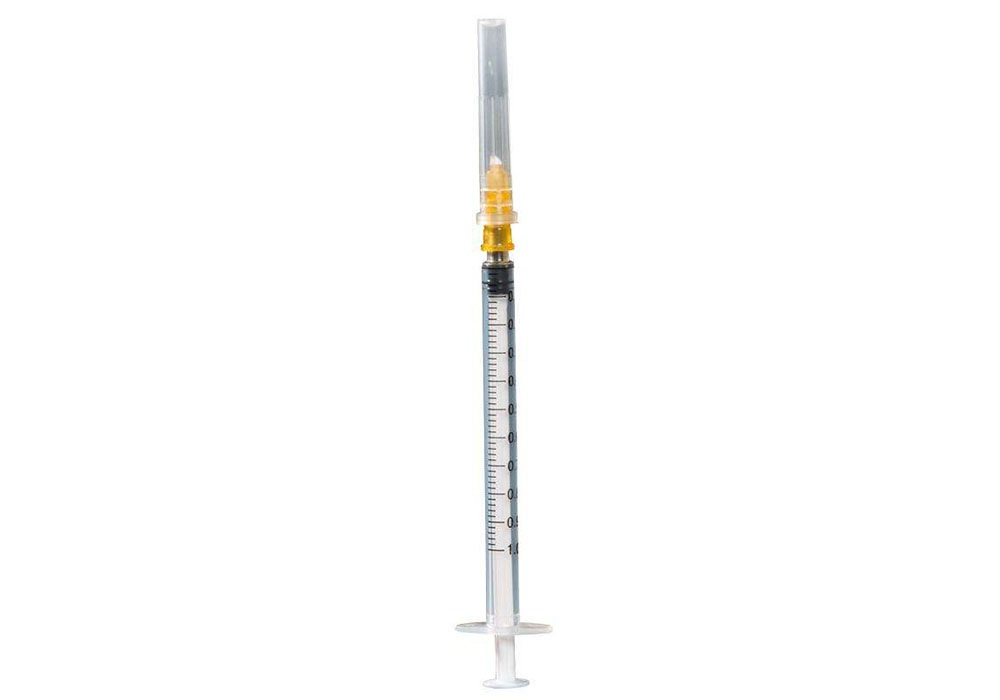

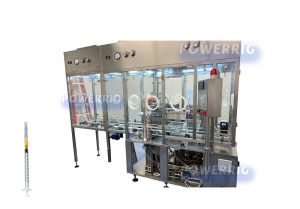

This machine is a pre-filling machine specially developed for laboratory filling pre-filling syringes. Suitable for filling and filling 1-20ml glass syringe (BD tube).

Function introduction:

Mixer syringe artificially by chute automatic filling into the thumbwheel: syringe by rows of slide down the chute, dial wheel intermittent rotation, a feeding wheel a syringe, and bring them to the corresponding work station (also can use the automatic feeding mechanism, by artificial once a hive of syringes, automatic feeding machine again, with another fee).

◆ filling of syringe: the syringe is carried to the filling station by the rotary wheel, and a single liquid filling needle is inserted into the syringe to fill and rise at the same time. During filling, the syringe is sealed for vacuuming, and the filling pump is filled with ceramic pump.

Syringe vacuum gasser: after filling syringes by dial wheel rotation to stoppering station, after finishing the oscillator stopper is go through the track to the top of the syringe, by a stoppered rod first stopper in gasser stem head, gasser rod and a vacuum body, at the same time press the syringe after sealing vacuum, then through gasser rod to the injector of liquid surface.

◆ release of finished products: after filling and filling the finished product of syringe, it can be manually collected after sliding out through the suspension of a slide.

Features:

This machine is driven by servo motor without traditional mechanical transmission.

The machine is simple in operation and reliable in operation.

Filling speed and finishing adjustment, plugging vacuum degree and time can be adjusted, suitable for various viscosity of oil, gel filling plug.

Touch screen can save multiple specifications of production procedures, after the replacement of specifications, directly call the corresponding program screen.

The machine occupies a small area and is easy to move. It is very suitable for laboratory or small batch production.

Powerrig Machine is one of the toppest prefilled syringe filling machine, syringe filling machine, sterile syringe filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.



•



Filling volume	1-10ml (can customize)
Production capacity	5000 pieces/HOUR (Determined according to the consistency and loading of the gel)
Filling nozzle	5 piece ( can customize according to production speed)
Plugging nozzle	5 piece ( can customize according to production speed)
Filling accuracy	+/-1.5% - +/-2% (filling paste gel)
Power	3.5kw
Air compressor	0.2-0.6 Mpa
Size	2500x1350x1600

Servo motor, driver	LG
Display	pro-face
Motion controller	beofu (Germany)
Circuit breaker, contactor	Siemens or schneider
Miniature relay	panasonic
Switching power supply	Taiwan mingwei
Photoelectric detection switch	otto nix or easy to measure
Filling pump	ceramic pump
Infusion needle, plug track, oscillating bucket, plug rod	316L stainless steel
Machine surface	304 stainless steel drawing plate
Dial wheel	white POM
Door opening cover	plexiglass
Vacuum pump and vacuum system	the equipment comes with itself

•
•
•
