Small bottle filling machine

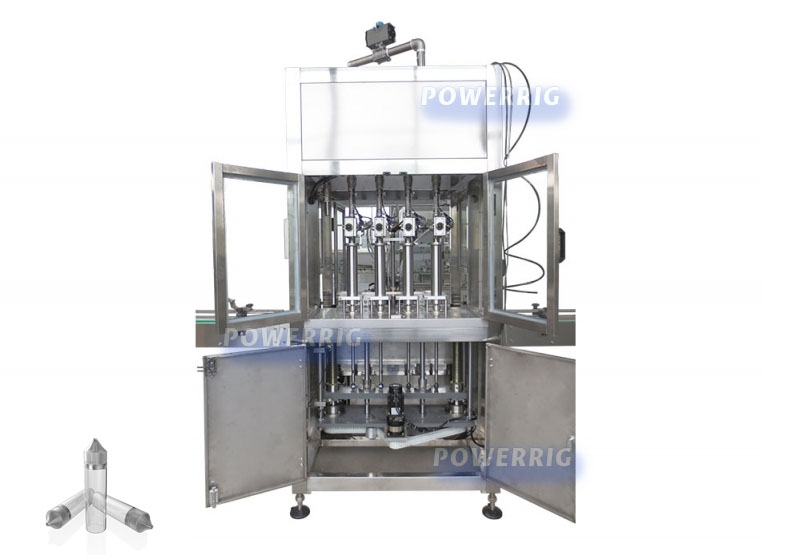

Small Bottling Machine ( Speed 1-2000 bottles per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This filling machine is suitable for:

Widely used in food, chemical industry, medicine, cosmetics, pesticides and other industries, suitable for liquid filling, such as plastic bottles, glass bottles, gorilla bottles and so on.


This machine function is:

1.      Automatic conveyor belt running

2.      Automatic bottles feeding

3.      Automatic four filling heads and filling

4.      No bottles no filling

5.  Can be customized according to different bottles shape and size


This machine is suitable for filling aqueous solutions and cream products, particularly for high viscosity materials (such as cosmetics, seed coating agent, motor lubricating oil, suspending agent etc.) the effect is obvious.


Using PLC programmable control, with touch screen and man-machine interface system; automatic bottle feeding, automatic filling, automatic send bottle out; driven by a servo motor, double screw drive, control the movement of the piston rod to ensure the stability of the filling, filling precision higher.


Used double liquid box and is provided with a filter plate, mechanical three-way easy to clean and replace the material more convenient. It can be with the capping machine, labeling machine supporting the formation of whole production line.

It integrates light, machine, electricity and gas into one body. Is an easy to operate filling machine. With stable and reliable operation, high production efficiency, strong adaptability.


Powerrig Machine is one of the toppest small bottle filling machine, small liquid filling machine, small bottling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.







Filling Nozzle

4Pieces

Filling Volume

50ml-500ml

Filling Speed

≤ 2000bottle/hr base on 100ML

Filling Form

Piston Pump Type (Servo Control)

Accuracy

≤± 3 ‰

Suitable Bottle Diameter

Ф 40mm- Ф 200mm

Material

Surface: SUS304

M a terial Contact Part: SUS316

Control

PLC and Touch Screen

Air Pressure

0.55Mpa-0.65Mpa

Power

3Kw

Voltage

380V/50Hz 3phase (Can be customized)

Machine Size

2000*1000*2500MM(L*W*H)

Weight

1500Kg


Name

Brand

Press-button

Schneider

Magnetic Contactor

Schneider

Relay

Omron

Frequency T   r   an  sformer

Mitsubishi

Mot   or

JSCC Made in Germany

Air C   y   l   inder

Airtac

Solen   oid V   a   l   v   e

Airtac

Speed R   e   d   ucer

Made in Taiwan

Bear   ing

NSK

PL   C

Mitsubishi

Touch S   creen

Mitsubishi

Fibre-optical

Autonics

Switching Mode Power Supply

NWELL

Step M   otor

SNAYO Made in Japan
