This filling capping machine is suitable for:

E-liquid ,essential oil , VG PG seed oil into various round bottles with the filling range from 5-50 ml.

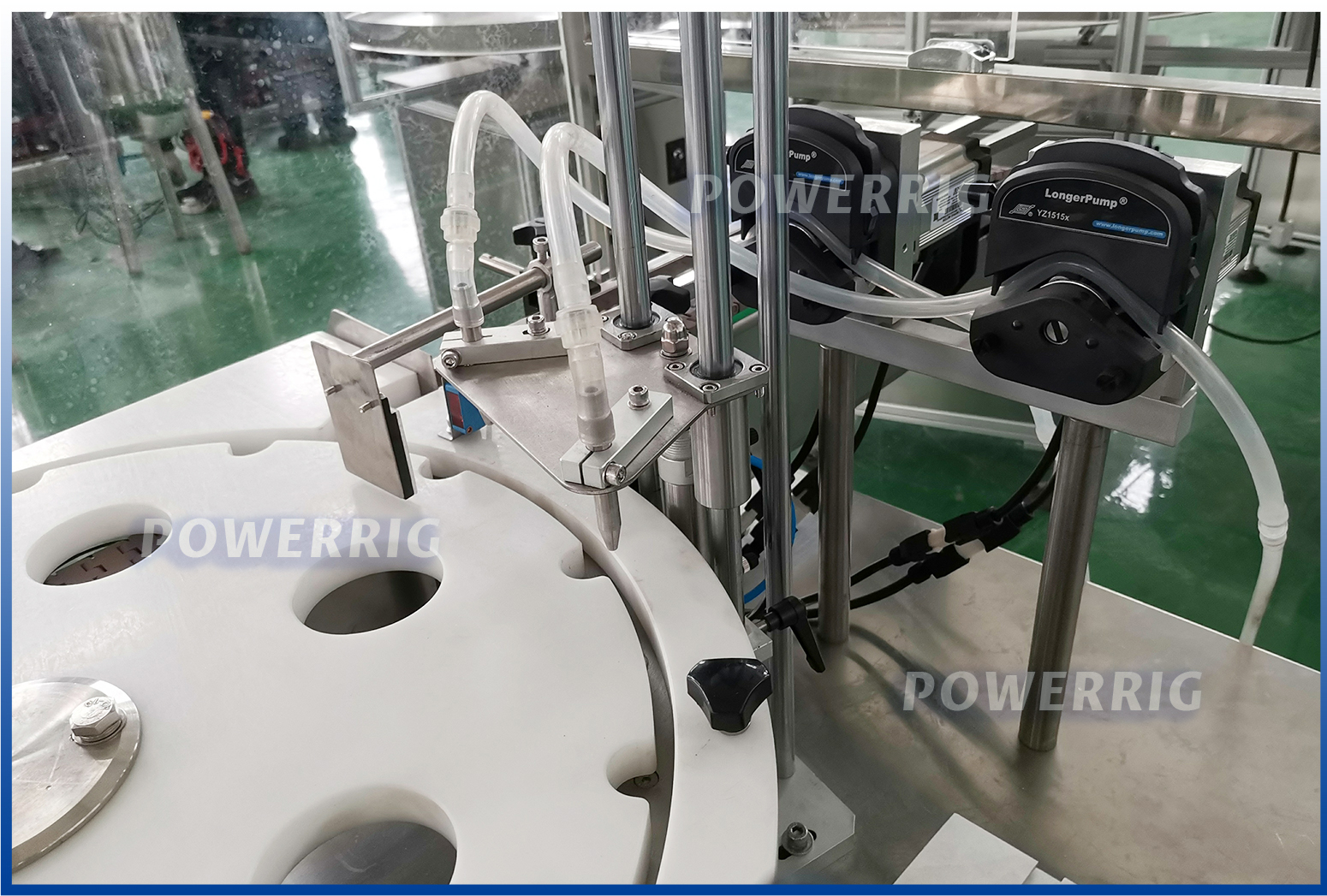

High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; Peristaltic pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. The machine with advantage of high position .

1. Man-machine dialogue system setting, visual convenient operation ,accurate filling level

2. The mainframe running speed is step frequency conversion.

3. The product quantity can be controlled.

4. Multi-failure prompt function (such as depression, no filling and no inserting plug etc).

5. Automatic stop function, if there is no filling, no cap in any rail, it may stop automatically.

Powerrig Machine is one of the toppest e- liquid filling machine, essential oil filling machine, dropper bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

•
•
•
•



•



Filling Volume	5-50ml
Capacity	30-40bottles/hour
Filling Precision	≤±1%
Power Supply	380V/50Hz (Can customize)
Capping Rate	≥99%
Stoppering Rate	≥99%
Air Supply	1.3 m3/h 0.4-0.8Mpa
Power	2.0Kw
Weight	850kg

Name	Brand
Button	Schneider
AC Conta ctor	Schneider
Relay	Schneider
Frequency Transformer	Taian
Motor	Qi peng
Air Cylinder	AIR TAC
The electromagnatic valve	AIR TAC
Bearing	NSK
PLC	Schneider
Touch Screen	Schneider
Photoelectric Detection	Sick

•
•
•
