Small bottle filling machine
Automatic Perfume Filling Capping Machine ( Speed 20-30 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

A semi-auto soft glue filling and capping machine is mainly used for glass bottle perfume filling and capping.


This machine is auto negative pressure vacuum perfume filling machine , auto bottle detecting( no bottle no filling ), filling for three times. Auto dropping of crimp pump cap, circulation of spray bottles’ die set, It is wide adaptability which can meet to requirements of different dimension and filling volume of containers.


This filling machine can be divided into automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.


Advantage :

1. Vacuum back-suction filling (double-jackets filling head)

2. Suction liquid back control filling liquid level

3. Pre-tighten up and regulate position of pump cap head.

4. automatic filling and capping , no bottle no capping/no filling

5. capping  head twist and torque is adjustable



Suitable:

Glass perfume bottle with metal spray cap

Glass perfume bottle with inner plug and outside screw cap

Plastic perfume bottle with plastic spray cap

Plastic perfume bottle with inner plug and outside screw cap

Machine could customized according to different type bottle and caps


Powerrig Machine is one of the toppest perfume filling machine, perfume bottle filling machine, small bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

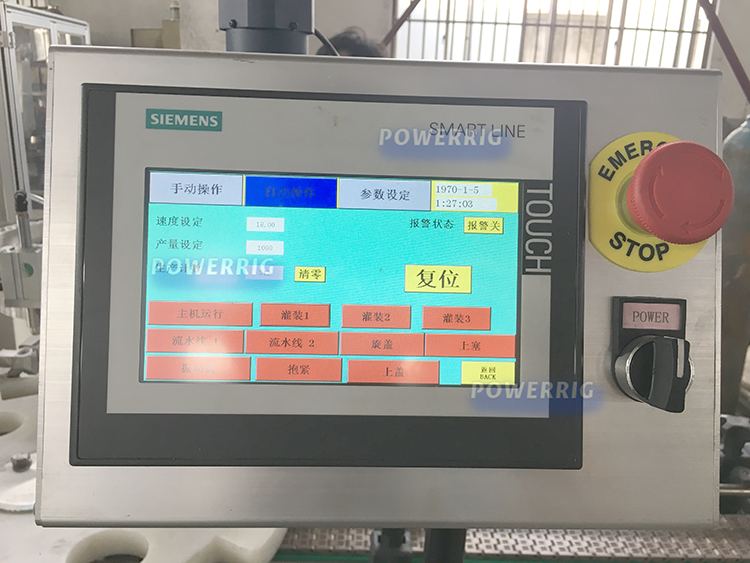

 Control panel by Siemens touch screen
The control panel on the filling machine is the core of the machine,it consists of touch screen,power switch, emergency button You just need to press the corresponding button and the machine will follow the correct program.
An Alarm Screen will also be included on automatic filling equipment to notify packagers when there is an issue with the filling equipment or the packaging line in general. In addition to notification, the screen can assist with identifying the issue if the same is not immediately obvious.

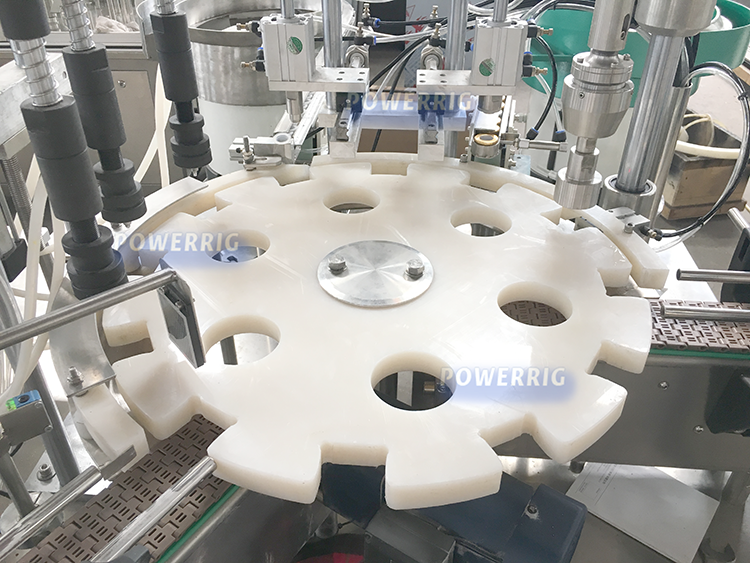

The main platform

The picture includes chuck, negative vacuum filling head,and automatic lid feeding and lid tightening stations.They are clear function and easy to clean.
Among them, the chuck is used to fix the filling container and drive the container to move to the filling capping and other stations. The circular design can save space while setting up multiple positions, so that the filling process is time-saving and efficient
We can customize this turntable, filling head, screw cap and so on

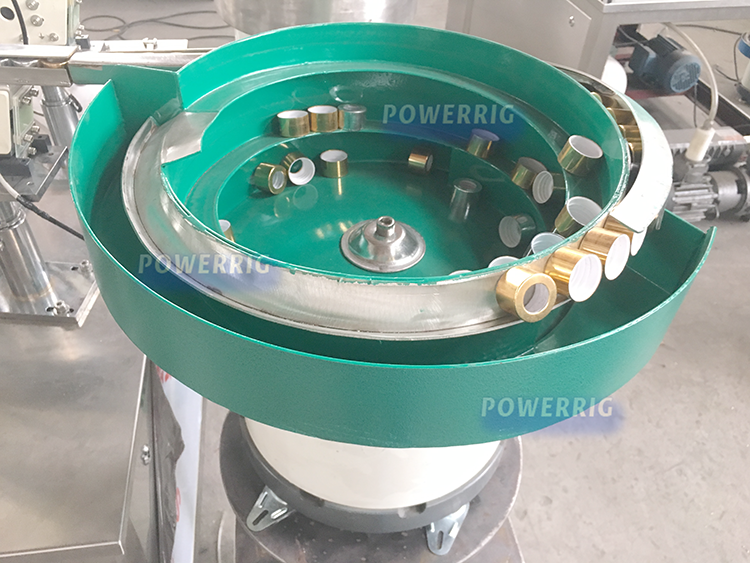

cap loading automatically
cap feeding cage with vibrating piate is connected to a pipe that carries the cap ,They automatically arranges the cap and deliver the cap.
In this way, the bottle is covered in a consistent process, reducing the manual contact with the bottle process, and ensuring better hygiene,At the same time, labor costs are reduced
















Filling nozzle

2 piece one piston filling nozzle one vacuum filling nozzle

Filling volume

50-150ml

Filling form

Piston and vacuum filling

Filling speed

20-30 bottle per min

Filling accuracy

+/- 1mm

Material tank / bottle table

25L / 600*300 mm length and width 2 pieces (input and output)

Controller

PLC+ touch screen

Machine Filling nozzle tank

SUS 304

Air pressure

0.6-0.8Mpa

Conveyor belt

82mm SUS 304 Chain belt 750mm +/- 25mm

Conveyor motor

370W adjust transducer motor

Power

1Kw 220v  single phase 5 wire

Setup component


Brand

Rack material

SUS 304

Tank, nozzle, liquid touches place

SUS 304 / medical silica gel

Air componnet

Airtac

Touch screen

Siemens Germany 21 cm color

Sensor

LEUZE Germany  or  SICK

Relay & air switch

Schneider French

Transducer Motor

Schneider French

Conveyor material

82mm width SUS 304 Chain belt

Conveyor motor

AC motor  China brand

Filling form

Piston filling (80-90) and vacuum filling (for accuracy)

Turnable tray motor, capping motor,

China brand

Explore parts

SUS 304, Positive oxidation treatment aluminum alloy

Electroplate No.#45 steel and plastic.

Vacuum pump

China brand
