High temperature hot filling machine
Yogurt Filling Machine（Plastic Cup Speed 600-800 cups per hour）
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

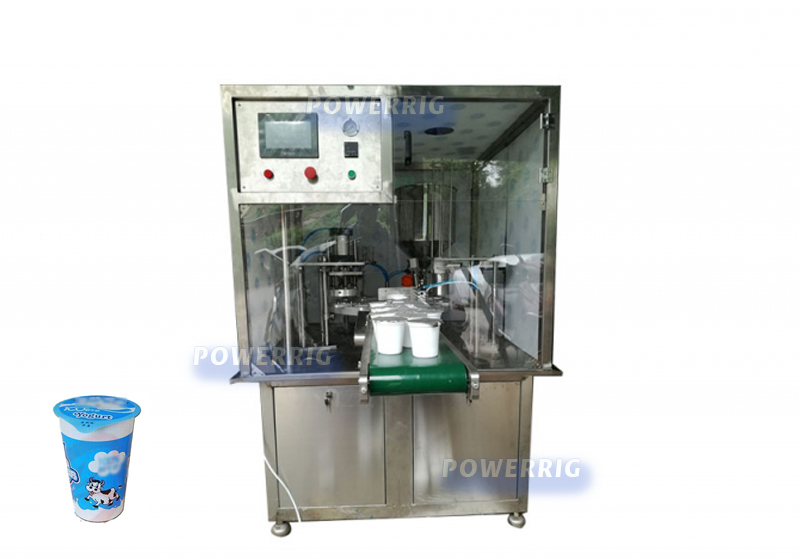

This V01 automatic small glass filling machine adopts a piston cylinder to fill the material in the glasses. It is widely used in the food, chemical, medical, cosmetic, agrochemical industry, applicable for filling liquids, especially for high viscosity materials and sparkling liquids, such as: yogurt, sauce, jam, soy sauce, tomato sauce, honey , butter, lubricating oil, etc. The machine adopts PLC control, according to the filling cup, the fixed discharge mouth, the rest of all operations can be completed on a touch screen. In addition to having common advantages in the automatic piston filling machine, the range of filling material was also expanded. Just as filler material contains particles, long strips of solid content can also be a very effective filler.


1. Available with standard conveyor or with pucks for unstable cups


2. Flexible design


3. Very fast and easy changeover of format size


4. Docking filling station model available


5. Anti-dripping filling nozzle


About the machine use problem, after the sales,


Powerrig Machine is one of the toppest cup filling machine, cup filler, cup packing machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.








Diameter

1100*1100*1600mm

Weight

350KGS

Power

2 KW

Voltage

110V/ 60Hz 1P

Air pressure

0.6-0.8Mpa

Capacity

600-800 pcs/hour

Air consumption

0.6m³/min

Heating type

electrical heated

Working position

6

Machine frame

SUS 304

Item

Brand

PLC

OMRON

Touch Screen

WEINVIEW

Motor

DINGYI

Magnetic Valve

JELPC

AC Contactor

SCHNEIDER

Temperature Control

SIMP

Relay, Circuit Breaker

DELIXI

Divider

REP

Pneumatic Component

AKS
