Plastic bottle filling machine
Automatic 4 Head Plastic Bottle Piston Servo Filling Machine ( Speed 1-2000 bottles per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This 4 heads piston plastic bottle filling machine main cans used to filling plastic bottle ,glass bottle ,cans ,jars and different package ,widely used in Daily chemical industry, Cosmetic, food industry ,high viscosity materials, shampoo, hair condition cream, hand cream dish washing liquid and so on, the effect is obvious. Adopt servo motor to drive, Double-ball screw   rod   to transmission. Ensure piston movement stable. Filling  volume  stroke  have  high precision So can reach high filling accuracy

1.  Adopt PLC programmable control system with touch screen interface.

2. Automatic bottle feeding, automatic filling, automatic bottle.

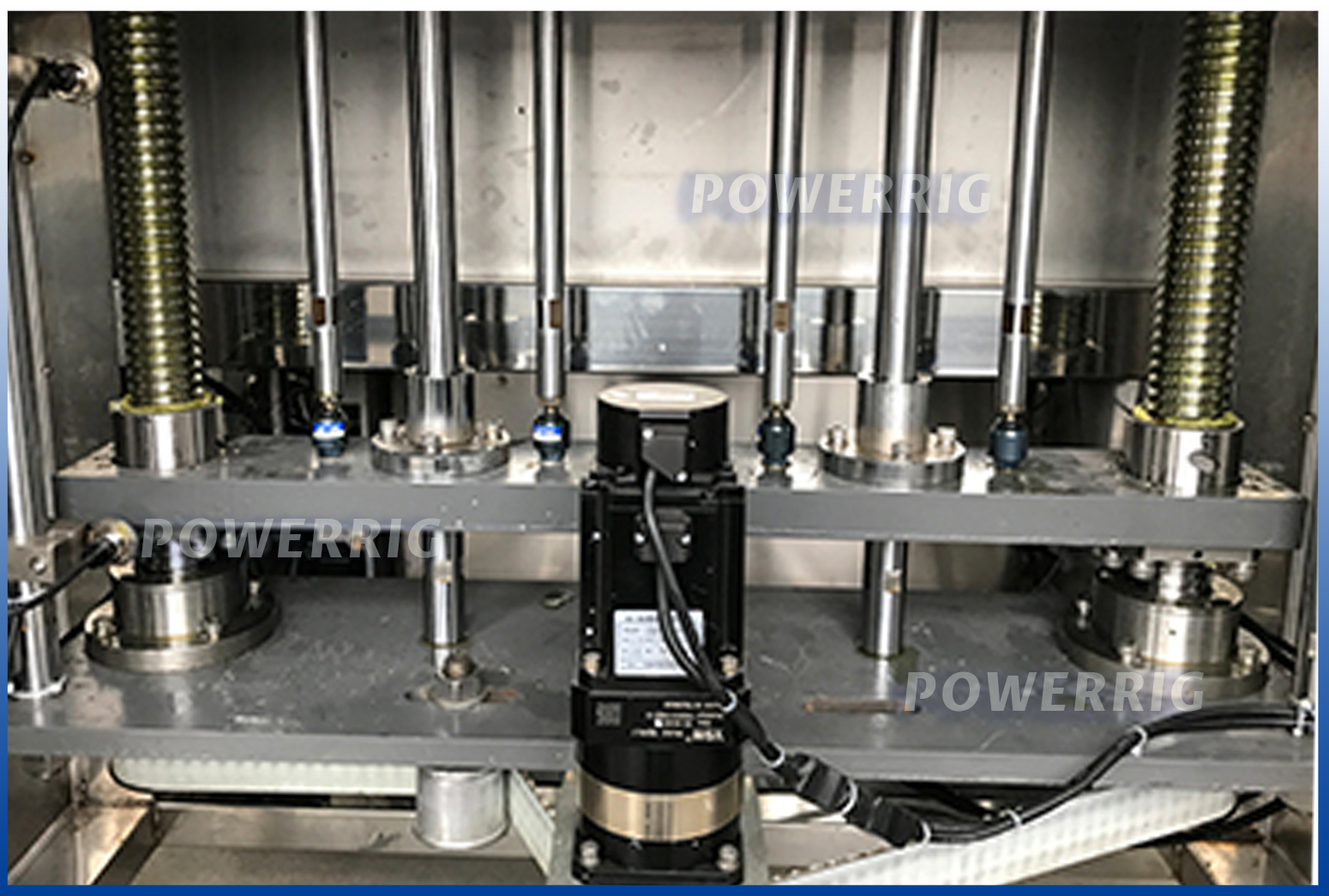

3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.


4. Adopt double-ball screw rod filling the filling nozzle dive

5. It can be used with capping machine, labeling machine supporting the formation of the production line

6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7. Having a stable and reliable operation, high production efficiency, strong adaptability


Powerrig Machine is one of the toppest cream filling machine, gel filling machine, paste filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.









Thank you for the reading this article,

you can also check for:

→ Application ←


Filling Nozzle

4Pieces

Filling Volume

50ml-500ml

Filling Speed

≤2000bottle/hr base on 100ML

Filling Form

Piston Pump Type (Servo Control)

Accuracy

≤±3‰

Suitable Bottle Diameter

Ф40mm-Ф200mm

Material

Surface: SUS304
Material Contact Part: SUS316

Control

PLC and Touch Screen

Air Pressure

0.55Mpa-0.65Mpa

Power

3Kw

Voltage

380V/50Hz 3phase (Can be customized)

Machine Size

2000*1000*2500MM(L*W*H)

Weight

1500Kg

Name

Brand

Press-button

Schneider

Magnetic Contactor

Schneider

Relay

Omron

Frequency Transformer

Mitsubishi

Motor

JSCC Made in Germany

Air Cylinder

Airtac

Solenoid Valve

Airtac

Speed Reducer

Made in Taiwan

Bearing

NSK

PLC

Mitsubishi

Touch Screen

Mitsubishi

Fibre-optical

Autonics

Switching Mode Power Supply

NWELL

Step Motor

SNAYO Made in Japan


Filling Machine
