Plastic bottle filling machine
Automatic 502 Glue Filling Capping Machine ( Speed 30-60 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

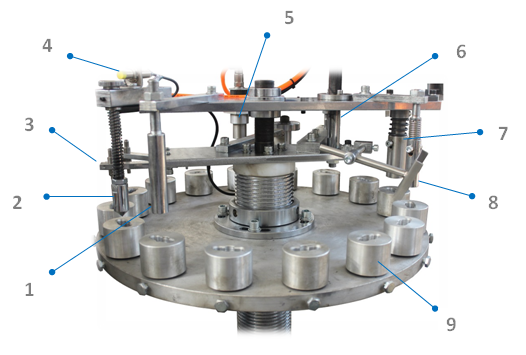

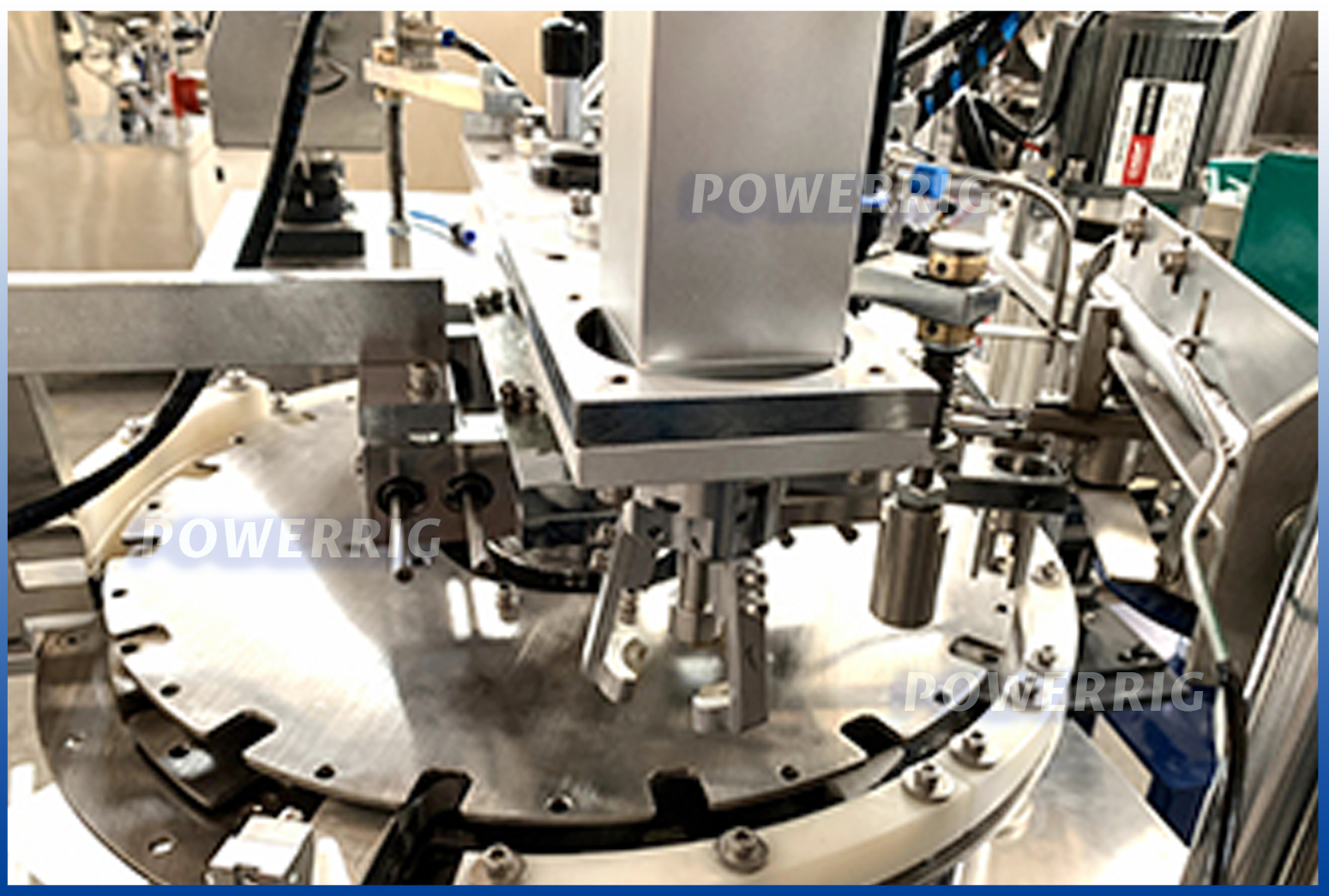

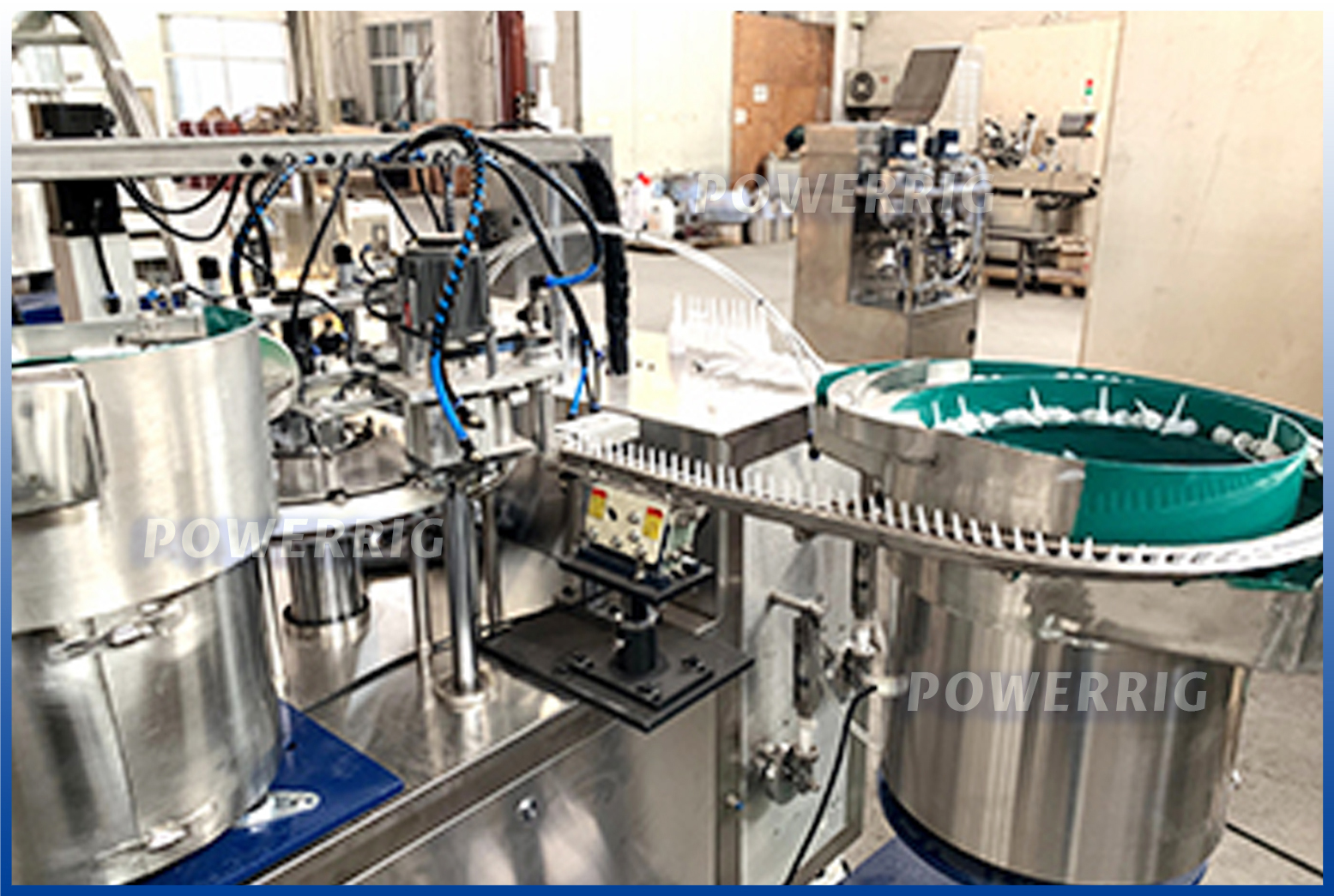

This machine adopt high configuratin brand parts, steps from (manual load the bottle into the molds, use this to correct the bottle positions, also have automatic one-load the bottle automatically), filing the material into the bottle, Manually load the cap or load the glue cap automatically and then screw the caps of bottle with the screw head. The vibrating plates would be customized based on customer’s cap. Two vibrating disk would be used for inner plugs and outer cover.

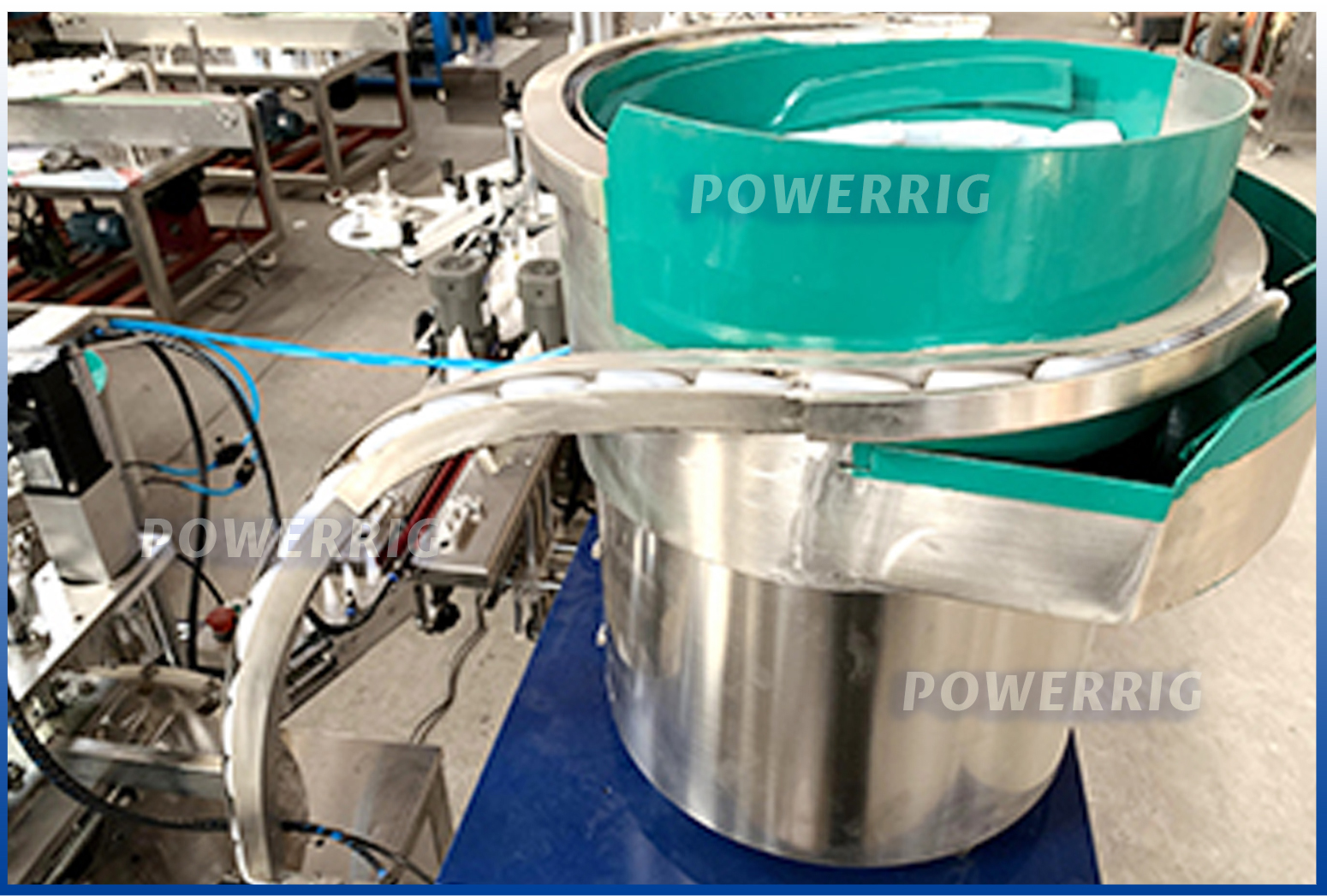

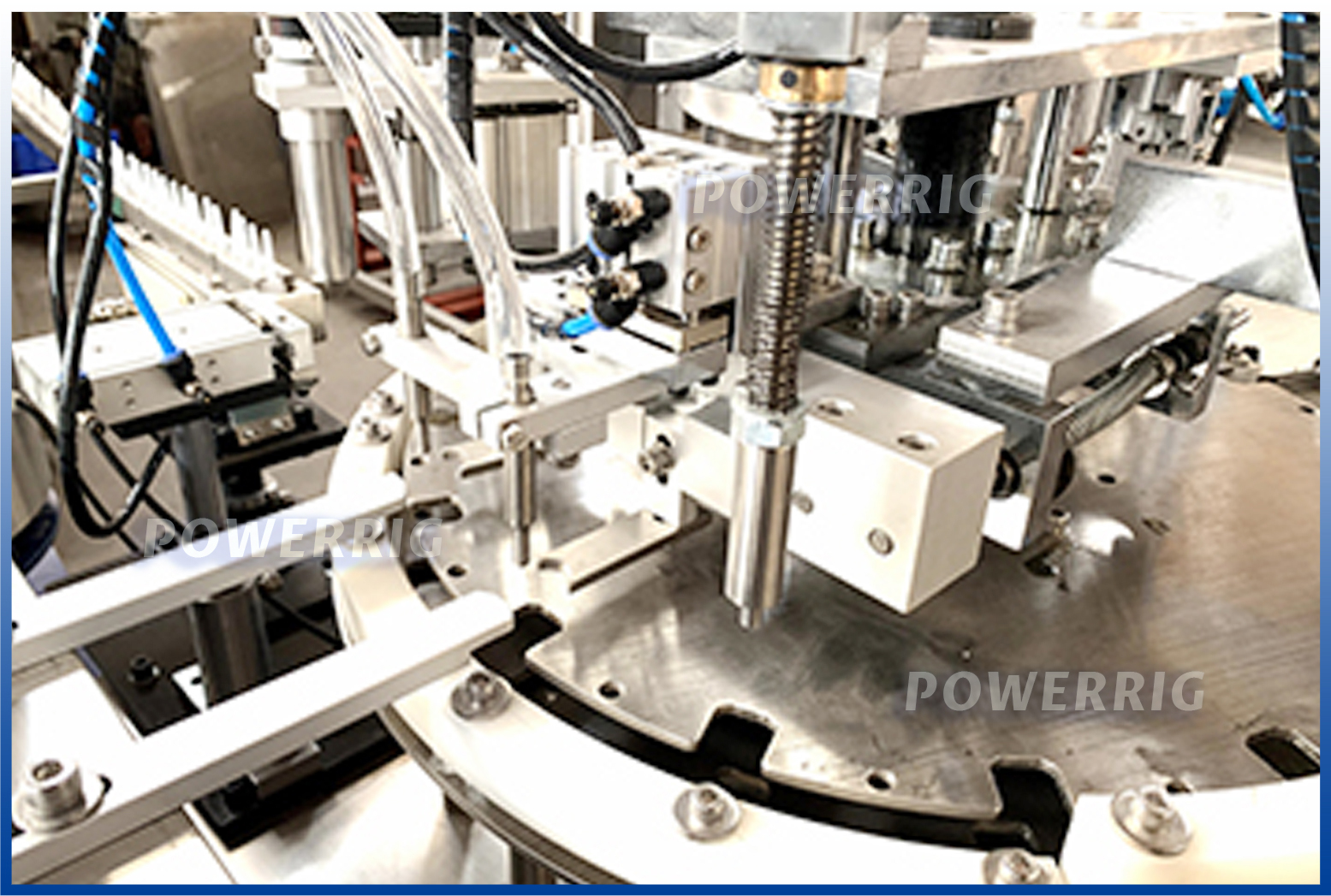

This machine speed can reach at least 30-60 bottles per minuter based on bottle material and filling volume. Adopt the vibrating disk to convery the cap. Special motor to screw the cap and can ensure the lid tightness. Use photoelectric eye to detect whether the bottle is missing, automatic alarm, no bottle no filling, no cap no capping. We guaranteed the machine quality. Pls don’t hestitate to contact me if you have any interest.

Powerrig Machine is one of the toppest glue filling machine, adhesive filling machine, super glue filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.









Power

220V/50Hz

Motor

2.5Kw

Filling Quantity

1-50ml

Capacity

30-60 bpm

Gas Consumption

0.5-0.6 m³/min

Heating Power

400W

Air Pressure

0.5-0.8Mpa

Precision

±1%

Tube Socket

16

Vibrating Tray

3 pieces

Filling Form

Gravity Filling

Cap Covering

Mechanical Arm

Parts

Brand

Touch Screen

TECO

Relay

OMRON

Air Cylinder

CNCO

PLC

Siemens

Proximity Switch

Qianwei

Motor

Shangdong(China)

Variable-frequency Drive

TECO

Vacuum Graduator

CNCO

Solenoid Valve

SMUK

Pressure Regulating Valve

AIRTAC

Cover Plug Motor

CNDF

Cover Caps Motor

CNDF


Filling Machine
