Lube oil filling machine

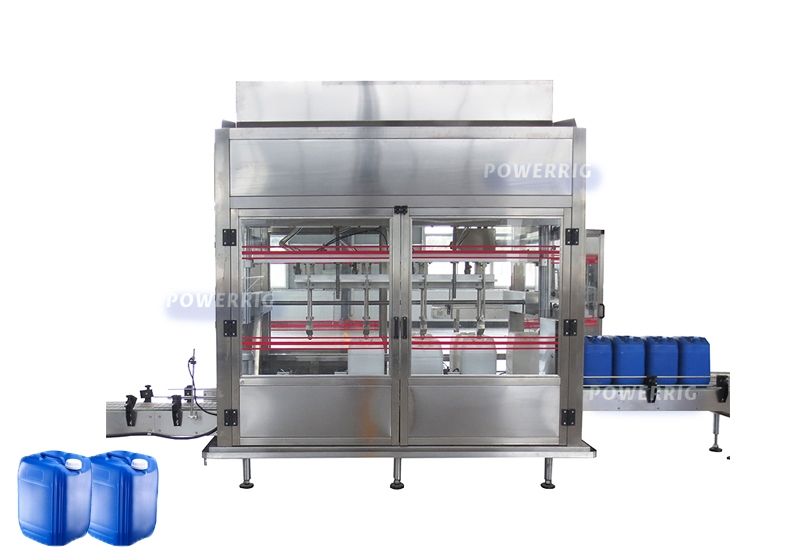

ZF4 Weighing Lube Oil Filling Machine ( Speed 1-300 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
This weight lube oil filling machine is suitable for:
Lube oil, chemical material, industry oil, Detergent, bean oil, paint and other similar products.

This machine function is:
1.      Automatic bottle sensing system and filling
2.      No bottle no filling
3.      Filling error is control within 1‰
4.      Filling arrange is from 5L-30L.
5.      Automatic filling volume correction system.
6.      Can be customized for different bottle and caps.
7.      Can be equipped with cleaning system.

This machine adopt PLC control system combine with weight system. Fixed flow channel parameters. Adopt large flowing quality approach target worth.
Through the small flow supplement to achieve the goal of measuring and filling.
It is the most ideal 5L-30L large range adjustable filling equipment. Can be used with capping machine, labeling machine supporting the formation of water production line.

It has the characteristics of stable and reliable operation, high production efficiency, strong regulation and high filling accuracy. This machine meets the requirements of GMP


Powerrig Machine is one of the toppest lube oil filling machine, lubricant filling machine, lubricant oil filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

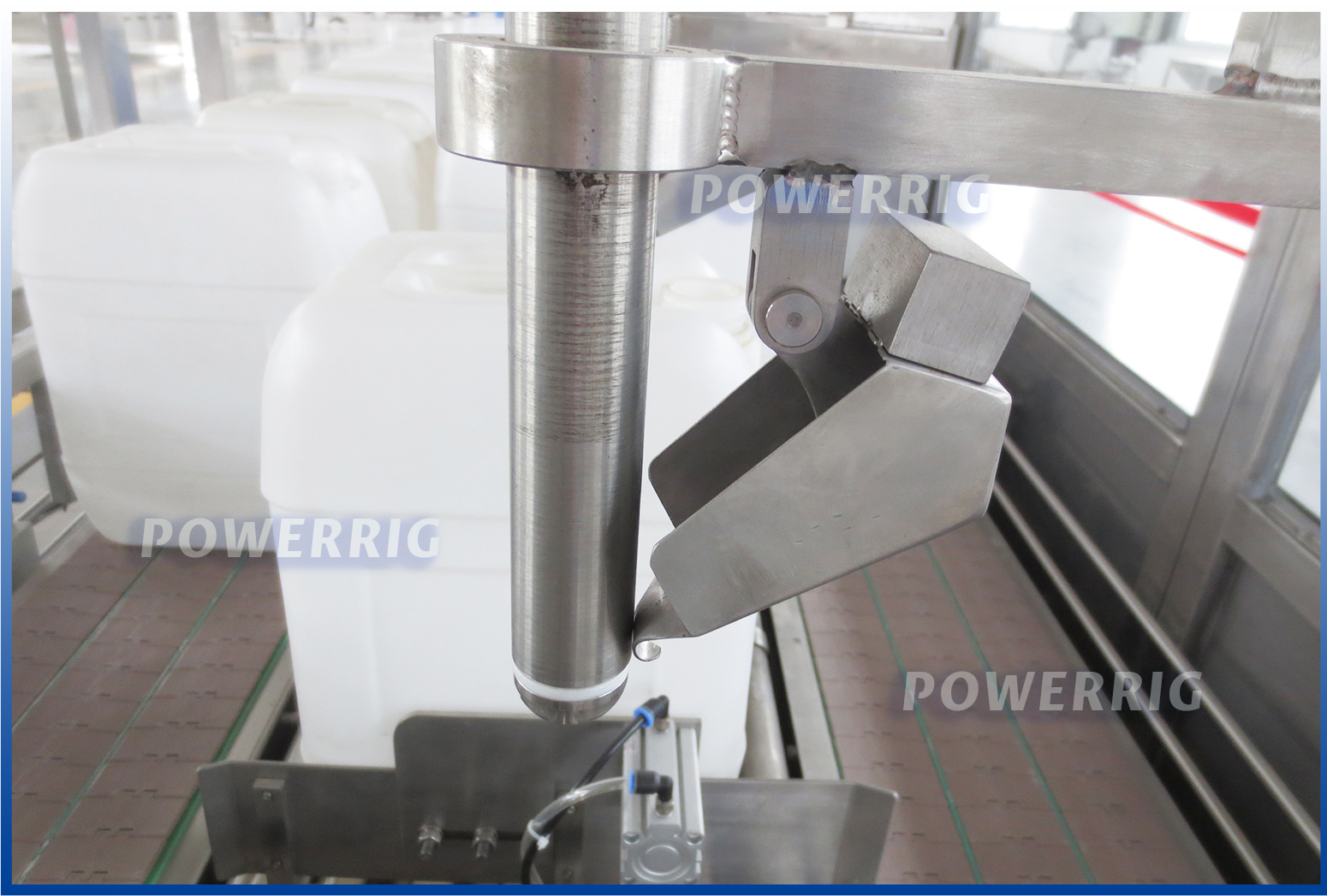

Filling Head

4heads

Filling Volum

5-30L

Filling Speed

300BPH(20liters basis)

Power Supply

220V/380V

Power

3.0Kw

Bucket Length

180mm-300mm

Bucket Width

120mm-250mm

bucket Height

280mm-450mm

Metering Error

≤±0.5%

Air Consumption

0.6m3/min

Working Pressure

0.55Mpa-0.65Mpa

Dimension

2500mm × 1800mm× 2500mm

Weight

800 kg

Parts

Brand

Touch Screen

Canada

PLC

Schneider, France

Weighing Sensor

Canada

Weight Display

Canada

Solenoid Valve

Taiwan Yadeke

Cylinder

Taiwan Yadeke

Gas Source Treatment

Taiwan Yadeke

Photoelectric System

Japan Stately

Pneumatic Original

Taiwan Yadeke

Utton and Other Low-voltage Electrical

Schneider, France

Switching Mode Power Supply

Taiwan Meanwell

Machine Material Box

The material contact position is 316, and the other part is 304 stainless steel
