Lipstick Filling Machine
Automatic Lipstick Filling Machine ( Speed 3000 pcs per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

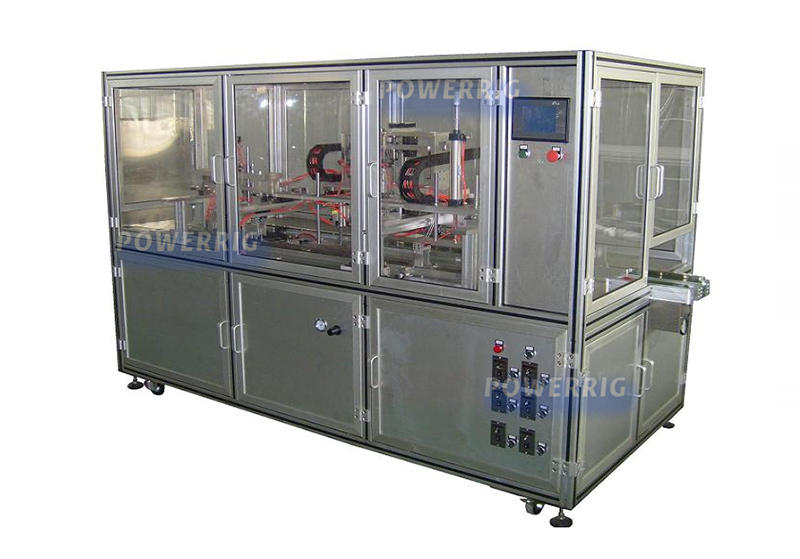

Automatic Lipstick Filling Machine:
this machine is full autonatie silicone mould lipstick filling machine designed for the produetion of hot filling nould products such as high qualitg lipstick. Hip balm, cosnetic pencil ete.

Mainly Features:
1. Servo piston prping to esure accurate rilling.
2. Maltiple flling model as option to puarantee best filling effect.
3.After filling using regenerative function to improve the quality of products
4. Filling mould with auto cycle system
Specifications:
● Maintenance, maintenance
As a fundamental solution to the traditional design defects, so
Improved ease of maintenance. Design is more humane.
●Low energy
Design from the customer's point of view, in the perfusion and input, etc
More accurate and stable. , so as to achieve energy saving.
●Simplify this low
By materializing and designing the feed, rotation, input and delivery
The change in concept, thus greatly realized the simplicity of the equipment
Improved reliability and security
Equipment in the use of high-performance accessories at the same time, but also the equipment framework
A complete safety explosion-proof test and line aging experiment were carried out

High customer demand for product safety performance


Powerrig Machine is one of the toppest lipstick filling machine, automatic lipstick filling machine, lip gloss tube filler factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

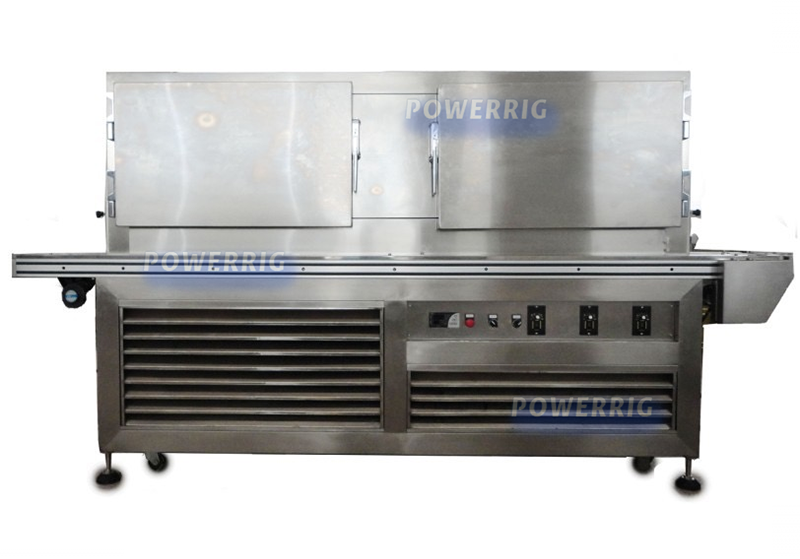

Automatic Cooling Tunnel
    Cooling tunnel is good for cooling down all kinds of hot fill products like Lanolin, Oil based products, Antipodes cleanser and hair putty.

    The lipstick cooling tunnel is used the consecutive conveying,max−10°c cooling tunnel to cool down, the lipstick which is high temperature in mould, it assemble the imported 10HP refrigerating unit, easy to operate and steady function, which make it to be the ideal choice for the production of lipstick.



Auto Lipstick Moulds Releasing Machine

1. automatic mechanical hand off lipstick mould upper cover.
2. lipstick mould lifting adopts precise positioning servo motor, to ensure the product quality.
3.lipstick mold into the mold used automatic mechanical hand feeding mode.
4.lipstick with transmission line automatic output.









Technical parameters

Production type

Linear

Output capacity

3000pcs/hr

No. of holder

30pcs

Power consumption

5kw

Dimension

3100*1200*1900mm

Weight

650kg

Air input

6-8kg/cm2

Configuration list :

Automatic silicone mold lipstick filling machine

Touch screen

Kinco

China

Switch

Schneider

Germany

Pneumatic component

SMC

Japanese

Temperature controller

Autonics

Korea

PLC

Mitsubishi

Japanese

Relay

Omron

Japanese

Conveyor and mixing motor

Zhongda

Taiwan

5P Automatic cooling tunnel

Refrigeration systems

Danfoss

France

Switch

Schneider

Germany

Motor

Zhongda

Taiwan

Controller

KI&BNT

China

Meter

Danfoss

France

Pneumatic component

SMC

Japanese

Fan

KUB

China

10A Automatic lipstick releasing machine

Pneumatic component

SMC

Japanese

Switch

Schneider

Germany

Relay

Omron

Japanese

PLC

Mitsubishi

Japanese

Filling Machine
