Glass bottle filling machine
Automatic Small Glass Bottle Filling And Capping Machine ( Speed 20-40 bottles per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

Application

This small bottle filling machine is widely suitable for your products as: glass bottle, plastic bottle,

Perfume,spray,syrup,oil lotion,and liquid,material,eye drop, cosmetic oil,e- liquid,gel,and so on. The filling bottle type includes Dropper bottle , plug bottle , rubber plug bottle , chubby gorilla bottle, vial. penicillin bottle,spray bottle (can customize to suitable to different type bottle and caps)


Working process

The empty glass bottle is been sent to the turntable by the automatic conveyor. You can choice to put the bottle manually, or match a automatic bottle unscrambler. When bottle arrives at turntable, the sensor works and the turntable starts working.

The filling nozzle starts filling syrup. Filling method is divided into 2 kinds, peristaltic or piston pump(according to different material and filling volume can customize). Syrup uses piston pump filling.If customer wants to speed, the quantity of filling nozzle can be customized.


After filling, next put cover. Cover putting has 2 methods. It can be automatic or manual. Automatic cover putting should match a cap vibrating plate. The vibrating plate is for the inner cap and outer cap loading, it is will customize based on bottle cap, if it is only cap, just need one set of vibrating plate. It will be used to sort of different kinds of caps and send bottle into loading cap guider automatically one by one.The inner and outer cap is united in one cap. The last progress is capping station. The bottle is fixed on the mould of disk and then it is screwed by the capping head.


Note

For some material, it also matches vacuum system. This system avoids producing bubbles during the filling process.

Advantages of small bottle filling machine

High accuracy and efficient

No bottle,no filling, no bubble


Powerrig Machine is one of the toppest syrup filling machine, glass bottle filling machine, syrup bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

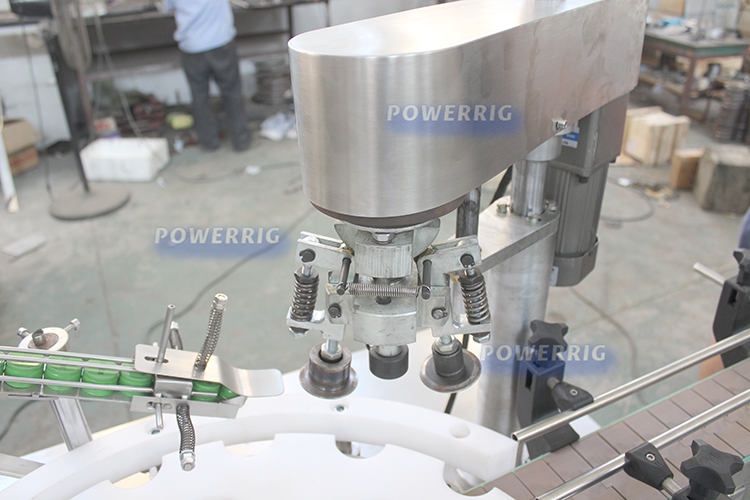

Screw capping head
His job is to tighten the lid on a bottle that has been filled , which is the last step on the main bench.
When the bottle reaches under the Screw capping head, the machine automatically recognizes and the Screw capping head moves downward to tighten the cap quickly.

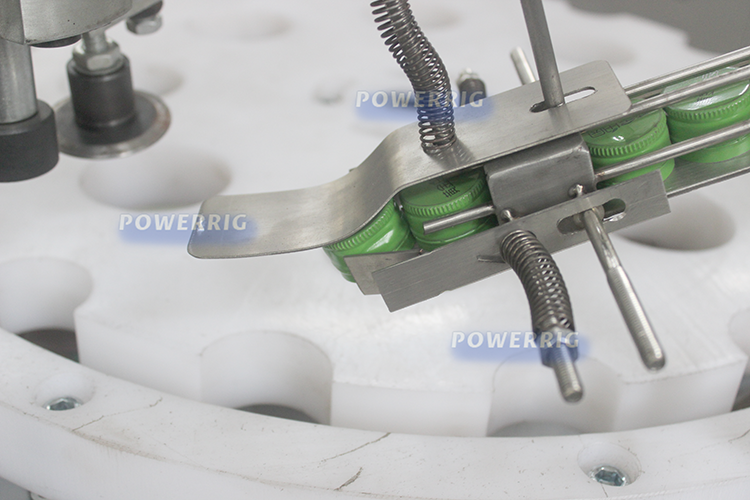

cover loading automatically

    Cover feeding cage with vibrating disk is connected to a pipe that carries the outside cover ,They automatically arranges the outside cover and deliver the outside cover.
     In this way, the small bottle is covered in a Coherent process, reducing the manual contact with the syringe process, and ensuring bottle hygiene,At the same time, labor costs are reduced.










Filling Volume

10-120ml

4 Filling Heads

Output

20-40 Bottles/min

According to the Size of Bottle

Bottle Type

Glass Bottle or Plastic Bottle

Round or Square

Cap Type

Plastic Bottle or Aluminum Cap

/

Filling Precision

≤±1%

/

Power Supply

380V/50Hz

Can be Customized

Capping Rate

≥99%

/

Stoppering Rate

≥99%

/

Air Supply

1.3 m3/h 0.4-0.8Mpa

/

Power

2.0Kw

/

Weight

650 kg

/

Dimension

2100*1200*1500mm

/

Name

Brand

Press-button

Schneider

Magnetic Contactor

Schneider

Relay

Omron

Frequency Transformer

Mitsubishi

Motor

JSCC made in Germany

Air Cylinder

Airtac

Solenoid Valve

Airtac

Speed Reducer

Made in Taiwan

Bearing

NSK

PLC

Mitsubishi

Touch Screen

Mitsubishi

Fibre-optical

Autonics

Switching Mode Power Supply

NWELL

Step Motor

SNAYO Made in Japan
