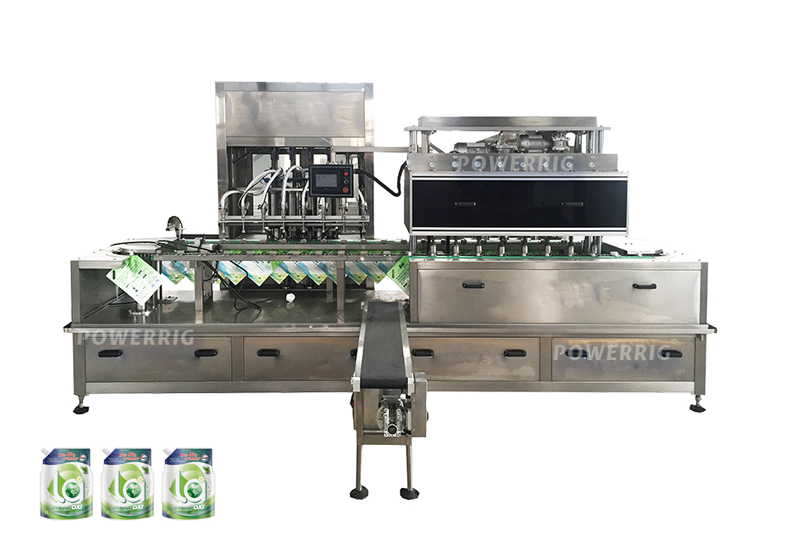

Liquid Bag Filling Capping Machine ( Speed 3000 bags per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This machine is mainly designed for packing plastic bags with suction nozzles. It is suitable for filling and screwing caps of water agents and viscous materials. PLC programmable control, with touch screen man-machine interface system, automatic filling, automatic capping. Servo motor drive, double screw drive, control the movement of piston rod to ensure the stability of filling, higher filling accuracy, optical, mechanical, electrical, gas in one. The utility model is an integrated filling and capping machine with convenient operation. It has stable and reliable operation, high production efficiency and strong adaptability.


Main Features

1.This machine adopt PLC programmable control, with touch screen man-machine interface system .

2. Automatic filling, automatic cap loading and capping .

3. Adopt servo motor drive, double screw rod drive to control the movement of the piston to ensure the stability of filling, filling accuracy is higher.

4. Stable and reliable operation, high production efficiency, strong adaptability .


Powerrig Machine is one of the toppest bag filling machine, liquid pouch filling machine, automatic bag filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.








Filling Range

250-2000ml

Voltage

220v/380v

Power

4KW

Filling Precision

99%

Filling Nozzles

8 nozzles

Filling Speed

3000 BPH

Dimension

3800*1500*2200mm

Weight

1000kg

Material

SS304

Touch screen

Xinjie

PLC

Schneider

Solenoid valve

AirTAC

Optoelectronic system

AUTONICS

Differential switch

Netherlands

Air source treatment

AirTAC

Switching power

MingWei

Button and other low-voltage electrical appliances

Schneider

Alarm system

Real-time fault alarm, important fault can automatically stop

Servo motor

TECO

Ball screw

Taiwan

Function

Filling the count

Material

316 stainless steel is used in contact with material, 304 stainless steel is used in other main parts.

Sealing ring

It is made of carbon tetrafluoro fibers with good anticorrosion, wear resistance and sealing.

AC contactor

Schneider

Thermorelay

Schneider

Transducer

Schneider

Double clutch

Custom

Precision relief valve

Lark

Screw cap form

Automatic cap sorting and capping

One camera dual use

Fillable Water Agent or Thickener Formula
