Bag filling machine

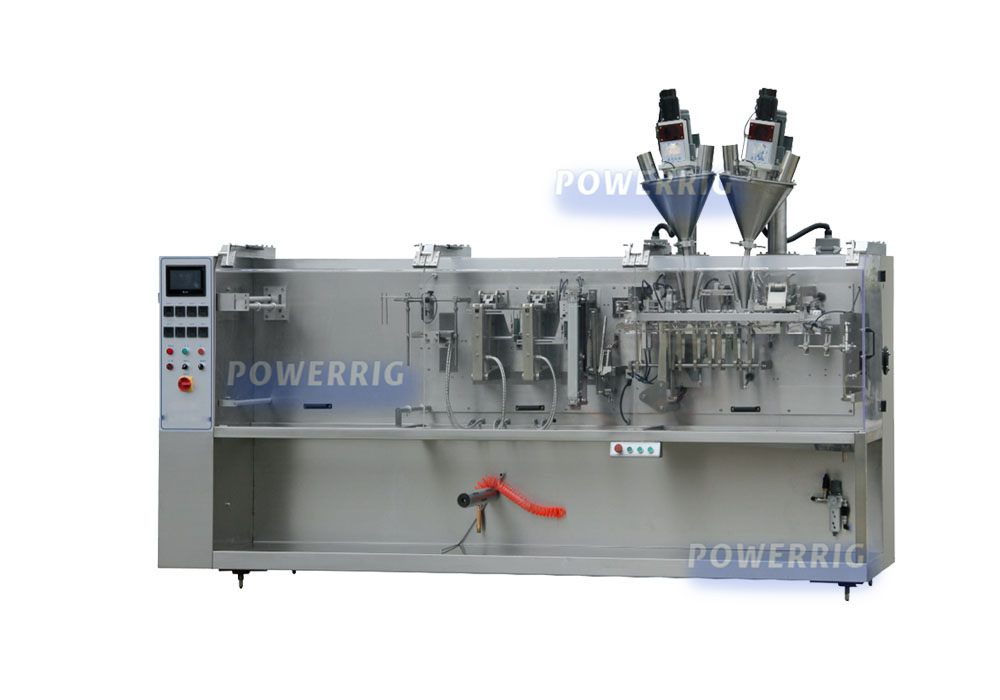

Automatic Bagged Powder Particle Filling Machine ( Speed 40-80 bags per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

The fully automatic horizontal bagging machine includes film placement, bag formation, bag bottom sealing, vertical sealing, cutting, bag opening filling, bag transfer, top bag sealing and the like. Through the motor, drive the cam on the main shaft to complete the coordinated action of each mechanism, and the encoder in the spindle feedback position signal, under the programmable control of the PLC, performs the film roll → bag formation → bag manufacturing → filling → sealing → transport of the finished product The function, the final product enters the collection and counting device for bypass bags, and is packed or boxed manually. The machine has a reasonable design, a novel look and adopts a standard band seal. The filling of the filling device can perform the automatic filling of various materials such as powder, granules, suspending agent, emulsifiable oil and water agent in the machine.


Touch Screen the letter express color screen PLC Programmable France schneider Inverter Taiwan of servo Drive System Taiwan dong yuan Electromagnetic Valve Taiwan and dirk Encoder Japan omron Relay Japan omron Color Mark Sensor sunx Electromagnetic Brake Germany Kobe Vacuum System Japan SMC The Filter Commosa, Canada Low Voltage Electrical Appliances Schneider, France Material Is Qualitative The machine is made of 304 stainless steel


Main Features:
1) Can customize Three or four sides can be sealed as needed
2) Single and double bag options are also available
3) The whole machine is made of SUS304 stainless steel, which has good anti-corrosion effect on corrosive materials.

4) The plexiglass cover prevents dust from leaking out, making it more environmentally friendly and non-polluting.


Powerrig Machine is one of the toppest bag filling machine, liquid pouch filling machine, automatic bag filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

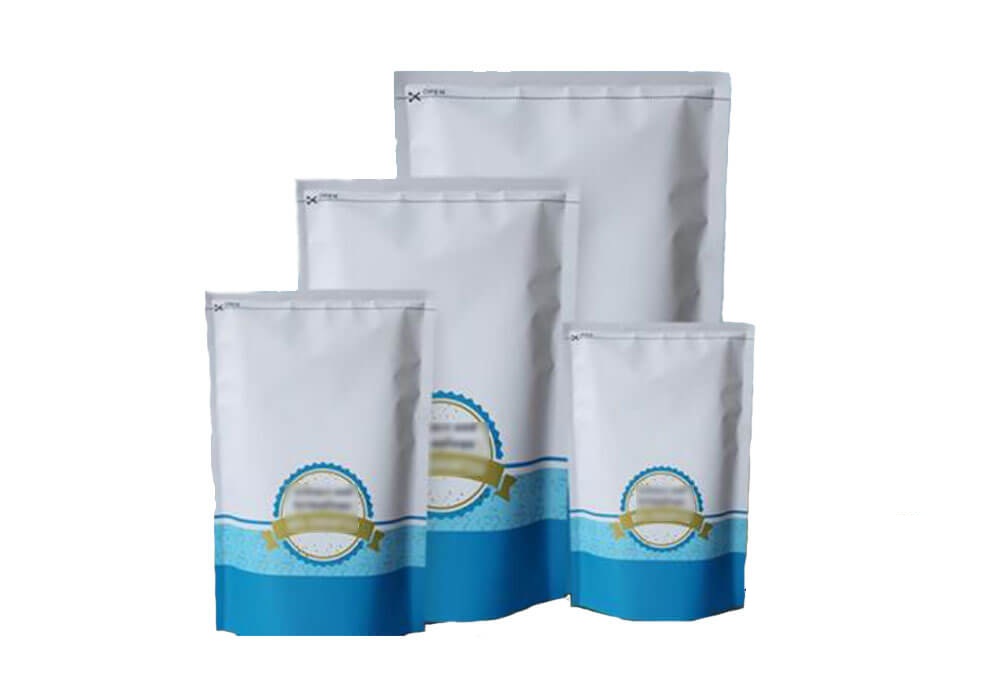

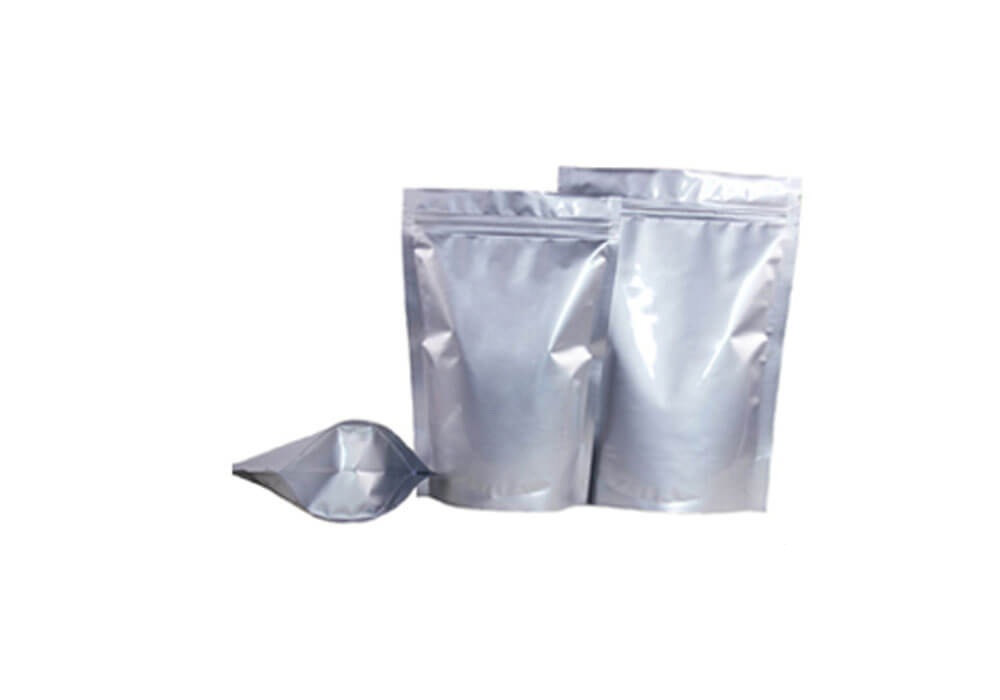

Packing Sachet Size

85-180mm(w)*100*220mm(h)

Air Consumption

0.8 m3/min

Suitbale Bag Size

65-90mm(width)*100-220mm(height)

Work Pressure

0.8Mpa

Power

4.5 kw

Packing Speed

40-80 bags/min

Machine Weight

1050kg

Overall Dimensions

3550mm ×1020mm ×2400mm

Electrical Source

380V 3phase 50HZ

Touch Screen

the letter express color screen

PLC Programmable

France schneider

Inverter

Taiwan of servo

Drive System

Taiwan dong yuan

Electromagnetic Valve

Taiwan and dirk

Encoder

Japan omron

Relay

Japan omron

Color Mark Sensor

sunx

Electromagnetic Brake

Germany Kobe

Vacuum System

Japan SMC

The Filter

Commosa, Canada

Low Voltage Electrical Appliances

Schneider, France

Material Is Qualitative

The machine is made of 304 stainless steel
