Bag filling machine

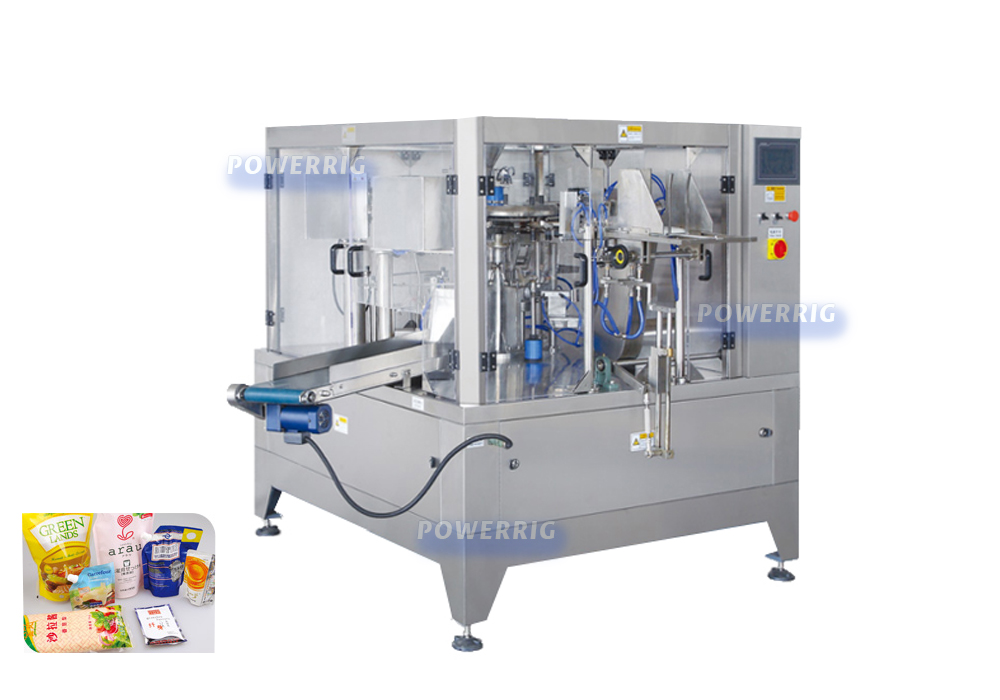

Sauce Bag Filling Machine ( Speed 10-40 bags per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
1.This filling machine uses frequency conversion speed regulation device, which can adjust the speed at will within the specified range.


2.Automatic detection function, if the bag is not opened or opened incompletely, no feeding, no heat sealing, the bag can be reused, no waste of materials, saving production costs for users.


3.The safety device will give an alarm when the working air pressure is abnormal or the heating pipe fails.


4.Equipped with plexiglass safety door to protect operators.


5.Oil-free vacuum pump is adopted to avoid pollution of the production environment.


Suitable for milk powder,coffee,flour,spices,additive,pesticide,chemical powder etc products weighing filling packing for premade bag,zipper bag.

Adopting PLC control,it has the advantages of stable operation and high weighing accuracy.


The width of the bag is easy to adjust and can be controlled with just one button.

Comply with GMP requirements, environmental protection and pollution-free.

All contact parts are made of 304/316 stainless steel.


Powerrig Machine is one of the toppest sauce filling machine, sauce filling equipment, sauce bottling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.



DETAILED IMAGES：

  • Bag take device
  • Scanning device
  • bag opening device

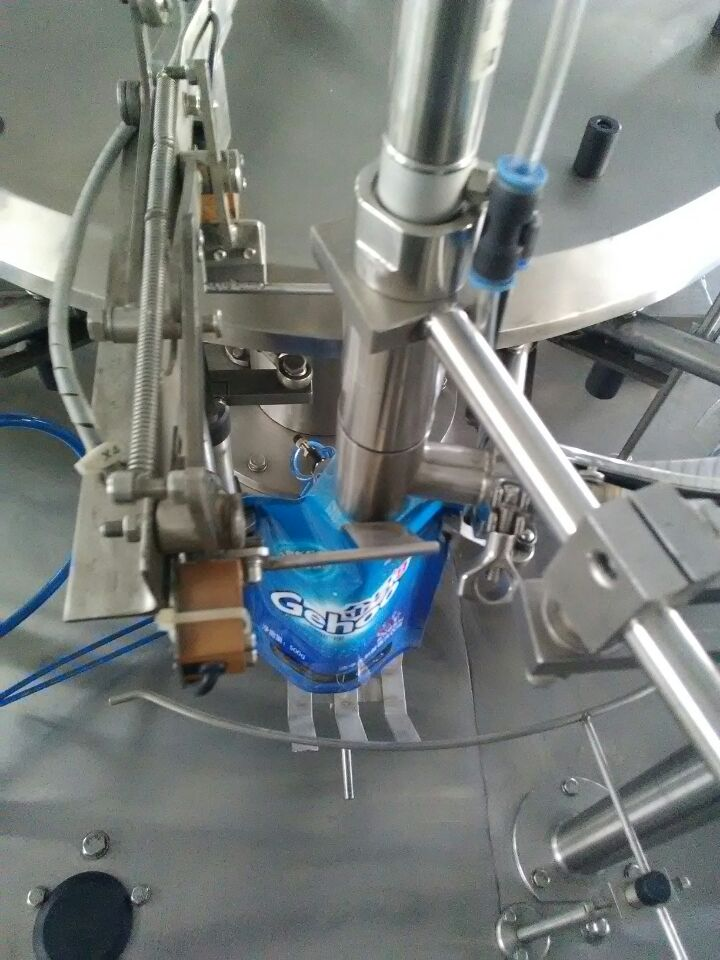

  • feeding device
  • Heat sealing device

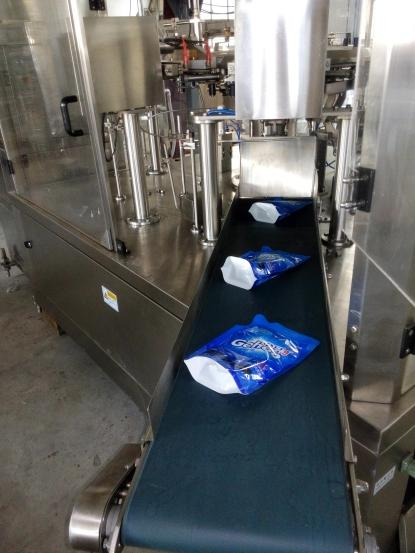

  • Finished product output







Bag material

Compound mold

Bag type

Zipper free standing

Bag size

w:100-210mm

L ： 100-350mm

W:150-260mm

L:150-350mm

W ： 200-300mm

L:200-450mm

Speed

10-50bag/min

10-40bag/min

10-40bag/min

Weight

1200KG

1400KG

1500KG

Voltage

380V 3 Phase 50HZ/60HZ

power

3KW

4KW

4KW

Compressed air

0.6m ³ /min
