This filling capping machine is suitable for:

Cosmetics, light industry (daily chemical industry), pharmaceutical, food and other industries, for enterprise products selected plastic bottles, glass bottles for packaging containers, the device can cream, ointment, cream, gel or viscous fluid.

This machine reflect GMP standard for Food ,Pharmaceutical equipment required Advanced, reliable, rational design ideas, Automatic filling, under cover, pre-swirl, capping, sent, using linkage design, all the action synchronization is complete.

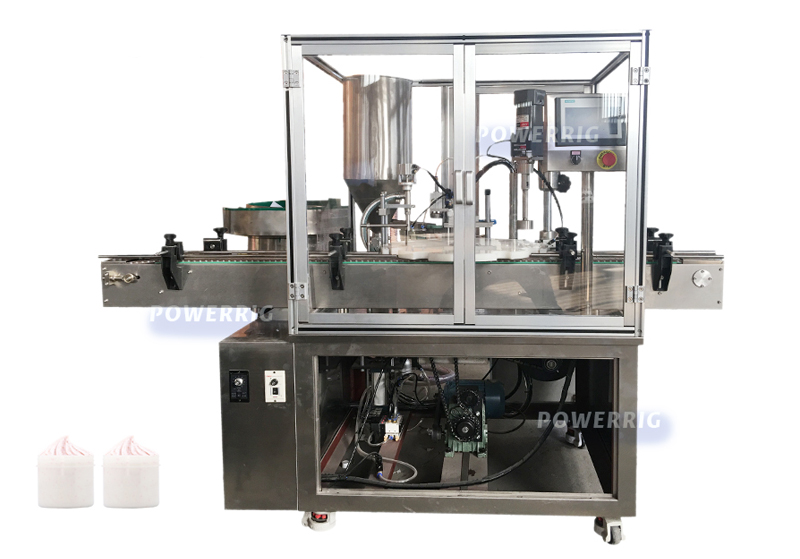

MIC -Automatic Sauce jam Lotion Filling Sealing and Capping Machine is 3 in 1 one machine by using round turn plate. After filling, the machine will heat and cut the film. Then the mechanical hand put the cap and tighten it by cylinder. According to different jar size, the star wheel, should be also changed. The machine is with no jar no filling function. The machine is controlled by PLC This machine is suitable for filling high viscosity cream

a).When the machine filling material, and use pump dedicated teflon pipe.

b).This machine adopt plunger piston pump filling, filling volume and filling speed adjust is Convenience.

c). Filling head’s assembly easy disassembly, easy cleaning, disinfection and sterilization.

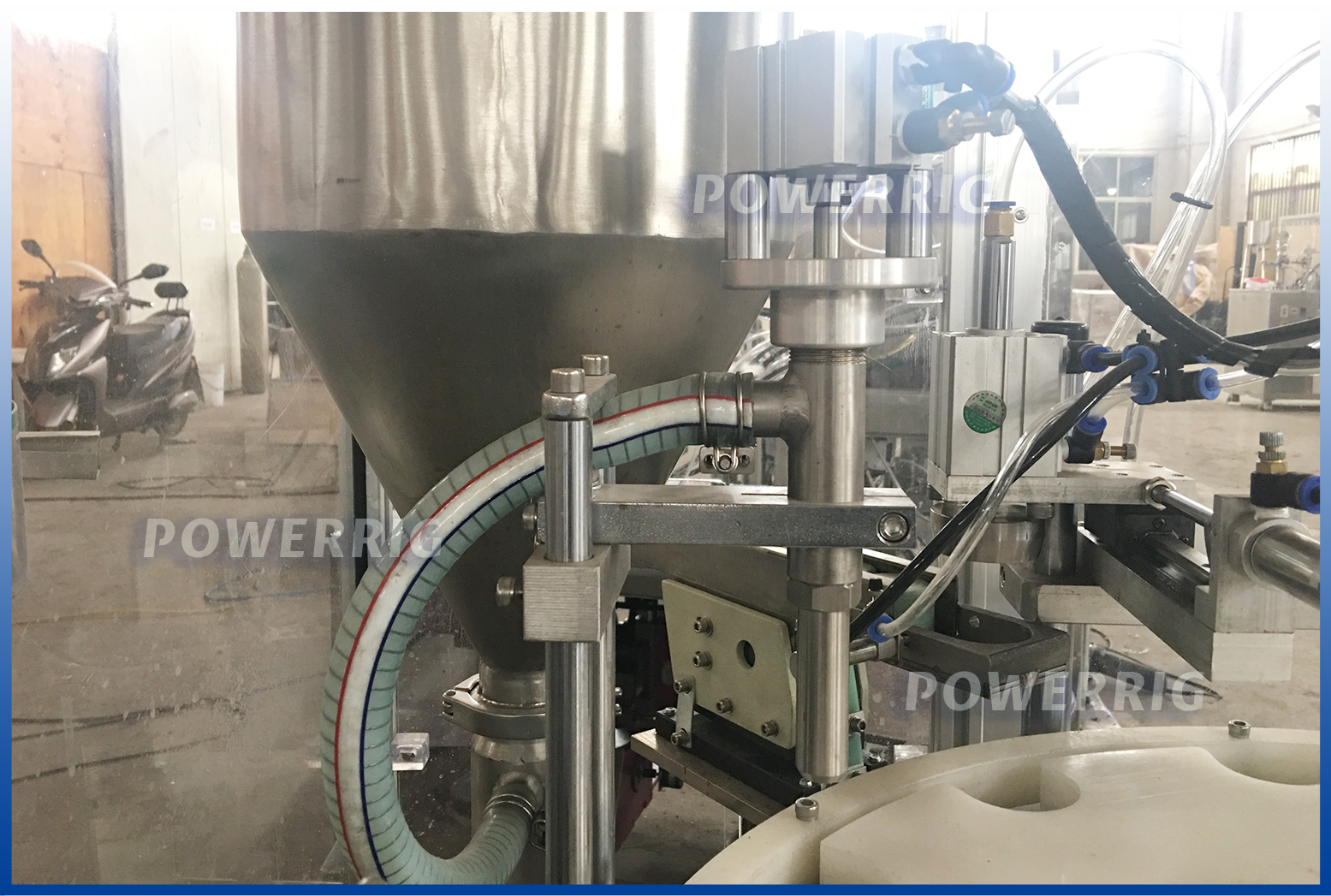

d).This machine adopt lifting filling, filling head can insert the bottle, to ensure the effective filling materials.

f).Adopt the servo motor control screw cap, screwing cap speed and Twisting force of capping can be adjusted in touch screen directly.

J).Adopt the pre-screw device, Improve the Capping success rate and efficiency.

h).PLC control machine automatically, all machine use stainless steel.

i). With fault alarm, Mechanical overload automatic stopping device.

j).Adopt the plunger piston pump to control the thick material filling.

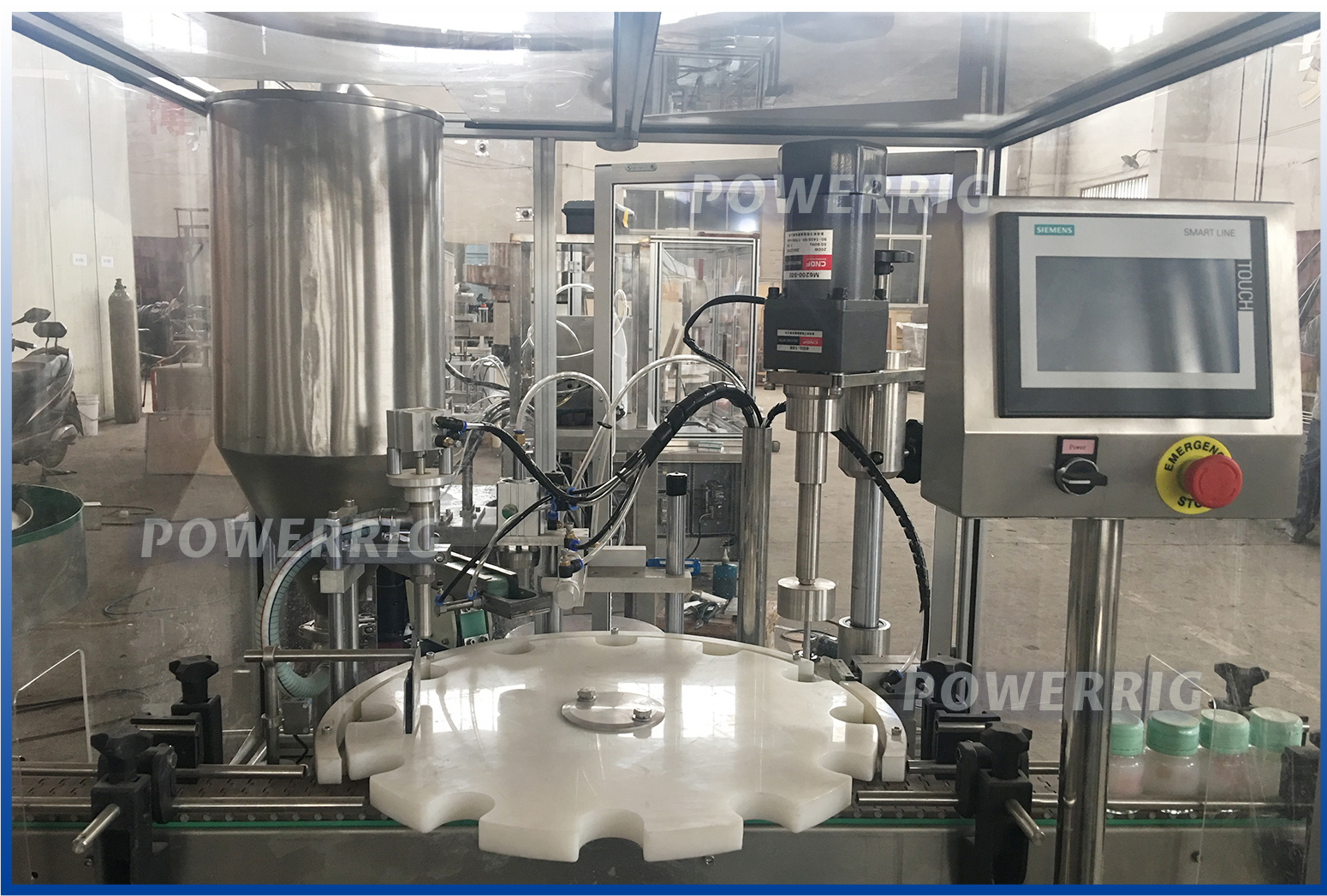

Equipment operation Intuition，The twisting force set, screw cap speed set, machine production speed set, Fault display, Complete workload directly displayed on the operator panel, Adjust the operating parameters of the device can be done directly on the panel

Easy to adjust the structure function This machine can used to filling cream. High viscosity material, thick material, cosmetic material filling and capping machine.

Filling volume, filling speed, capping speed, the twisting force screw cap, can adjust in the touch screen directly.

This machine’s structure is compact From the filling to the capping minimum time to 0.5S

Powerrig Machine is one of the toppest gel filling machine, gel packing machine, automatic gel filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

•
•
•
•



•



Thank you for the reading this article.

Suitable Filling Volume	20-100ml
Production Speed	30-40 Bottles/min
Filling Accuracy	≤±1%
Voltage	220V/50Hz Single Phase
Spain Rolling Cover Rate	≥99%
Automatic Loading Brush Rate	≥99%
Air Source	2 m³/h 0.4-0.8Mpa
Power	2kw
Machine Weight	500kg
Size	1530*2990*1500mm

Parts	Brand
PLC Programmable Logic Controller	Delta Taiwan
PLC Module	Delta Taiwan
Touch Screen	Taiwan Taian
Main Motor	Taiwan Leeming
Conveyance Motor	Xiamen Lapping
AC Contactor	Schneider
Intermediate Relay	Schneider
Power Indicator	Schneider
Photoelectric Sensors	Sick
The Electromagnetic Valve	Explosion-proof Solenoid Valves
Switching Power Supply	Ming Wei
Inverter	Delta Taiwan
Pneumatic Components	AirTAC
Barometer	AirTAC
Regulator Filter	AirTAC

•
•
•
