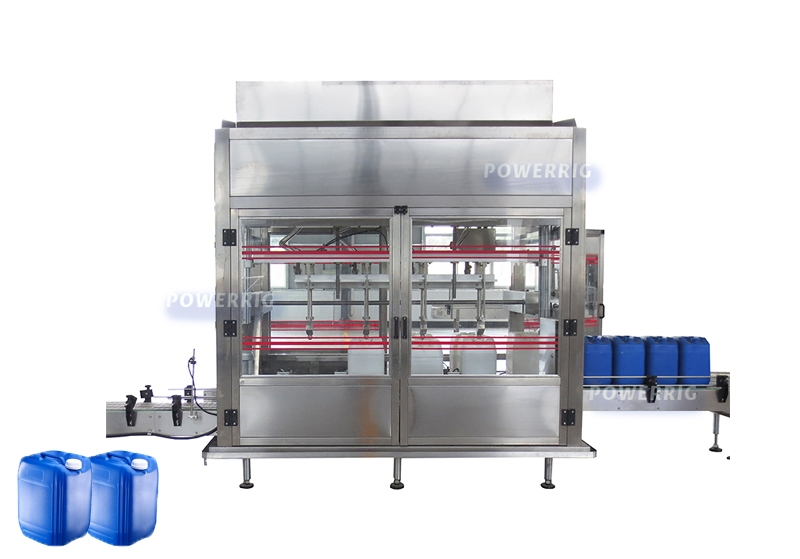

Automatic 4 Heads Plastic Bottle Barrel Weighing Filling Machine ( Speed 300 bottles per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This weight filling machine is suitable for:
Lube oil, chemical material, industry oil, Detergent, bean oil, paint and other similar products.

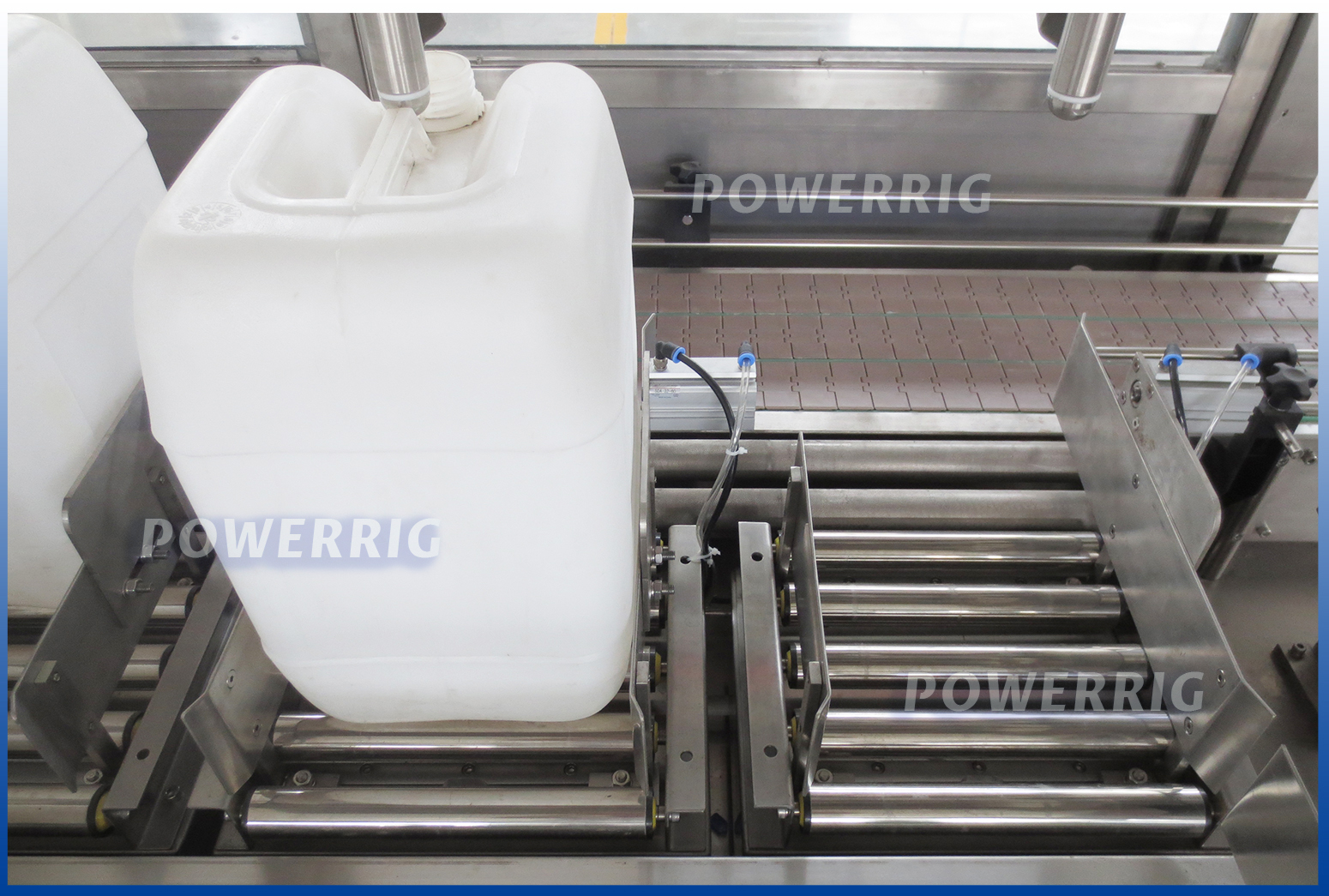

This Automatic liquid weighing filling machine adopts PLC control system and the weighing feedback system with the combination of automatic weighing and filling machine, filling parameters set with stable and reliable operation, strong adaptability, filling precision higher merit in touch screen click to complete. Using the roller conveyor model, transport time and effort.

1. Machine adopts weighing measure mould to control filling , ensure the filling accuracy is high


2.It suitable to 5-30L big volume barrel.


3.This machine meets the GMP requirements, can be easily disassembled, cleaned and maintained.


4.The equipment is mainly used for pesticide, chemical, water agent kind of liquid bottles, packaging, can be applied to a variety of different types of containers. It can form a production line with capping machine and labeling machine.


5.The adoption of high quality components ensures excellent quality and long - lasting and stable performance.

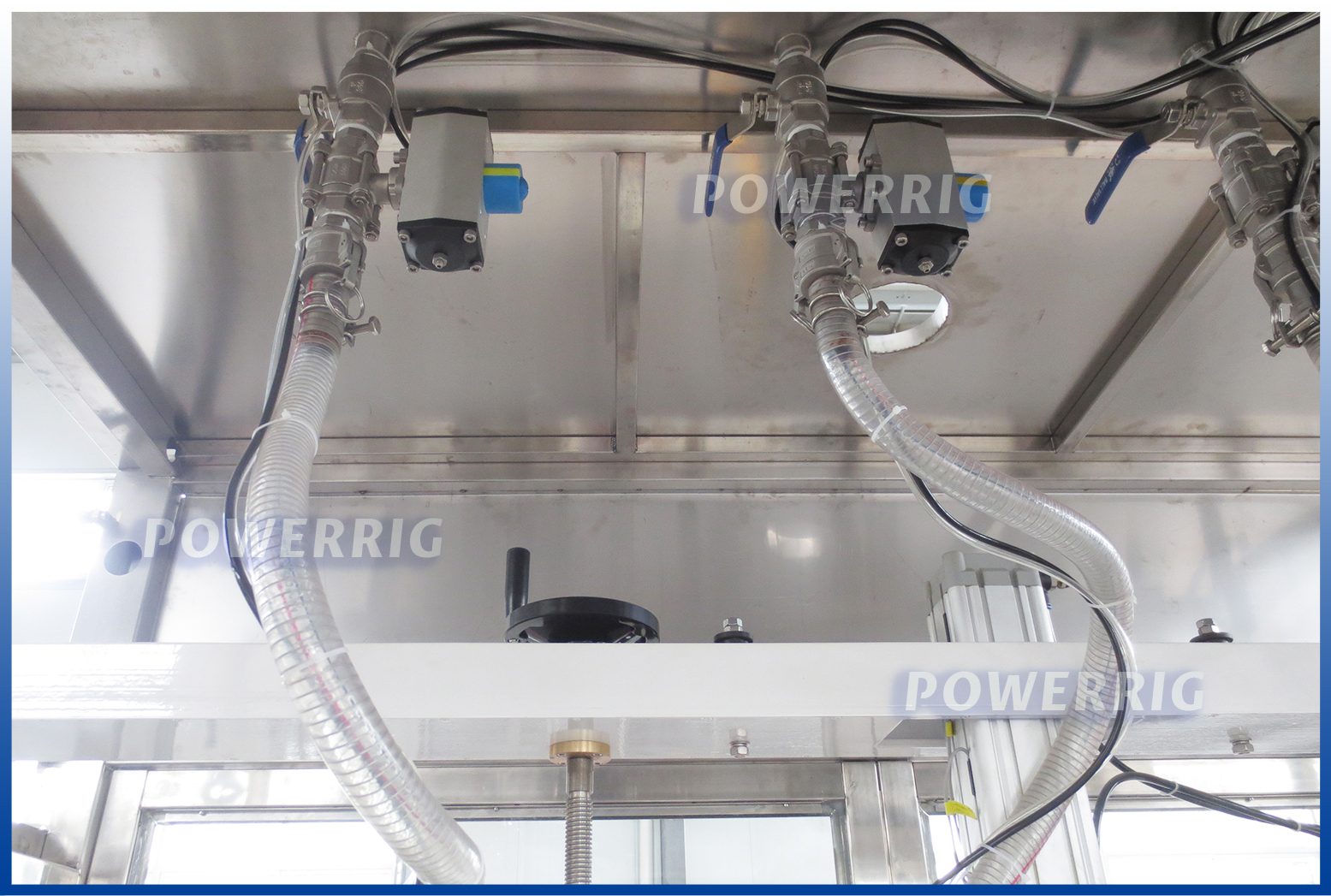

6.Material cylinder and three-way valve adopt handcuffed quick connection，No need any tools，Easy Disassembly，So maintenance and cleaning is very convenient.


7.Photoelectric counter, Truly do no bottle no filling， Filling accurately.


8.The anti-drip filling system can effectively prevent the occurrence of drip and wiredrawing.

This machine is guaranteed for one year and you can extent your guarantee easily by discuss with our sales.
Which you might be interested, under guaranteed, machine parts got broken by daily use, we will replace it once we are informed by free DHL.


Powerrig Machine is one of the toppest Weighing filling machine, oil filling machine, Paint filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.







Filling Head

4heads

Filling Volum

5-30L

Filling Speed

300PBH(20liters basis)

Power Supply

220V/380V

Power

3.0Kw

Bucket Length

180mm-300mm

Bucket Width

120mm-250mm

bucket Height

280mm-450mm

Metering Error

≤±0.5%

Air Consumption

0.6m3/min

Working Pressure

0.55Mpa-0.65Mpa

Dimension

2500mm × 1800mm× 2500mm

Weight

800 kg

Parts

Brand

Touch Screen

Canada

PLC

Schneider, France

Weighing Sensor

Canada

Weight Display

Canada

Solenoid Valve

Taiwan Yadeke

Cylinder

Taiwan Yadeke

Gas Source Treatment

Taiwan Yadeke

Photoelectric System

Japan Stately

Pneumatic Original

Taiwan Yadeke

Utton and Other Low-voltage Electrical

Schneider, France

Switching Mode Power Supply

Taiwan Meanwell

Machine Material Box

The material contact position is 316, and the other part is 304 stainless steel
