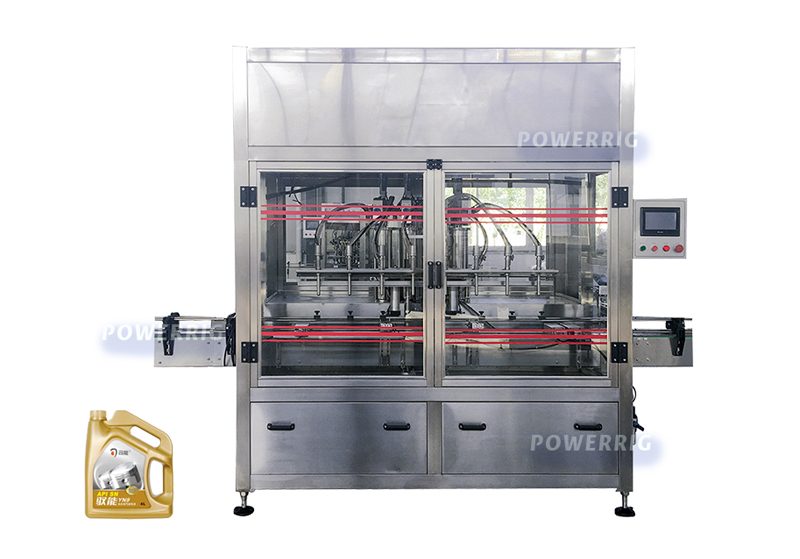

Olive oil filling machine（ZF8）
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

This machine is suitable for filling a liquid and cream products, especially for high viscosity materials,lube oil, car oil, motor oil, butterhoney,tomato sauce. the effect is obvious.

1. Adopt PLC programmable control system with touch screen interface.

2. Automatic bottle feeding, automatic filling, automatic bottle.

3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.

4. Adopt double-ball screw rod filling the filling nozzle dive

5. It can be used with capping machine, labeling machine supporting the formation of the production line

6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7. Having a stable and reliable operation, high production efficiency, strong adaptability.

Anti drip filling system MIC-ZF8 automatic soybean oil packing machine
This Anti drip filling system MIC-ZF8 automatic soybean oil packing machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc. And it is suitable for barrels, jars and bottles of  different sizes, shapes and volumes.
Features & Benefits:
1. Available with standard conveyor or with pucks for unstable bottles
2. Flexible design
3. Very fast and easy changeover of format size
4. Docking filling station model available
5. Diving nozzle with bottom-up filling


Thank you for the reading this article,

you can also check video for:

→ Application ←

Filling head

8 heads

Filling volume range

50-1000ml(Use 1000ml piston cylinder)

Production speed

≤1800 Bph basis on 1000ml bottle

Voltage

220v/380v

Power

3kw

Suitable bottle’s diameter

Ф40mm-Ф100mm

Filling error

≤±1

Work pressure

0.55Mpa-0.65Mpa

Size

2000mm × 1400mm× 2500mm

Weight

1000kg

Touch screen

Canada xinjie color

PLC

Schneider

Solenoid valve

Taiwan Airtac

Optoelectronic system

OPTEX

Micro differential pressure switch

Netherlands

Servo motor

Taiwan TECO

Air source treatment

Taiwan Airtac

Button and low voltage electric appliance

Schneider

Ball screw

Taiwan

Reducer

Taiwan VGM

Switching power supply

Taiwan meanwell

Material

Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel
