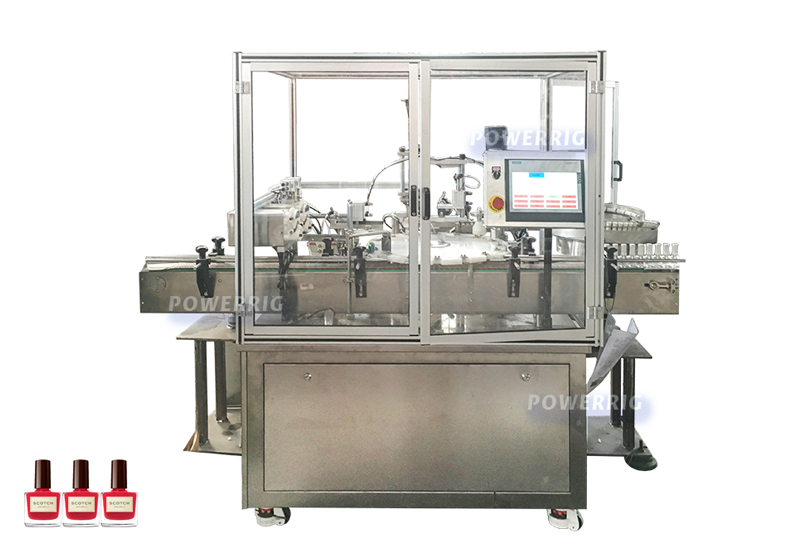

This machine is suitable for small dose liquid filling capping packaging production line in cosmetics, daily chemical and pharmaceutical industries such as nail polish, e-liquid, eye drop etc. To fill nail glue into various round and flat glass and plastic bottles with the filling range from 5-20ml. High precision cam provides a regular plate to position, inner plug ,brush and screw cap. The equipment is automatic filling and capping machine. According to customer’s requirements, it can add the bottle feeder or unscrambler, labeling machine to become the whole full production line. Effentive completion send the bottle, no bottle no filling, no bottle no add stoppering, no stoppering no add the cap. The machine with advantage of high position , performance stable, They will satisfy different specification and production speed based on customer’s technological requirements configuration.



This machine function is :

1.  This machine is suitable for food, pharmacy, cosmetic. Chemical and pesticide industries.

2.  Automatic bottle feeding, no bottle no filling, no filling no capping.

3.  The machine is controlled by PLC and touch screen.

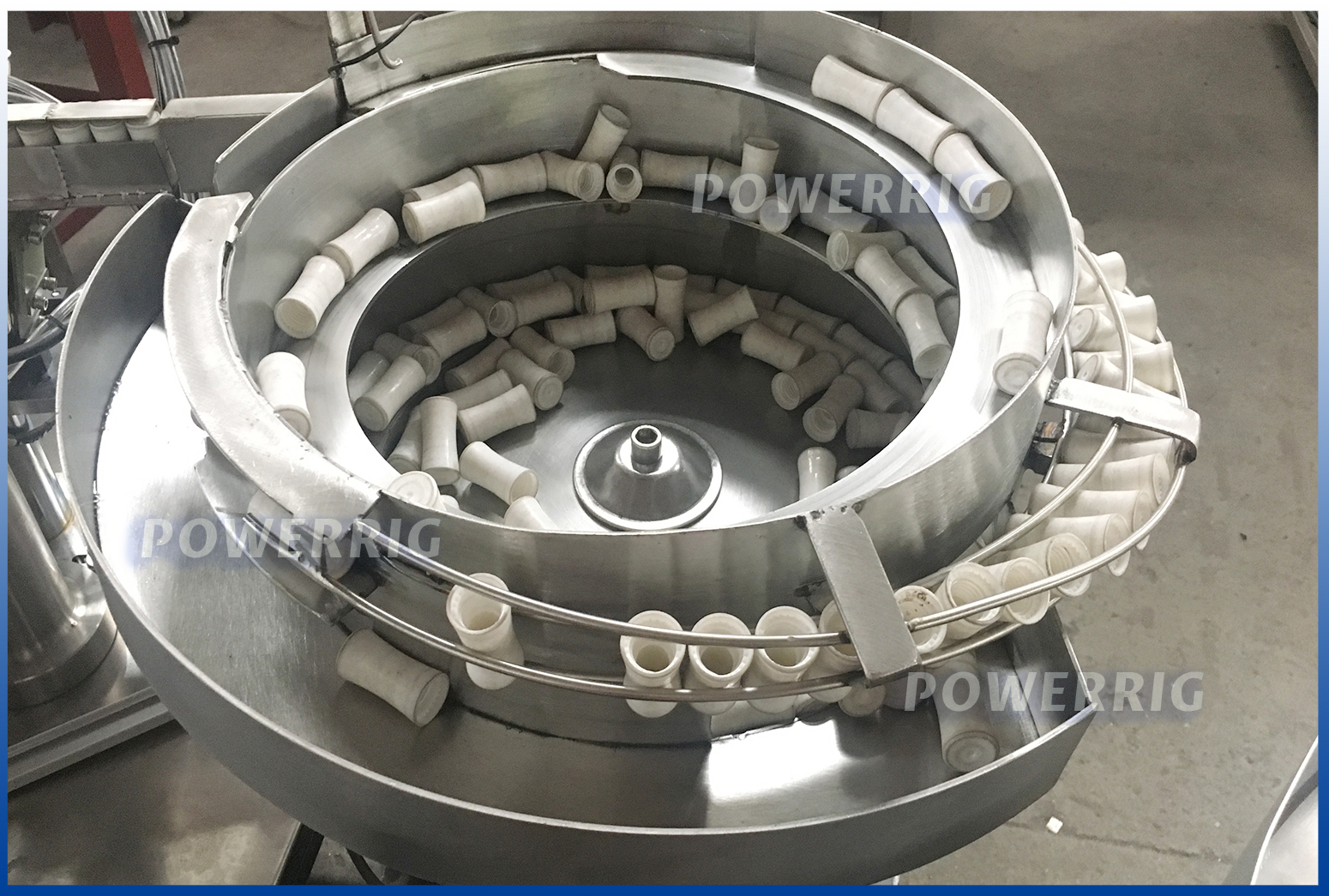

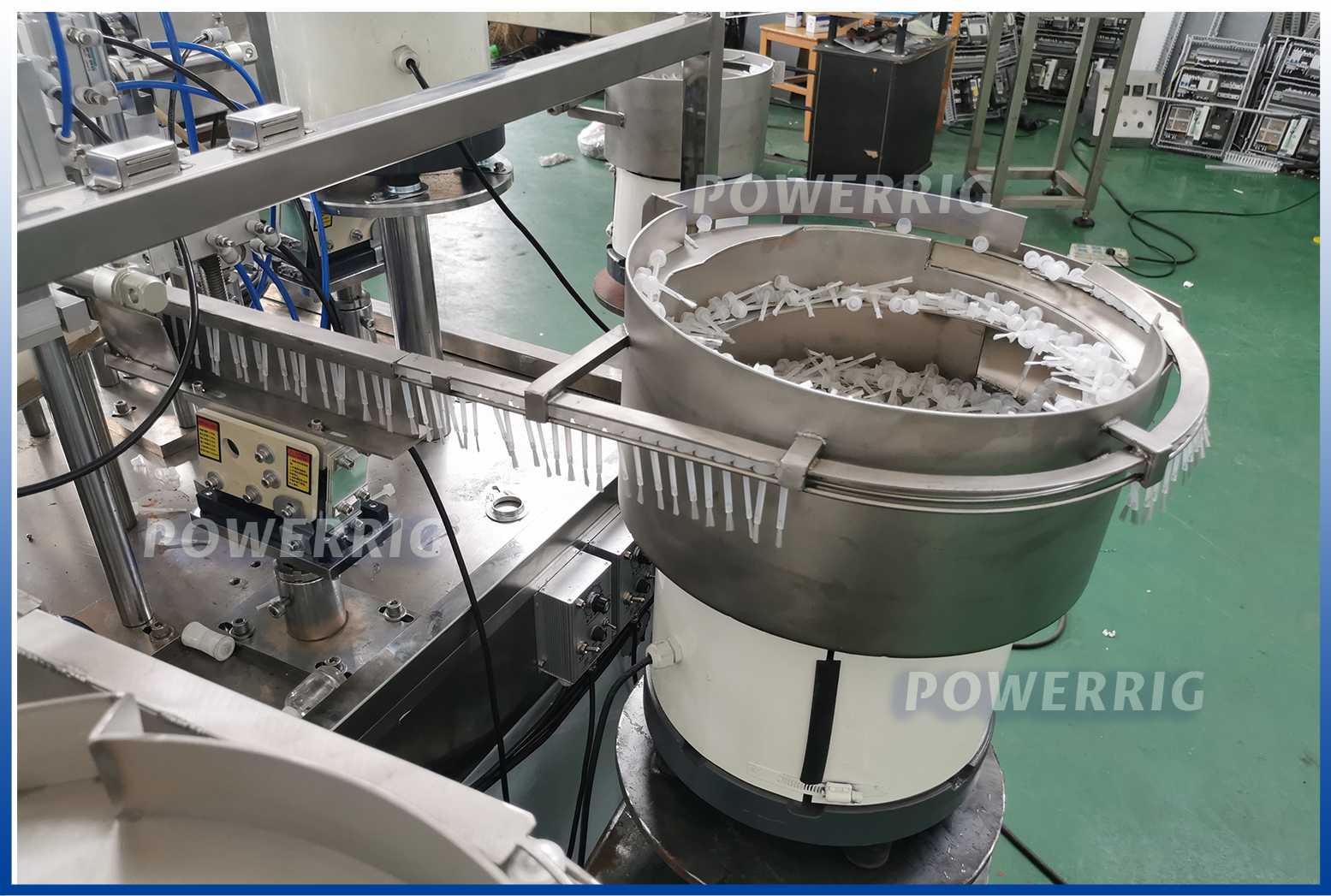

4.  Automatic cap sorters for press cap, spray pump cap, screw cap etc.

5. Adopt pressure tank and peristaltic pump fillling, suitable different viscosity glue and liquids. It is ideal equipment for low-capacity requirement.

6. Use the material of SUS304 or SUS316, which is in line with the food grade GMP requirement, all the surface has been polished.

7. Has the anti-drip feature, high accuracy for the filling.

8. This is filling and capping machine is our ordinary filling and capping machine, it can be used for many different kinds material and specifications filling and capping. We has also have the upgrade bottle filling capping machine, the features as follows:



Features:

1. No bottle no filling, no cap no capping. Automatic stop and alarm if there is problem.

2. Pre-capping in advance so as to avoid the caps falling down.

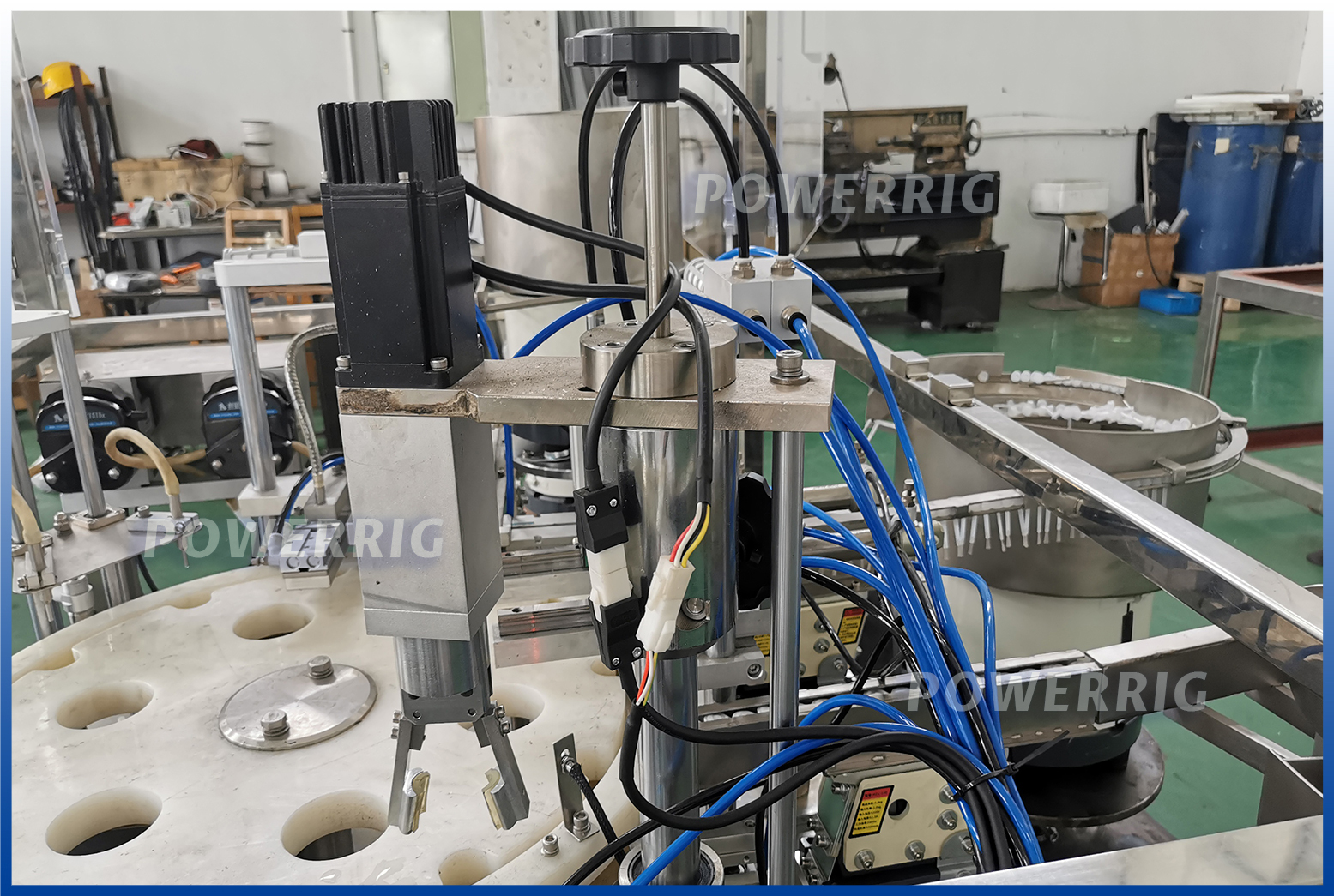

3. Swing lifting cam to grasp the cap, servo mechanical claw to screw the cap.

4. The filling nozzle has the feature of anti-drip.

5. Speed can reach 30-40bpm based on 50ml. Speed can be adjustable.

Powerrig Machine is one of the toppest glass bottle filling machine,glass bottle packing machine,glass bottling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

•
•
•
•



•



Voltage	220V 50Hz/380v
Power	2.5kw
Air Pressure	0.6-0.8Mpa
Air Consumption	30dm^3/MIN
Production Capacity	20-30 bottles/minute
Filling Error	+/-1%
Dimensions	2000*1000*1800mm
Weight	500kg
Filling Volume	5-20ml

Parts	Brand
Button	Schneider
AC Contactor	Schneider
Relay	Schneider
Frequency Converter	Taian
Motor	Qi peng
Air Cylinder	AIR TAC
The electromagnetic valve	AIR TAC
Bearing	NSK
PLC	Schneider
Touch Screen	Schneider
Photoelectric Detection	Sick
peristaltic pump control filling Servo motor + drive	TouchWin

•
•
•
