Lube oil filling machine

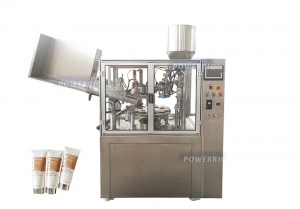

R60 Lubricant Oil Tube Filling Machine ( Speed 30-60 tubes per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
This R60 lubricant oil tube filling machine is suitable for:
cosmetic, pharmacy, foodstuff, bond industries and other similar products.

The machine main function is :
1.      Automatic loading tube
2.      Automatic filling material , filling system can customize according to different material
3.      Automatic sealing , sealing method can customize , different thickness tube and different material tube can customize different sealing method , like Swiss heating gun sealing or inside and outside double heating
4.      High efficient and high precise
5.      Easy to operate and flexible
6.      Stainless steel machine body , next and beautiful

R60 tube filling machine applicable to the pharmaceutical, food, cosmetics, daily chemical industry, the aluminum pipe for filling and sealing. Can all mushy, paste and viscous fluid and the material smooth accurately into the tube, and complete folding, sealing, batch number, production date.The machine adopts the touch screen and PLC control system in Taiwan, which realizes non-contact operation, intuitive and reliable operation.The machine has compact structure, automatic upper tube, and fully enclosed transmission.By the automatic control system to complete the supply pipe, washing pipe, the subject, filling, folding, sealing, coding, production process.By pneumatic method to complete the supply pipe, washing pipe, accurate and reliable action.Automatic calibration by using photoelectric sensor.Easy disassembly and easy adjustment.


Powerrig Machine is one of the toppest essential oil filling machine, essential oil botting machine, essential oil bottle filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.









   Automatic tube filling machine,Automatic tube filling machine manufacturers,Cream tube filling machine,Cream tube sealing machine,Soft tube filling and sealing machine,Soft tube filling machine,Tu be filling companies,Tube filling equipment,Toothpaste tube filling and sealing machine,Toothpaste tube filling machine About the advantages of fully automatic flexible tube machine



Thank you for the reading this article, you can also check for: → Application ← → QC


Voltage

110V/220V/380V optional

Main Motor Power

4.5kw

Air Source

0.6-0.8 Mpa

Air Consumption

0.6 m^3/min

Capacity

30-60 tubes/min

Filling Accuracy

+/-1%

Size

1950*800*1850mm

Weight

850kg

Parts

Brand

touch Screen

Siemens / Schneider (Optional)

Main Motor

Tai Wan CBG

PLC

Siemens / Schneider(Optional)

Stepping Motor

East Japan

Stepping Drive

East Japan

Sensor

Germany Sick

Approach Switch

Germany Sick

Intermediate Relay

Schneider

electromagnetic Valve

Germany SMC

Encoder

Omron

Mixing Motor  (Optional)

JSCC

Air Cylinder

SMC

Bearing

FAGINA

Button

Schneider

Air Switch

Schneider

Power Switch

Schneider

Temperature Control

Schneide
