Lube oil filling machine

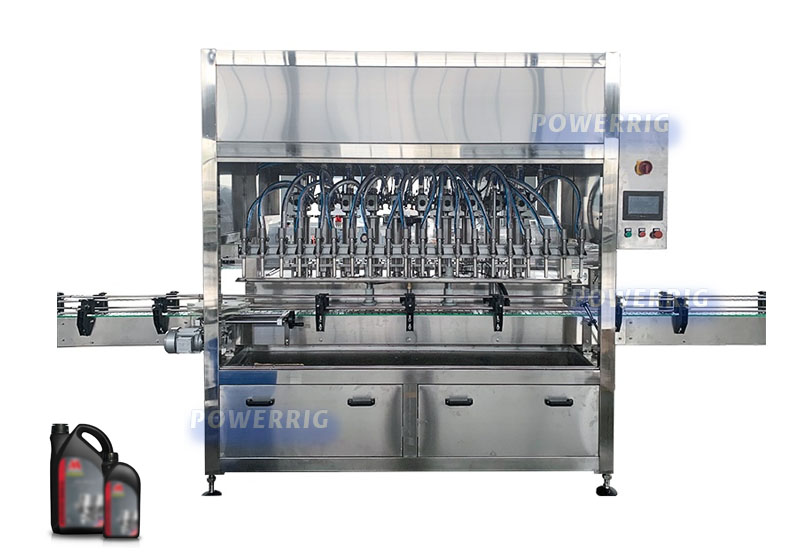

ZF20 Automatic Lubricant Oil Filling Machine ( Speed 1-4000 bottles per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
This machine is suitable for filling in water and cream products, especially for high viscosity material (such as liquid soap , detergent , dishwashing liquid , oil , sauce etc.) the effect is obvious. PLC programming control, with a touch screen and man-machine interface system; automatic bottle feeding, automatic filling, automatic bottle; the servo motor drive, double screw drive, the control piston rod movement to ensure the filling stability, filling accuracy higher. It can be with the capping machine, labeling machine supporting the formation of water production line. It integrates light, machine, electricity and gas into one body. Is an easy to operate filling machine. With stable and reliable operation, high production efficiency, strong adaptability.
This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.
1. Adopt PLC programmable control system with touch screen interface.
2. Automatic bottle feeding, automatic filling, automatic bottle.
3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
4. Adopt double-ball screw rod filling the filling nozzle dive
5. It can be used with capping machine, labeling machine supporting the formation of the production line
6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7. Having a stable and reliable operation, high production efficiency, strong adaptability.


Powerrig Machine is one of the toppest lube oil filling machine, lubricant oil filling machine, lubricant filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.








Filling head

20 heads

Filling volume range

200ml-2500ml

Production speed

≤4000 Bph basis on1L bottle

Voltage

220V/380V

Power

3.0Kw

Suitable bottle’s diameter

Ф40mm-Ф100mm

Filling error

≤±3‰

Work pressure

0.55Mpa-0.65Mpa

Size

2800mm × 1400mm× 2500mm

Weight

1000 kg

Touch screen

Canada xinjie color

PLC

Schneider

Solenoid valve

Taiwan Airtac

Optoelectronic system

OPTEX

Micro differential pressure switch

Netherlands

Servo motor

Taiwan TECO

Air source treatment

Taiwan Airtac

Button and low voltage electric appliance

Schneider

Ball screw

Taiwan

Reducer

Taiwan VGM

Switching power supply

Taiwan meanwell

Material

Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel
