Bottle Jar filling machine
Automatic Edible Oil Filling Machine ( Speed 3200 bottles per hour )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

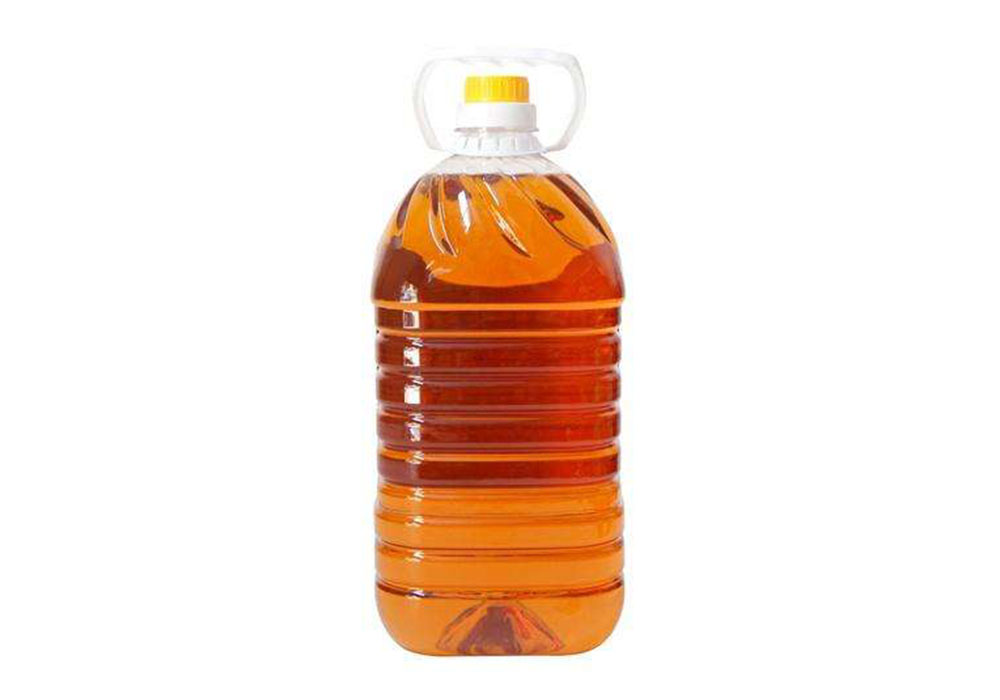

This ZF16 Automatic Bottle Filling Machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Syrup, Detergent, Honey, Shampoo, Lotion, Lubricant oil, etc.

The machine adopts PLC control, according to the filling bottle, fixed discharging mouth, the rest all operation can be finished on a touch screen. In addition to have common automatic servo piston filling machine advantages, also the widened the range of filling material. Such as filling material contains particles, long strips of solid content, also can be a very effective filling.

The installation can be provided by the we Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with we Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer to the customer for operation and maintenance procedure.


Powerrig Machine is one of the toppest edible oil filling machine, edible oil bottle filling machine, edible oil bottle packing machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.



Filling Head

The oil is put into the material cylinder, and the piston to pump the oil into the measuring cylinder. Then the piston moves up to send the oil to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.
(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)




the three-way valve

the three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.
Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling


        Conveyor belt
When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.
This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap













Thank you for the reading this article,

you can also check video for:

→ Application ←

→ QC Adjustment ←

Filling head

16 heads

Filling type

Gravity

Filling capacity

100ml- 5000 ml

Production speed

It can achieve 3200 bottles per hour

Power   ?supply

220V/380V ? Single-phase

Power

2Kw

Suitable bottle size

Ф40mm-Ф100mm

The measurement error

≤±0.5%

Working pressure

0.55Mpa-0.7Mpa

Dimension

2440mm × 1240mm × 2350mm

Gas consumption

0.9m3/min

Machine weight

700 kg


Touch screen

Canada X inje color screen

PLC programmable

Schneider France

Solenoid valve

Taiwan Yadeke

Photoelectric system

Japan stately

Differential switch

Holland

Source

Taiwan Yadeke

Button and other low-voltage
electrical appliances

France Schneider

Reducer

Taiwan VGM

Alarm

R eal-time fault alarm ?and emergency stop automatically

Material

Use 316 stainless steel ?i n contact with the material ,
the other main parts are made of 304 stainless steel

Sealing ring

U se of carbon PTFE fiber materials,
anti- corrosion,wear ? resistance, good sealing
