Product feature:

1. Simple structure in linear type ,easy in installation and maintation.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization,no pollution
4. Self bottle loaded
5. Stainless steel body, neat and beautiful

Product details:

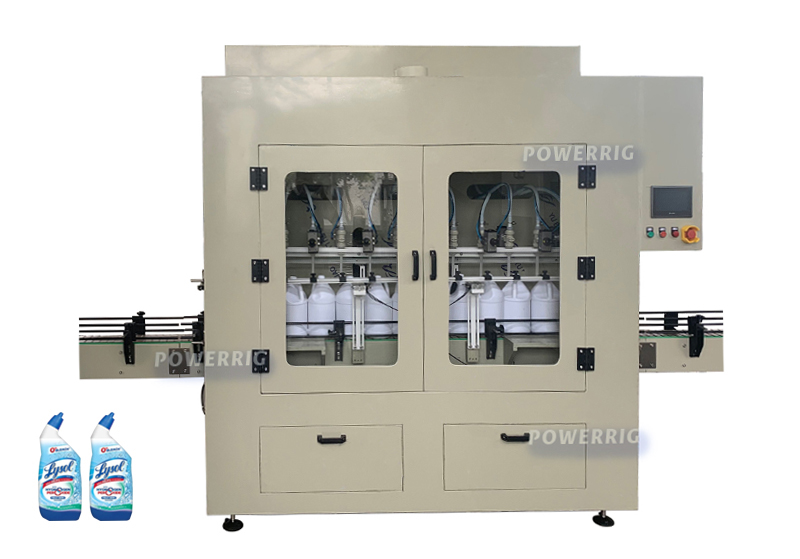

The chemical detergent liquid filling machine is used for filling free flowing, non foaming, non flammable chemicals detergent because of lower relative capital cost and flexibility of container size and geometry.

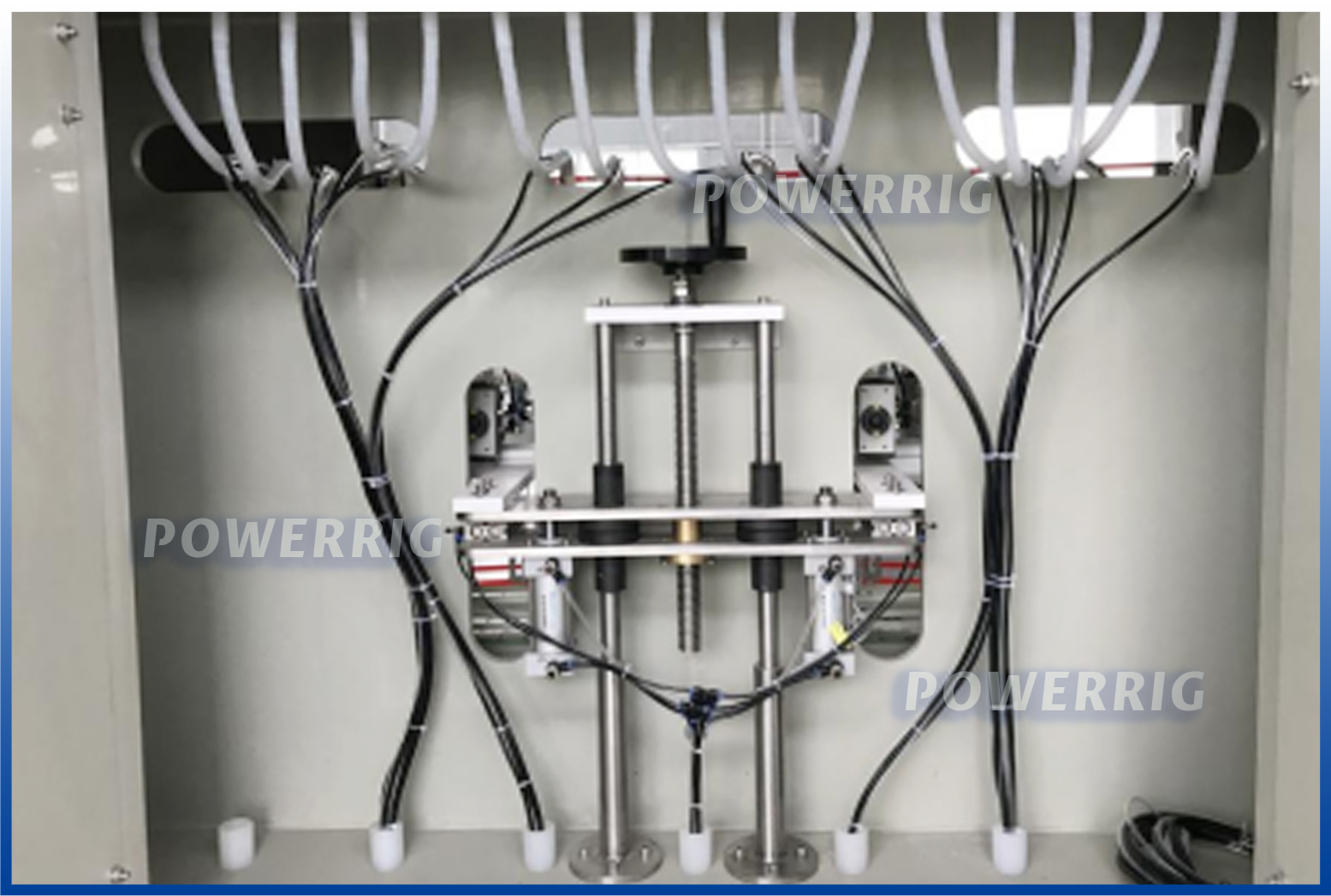

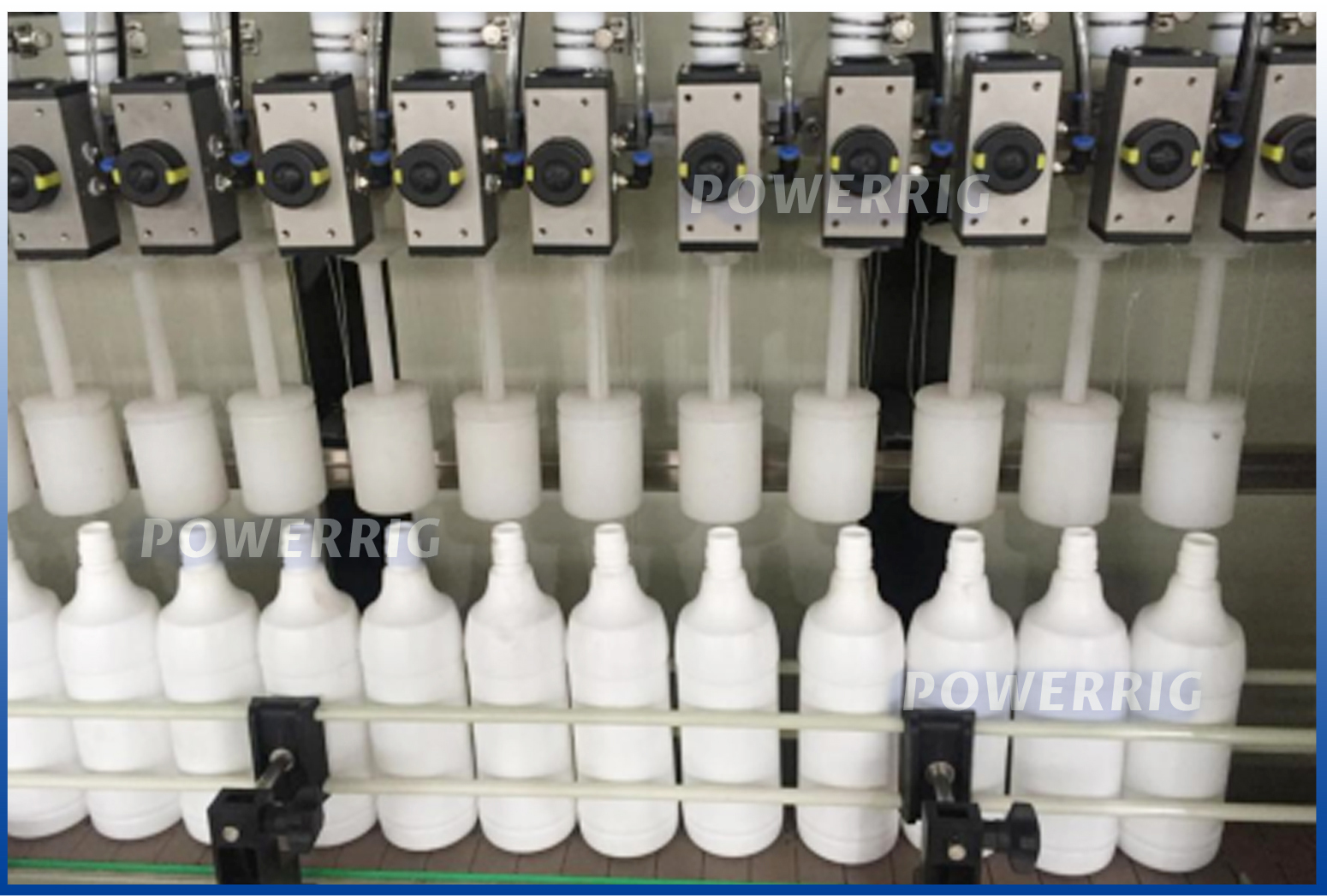

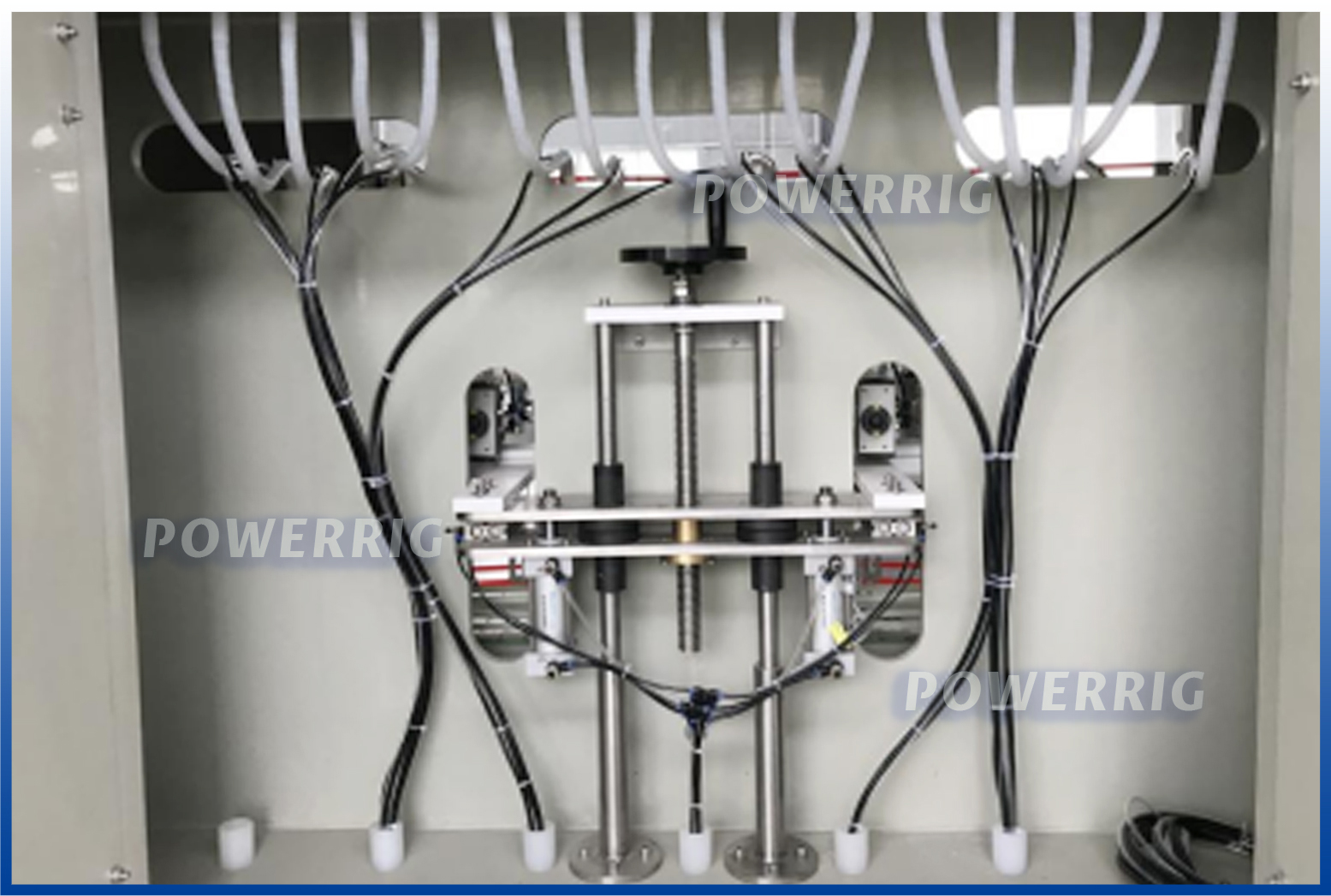

Filing nozzle:add bottle fix device on the filling nozzle part, ensure when filling material, the bottle is fix in a right position, the filling nozzle use PP material customized, anti-corrosive and anti-drop. Length can customize according to samples. And the filling nozzle can be customized according to client’s requirements.

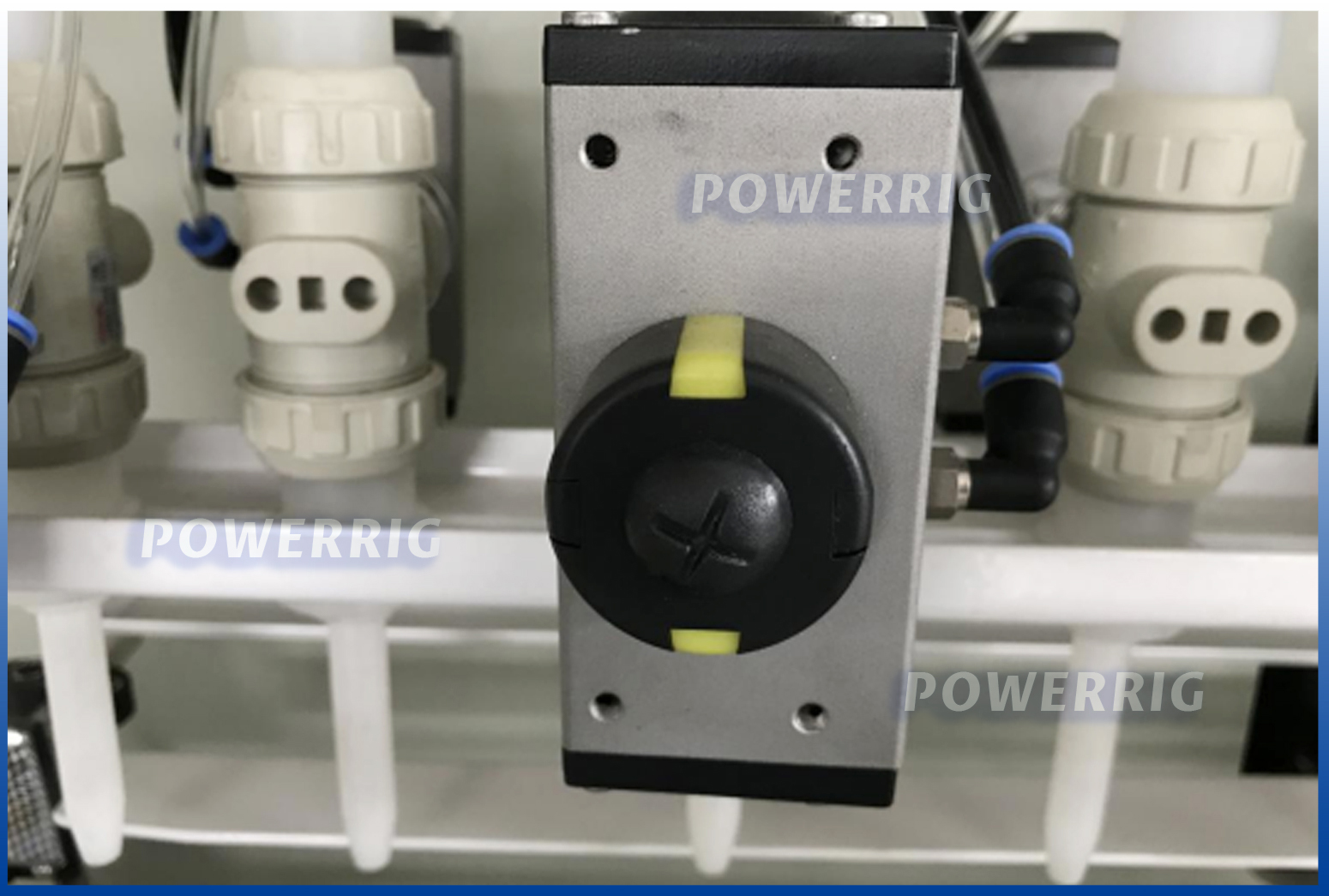

Filling valve:adopting VAA filling valve with high filling precision and no leak and corrosion.



Filling pipe:long Life Anti Corrosive filling pipe to prevent corrosive liquid to break the pipe.



Touch screen:all operation control by PLC touch screen , like the filling volume , production capacity counting.

 Notice

if the product is foamy, the time gravity filling machine may not be as efficient as the overflow filling machine for especially with small openings. Although time gravity filling machines can be configured with subsurface and "bottom up fill" filling nozzles to control foam in smaller containers, this configuration does reduce throughput. On large containers filling either foamy or non foamy chemical products, the time gravity filling machine with subsurface filling capability is a very practical machine to use since the overall throughput requirement on bulk containers is usually low. Time Gravity Filling Machines are also preferred where it is not practical to pressurize or recirculate dangerous chemical products like corrosives or explosives. For more information about this, see the section of hazardous location and corrosive filling machines.



Powerrig Machine is one of the toppest plastic bottle filling machine,plastic bottle packing machine,plastic bottle packaging machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

•
•
•



•



Filling Heads	12 heads
Min Filling Volume	500ml-5000ml
Production Speed	2000 Bph(basis on 5L bottle) 3000-5000Bph (basis on 1L)
Voltage	220V/380V
Power	1 kw
Application Bottle Type	1-5L different shape bottles
Filling Error	≤±0.5%
Work Pressure	0.55Mpa-0.65Mpa
Size	2000mm × 1000mm× 2200mm
Weight	700 kg

Name	Brand
Touch Screen	Canada Xinjie
PLC	Schneider France
Frequency Conversion	Schneider France
Pneumatic Valve	UAA USA
The Electromagnetic Valve	AirTac Taiwan
Air Cylinder	AirTac Taiwan
Air Source	AirTac Taiwan
Photovoltaic Systems	OPTEX Japan
Differential Pressure Switch	Johnson USA
Switching Power Supply	Mean Well Taiwan
Machine Frame Material	Use PVC Polypropylene material make, the material of our machine’s tank is Acid and alkali corrosion resistant material can resistant Acid and alkali and corrosion.

•
•
•
