An aluminum tube filling and sealing machine is mainly used for aluminum tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical etc.

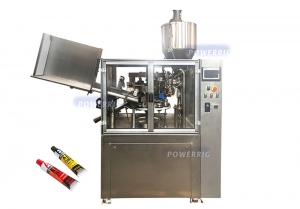

This MIC-L60-I AUTO ALUMINUM TUBE FILLING & SEALING MACHINE WITH MATERIAL PRESSING MACHINE is pneumatic controlled, with 1 filling head and a drum press. It has total 12 positions and it feeds the tube into a rotary indexing table, orients the tube then fills and seals with either heat seal and trim, or fold and crimp for metal tubes. Suitable for a wide range of applications, tube filling and sealing equipment can fill creams, lotions, food products, pharmaceuticals, greases, gels, glues, pastes, and even, on occasion, powders. All of our automatic tube filling and sealing machines include automatic tube loading, orientation, filling, sealing, and coding for plastic or metal tubes with speed ranges from 30 to 80 tubes per minute.


1.With 12 working stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Aluminum tube, ALU tube, plastic tube and laminated tubes. It is a multi-purpose machine.
2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4.According to the different length of the tube, height of tube chamber, tube hopper can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

7.Three-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.



•



Weight	1200 Kg
Dimension	1900*1400*2000mm
Power	220V/50Hz
Motor	2.2 Kw
Filling Quantity	3-20ml,15-75ml, 75-250ml
Capacity	50-60 tpm

Name	Brand
Framework	SUS 304 Stainless steel
Junction Box	CZ Explosion-proof
Button	CZ Explosion-proof
Main Servo Motor	Siemens (Explosion-proof One Zone)
PLC	Siemens
Stepping Motor	Siemens (Explosion-proof One Zone)
Stepping Drive	Siemens
Color Mark Sensor	P+F, Germany
Approch Switch	P+F, Germany
Media Relay	Siemens
Magnetic Valve	SMC, Japan
Divider	Yddex, Shangdong
Pneumatic Elements	SMC, Japan
Servo Pump for Filling	Micmachinery
Bearings	FAG, Germany

•
•
•
