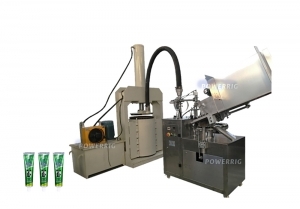

This MIC-L45-I auto aluminum tube filling & sealing machine is pneumatic controlled and has total 16 positions for filling and sealing. And materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste RTV silicone etc., are all applicable.



This machine function is:

1.      Consists of tube feeding system, orientation system, filling system, internal-heating system, outside heating system, Sealing and batching system, end cutting system, ejection system.

2.      Adopt PLC, photo sensor, rotary plate controlling system.

3.      Adopts slot wheel dividing system to drive the turntable to do intermittent movement

4.       Filling measurement is accurate. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very tidy.

5.      This machine has stable performance and work without any noise and pollution.

6.      The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.



automatic tube filling machine and sealing machine is used mainly to liquid material into tube with fixed quantity and seal the tube .It is widely used for the packing of products of pharmace, foods, and chemical industy.
Work process:
The machine manually put the metal tubes{max 16 tubes} into the tube-holding base. Change angular potion of each tube by means of meachanical transmission. Photoeletric detartvice is used to detect the position of tube and if there is any tube in right position, to starts to fill the tube with fixed quan-tity ,the tube will then be dual-sealed, and with a number printed on the surface the tube is finally ejected.
Features:
The machine, with a controllable filling volume or quantity, is featured with a reliable performance. The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfect and reliable sealing can be reached. The parts which touches material is made of stainless steel.



•



Weight	800 Kg
Dimension	1950*800*1850mm
Power	220V/50Hz
Motor	2.2 Kw
Filling Quantity	3-20ml, 15-75ml, 75-250ml
Capacity	40-45 tpm

Name	Brand
Framework	SUS 304 Stainless Steel
Button	Schneider
Main Motor	QIPENG, China
PLC	Panasonic
Stepping Motor	Japan EAST
Stepping Drive	Japan EAST
Color Mark Sensor	Panasonic
Approch Switch	Omron
Media Relay	Omron
Magnetic Vavle	Taiwan AIRTAC
Divider	China, Shangdong
Heating Tube	China
Pneumatic Elements	Taiwan AIRTAC
Pump for Filling	Own Produce (MIC)
Hopper (35L *2 )	SUS304

•
•
•
