Toothpaste Filling Machine
R45 Toothpaste Tube Filling And Sealing Machine ( Speed 25-45 tubes per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

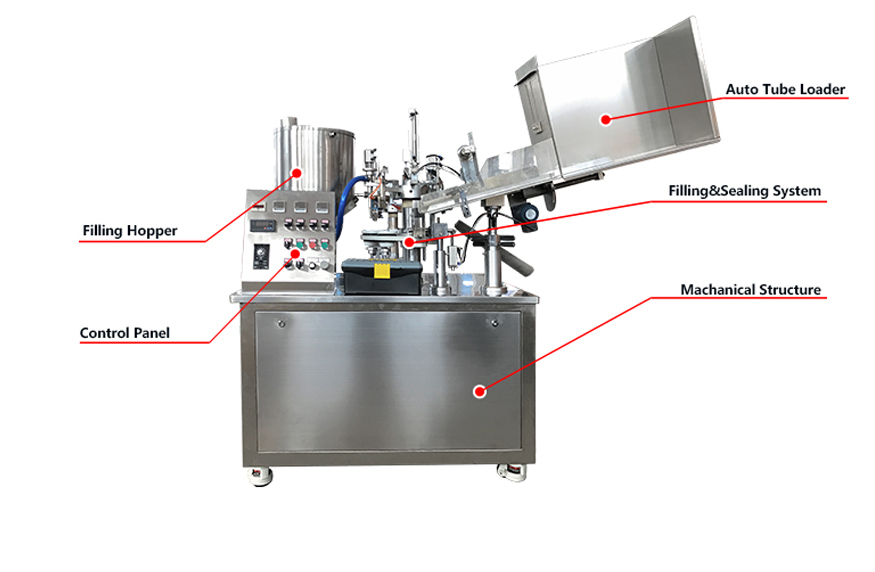

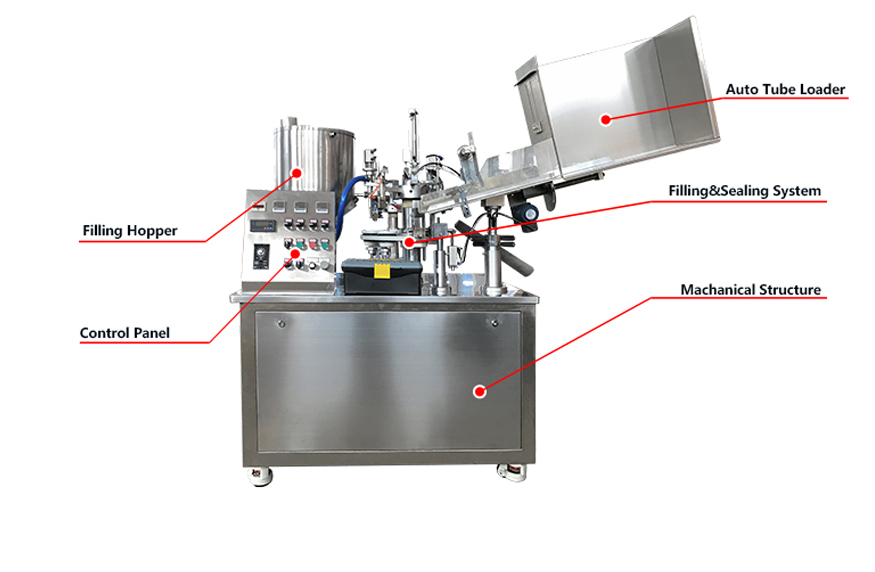

R45 toothpaste tube filling and sealing machine with inside and outside heating way


Introduction: The R45 toothpaste tube filling and sealing machine is applicable to laminated tube and plastic tube. Steps for running a machine is from automatic loading, automatic filling, internal and external heating, sealing, printing the code, cutting the tail and tube unloading. It can also be used to seal all different kinds of shapes or make the hole punch.

This machine has widely used in the industries of daily chemical industry, medicine, food, chemical industry, cosmetics such as toothpaste, facial foam, hand cream, bb cream, shoe oil, adhesive, peanut butter, meat paste, etc.
Dust cover is optional. It play a good role in medicine, food and other special industries. And ideal machine for soft and composite tube filling and sealing.


Features:

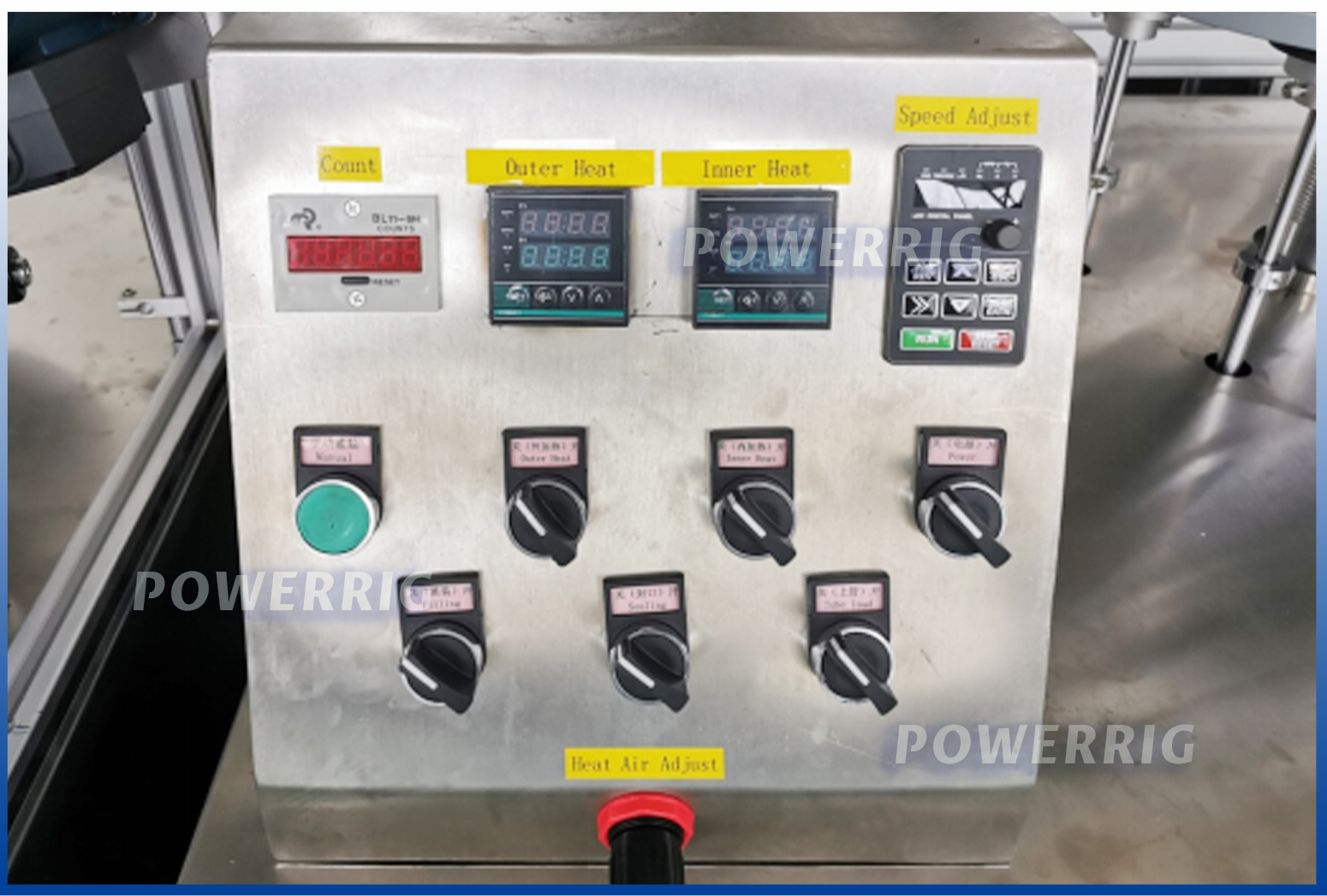

1.Using touch screen and PLC control system, stable performance, convenient operation and easy to maintain.
2.One year quality assurance and free service life-long.
3.Automatic tube loading, filling, heating, sealing, cutting and tube unloading.
3. All contact parts are made of Stainless Steel #316, complying with GMP requirements.
4. High accuracy and speed.

This machine is suitable for filling, sealing, printing and cutting of plastic tubes of various specifications. The shape of the sealing tail is beautiful and neat, the sealing is firm, the measuring accuracy is high, and the stability is good. According to customer material viscosity could be heating and stirring hopper and diving filling system.


Powerrig Machine is one of the toppest toothpaste filling machine, toothpaste packaging machine, toothpaste tube filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.


 We will recommend the right tube filling sealing machine based on your tube material.









Thank you for the reading this article,

you can also check for:

→ Application ←
→ QC Adjustment ←
→ Manual ←

Voltage

110V/220V/380V

Power

1.1kw

Heating Power

400w*2

Air Pressure

0.6-0.8Mpa

Production Capacity

25-45 tubes/min

Filling Volume

1-300ml

Filling Error

±0.5g

Material

SS304/316

Dimensions

1500*700*1800mm

Weight

475KG

Parts

Brand

Main Motor

Wu XI Qi Peng

PLC

Panasonic JAPAN

Stepping Motor

East Japan

Stepping Drive

East Japan

Sensor

Germany Sick

Approach Switch

BFNFC

Intermediate Relay

Schneider

electromagnetic Valve

Si Mai Ge

Encoder

Omron

Mixing Motor (Optional)

XiangGang Ease

Air Cylinder

Si Mai Ge

Bearing

Nsk

Button

Schneider

Air Switch

CHNT

Power Switch

Omron

Temperature Control

HuoYU

Filling Machine
