This E-Liquid filling machine is suitable for:

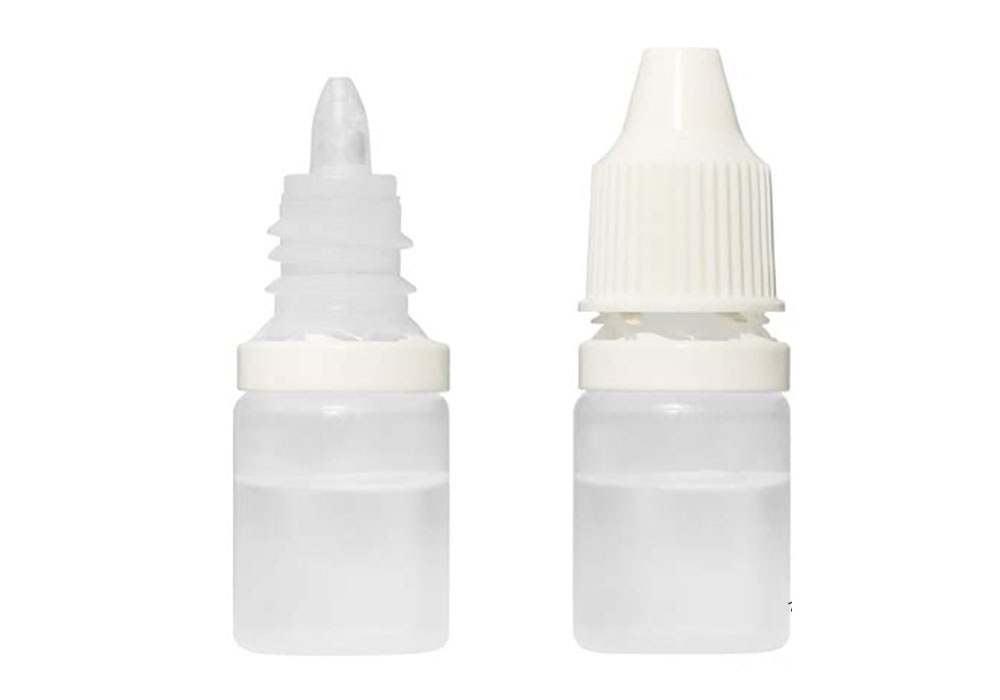

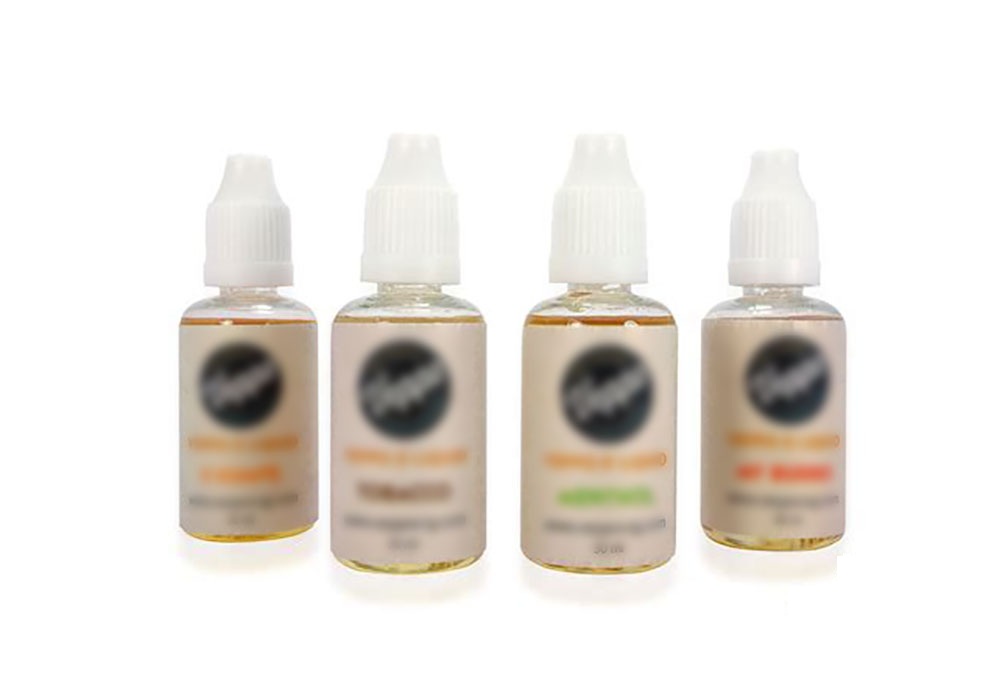

Daily chemistry, cosmetics. Smallglass bottles and plastic bottles such as electronic liquids, essential oils, syrups, etc.



This machine function is:

1. Man-machine dialogue system setting,visual convenient operation ,accurate filling level
2. The mainframe running speed is step frequency conversion.
3. The product quantity can be controlled.
4. Multi-failure prompt function (such as depression, no filling and no inserting plug etc).
5. Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.





This machine is two in one filling machine, it can be used for both plastic bottle and glass bottle.

This machine is mainly available to fill essential oil, eye-drops, syrup, e-liquid and other dose liquid into various round and flat plastic bottles with the range from 50-120ml. High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down; constant turning arm screws caps; piston pump measures filling volume; and touch screen controls all action.

No bottle no filling and no capping.

The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

Powerrig Machine is one of the toppest syrup filling machine, automatic syringe filling machine, syrup bottle filling machinev factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.



•



Thank you for the reading this article,

you can also check for:

→ Application ←

Filling R ange	20-120ml
Capacity	20-30 Bottles/Minute
Voltage	220V/380V
Filling Precision	≤±1%
Capping Rate	≥99%
Air Supply	1.3 m3/h 0.4-0.8Mpa
Dimension	1200*1000*1800mm
Weight	550kg

Name	Brand
Button	Schneider
AC Contactor	Schneider
Relay	Schneider
Frequency Converter	Taian
Motor	Qi peng
Air Cylinder	AIR TAC
The Electromagnetic Valve	AIR TAC
Bearing	NSK
PLC	Schneider
Touch Screen	Schneider
Photoelectric Detection	Sick

•
•
•
