Silicone filling machine

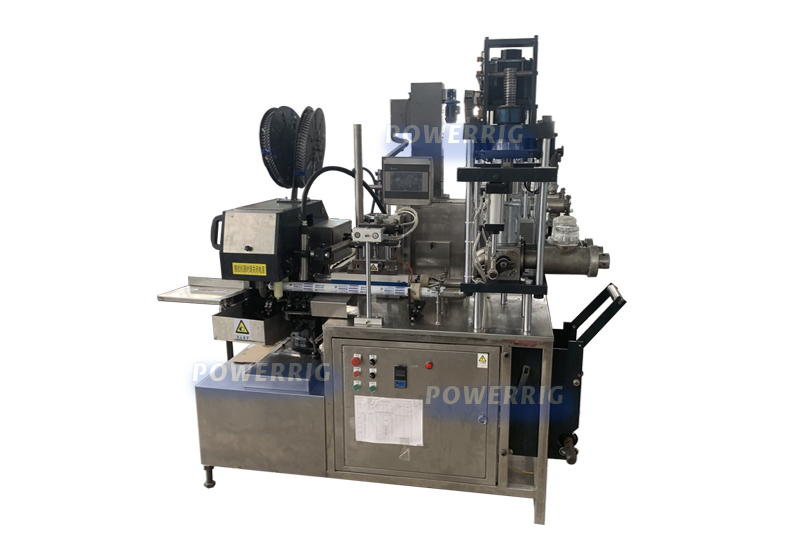

RJ1 Silicone Filling Soft Packing Machine ( Speed 10-25 pieces per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

The RJ1 Silicone Filling Soft Packing Machine produced by Changzhou Baowo Lake Machinery Technology Co., Ltd. This machine is researched and developed by our company on the basis of absorbing foreign advanced technology. It is widely used in chemical, pharmaceutical and food industries. sealant etc.


1. Automatic control, aluminum film forming/heat sealing/coding/quantitative filling/buckle ligation/cutting/unloading can be completed by 1 machine, and can be operated by 1 worker.


2. The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of each transmission part, high equipment stability and fast response.


3. The hydraulic discharge method ensures the discharge efficiency and stability of high-viscosity materials, and the discharge is fast and easy to maintain.


4. Using servo motor to control the quantitative cylinder system. High filling precision, filling volume can be adjusted at any time on the screen,


5. The mechanical snap forming system is controlled by servo motor, which has good stability and high speed.


Powerrig Machine is one of the toppest silicone filling machine, silicone sealant filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.









Type

RJ-1/RJ-1A

Power Supply

380V/50HZ &220V

 Air Supply

0.6-0.8 MPa

 Air Consume

<0. 3m 3/min

Filling Volume

MAX 600ml

 Volume Precision

≤± 0.5℅

Productivity

10~25pcs/min

Tube Diameters

￠ 44mm/￠ 46mmm/￠ 48mm

Dimensions (L × W × H)

1950× 1150*1950

Weight(kg)

650KG


Product name

Model Specifications

controller

DVP-40EH00T3

servo motor

ECMA-F11830RS

servo motor

ECMA-E21315RS

touch screen

DOP-B07S515

Temperature control module

DTC100V

Inverter

VFD007EL43A

Encoder

TRD-2T1000BF

Photoelectric switch

EZ3-D62

proximity switch

IM12-04NNS-ZW1

relay

RU2S-D24

switching power supply

NES-100-24

cylinder

SC40*75S

cylinder

ACQ40*20

cylinder

ACQ40*25

cylinder

MI25*10

cylinder

MI25*30U

cylinder

SCJ32*50-30S

cylinder

MI10*20

The electromagnetic valve

4V210 D24
