Silicone filling machine
L45 Silicone Tube Filling Machine ( Speed 40-45 tubes per minute )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

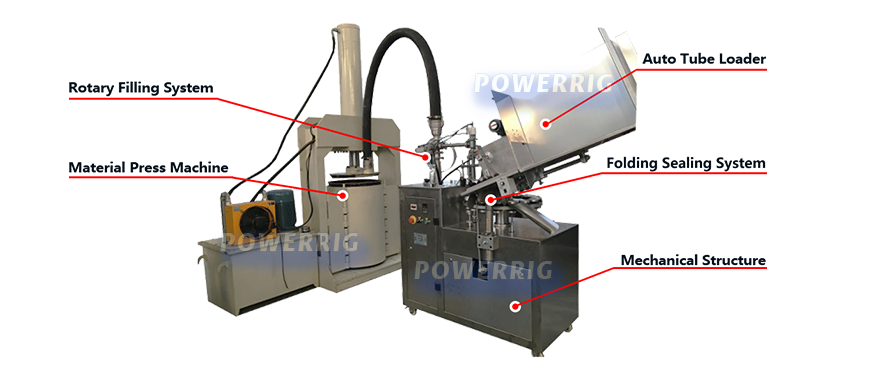

This L45 Silicone Tube Filling Machine is used for the metal and aluminum tube filling and sealing. It has been widely used in pharmaceutical, cosmetics,  chemical, adhesive and other industries, the main materials such as such as paste, ointment, creams, pigments, adhesives, AB glue, epoxy glue, hair dye, shoe polish, toothpaste, silicone etc., are all applicable.


Working process:

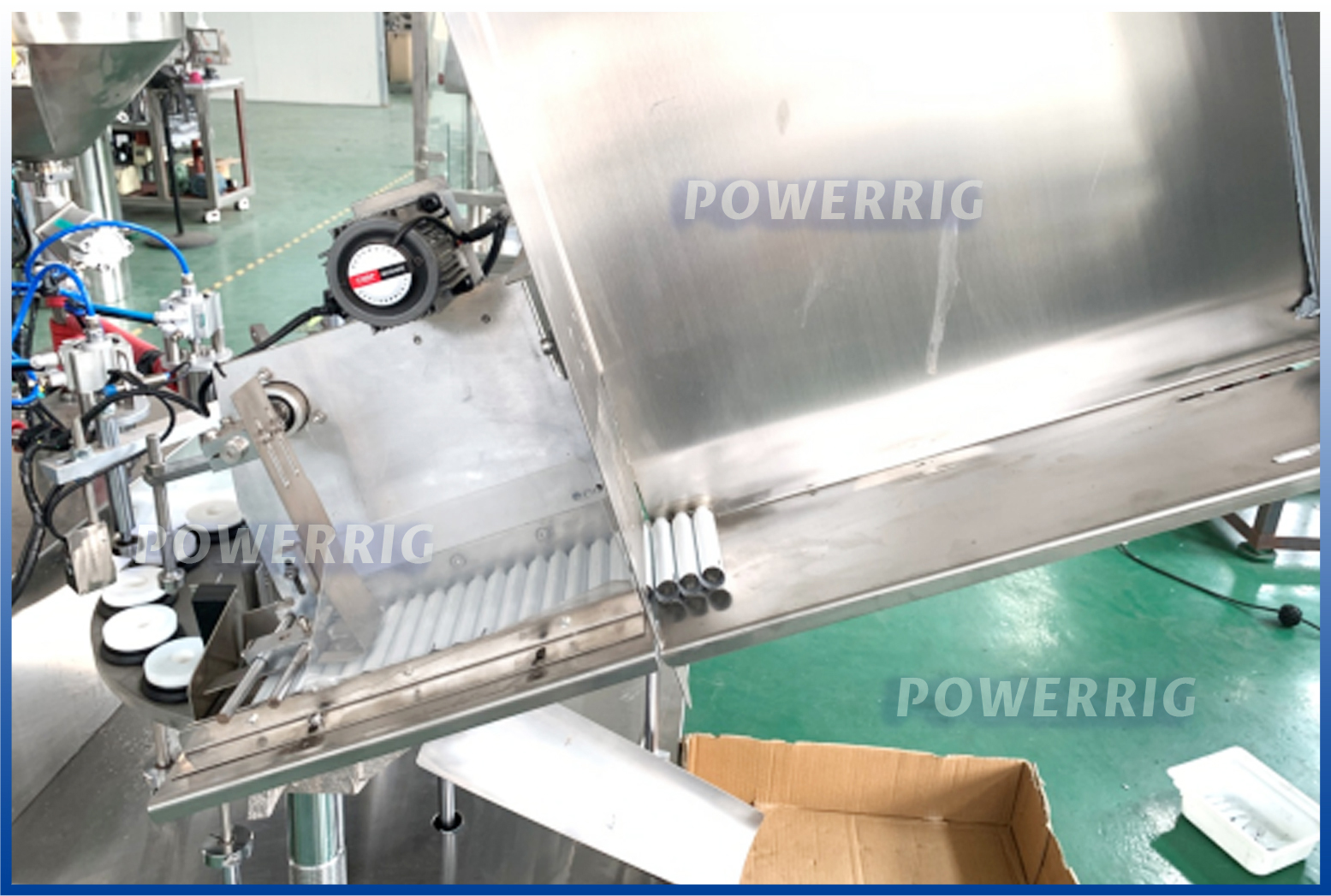

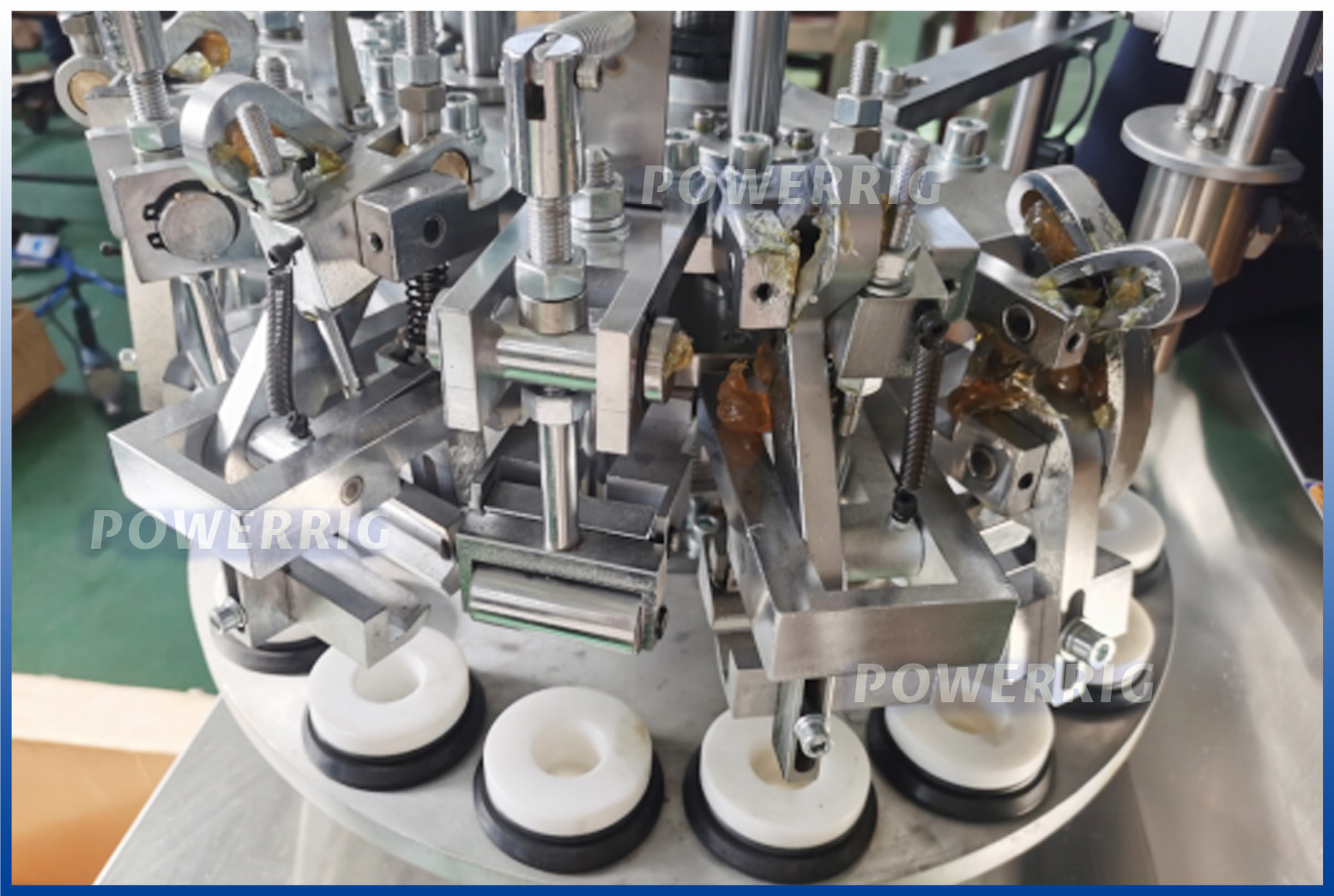

The tubes are put into the molds automatically-benchmarking-filling-4 times folds sealing(Flatten-bend the bottom180°-clamp the bend part-bend 180°again-clamp the bend part again-bend the bottom 180° at the opposite direction-clamp again)-then output finished tubes.


Features:

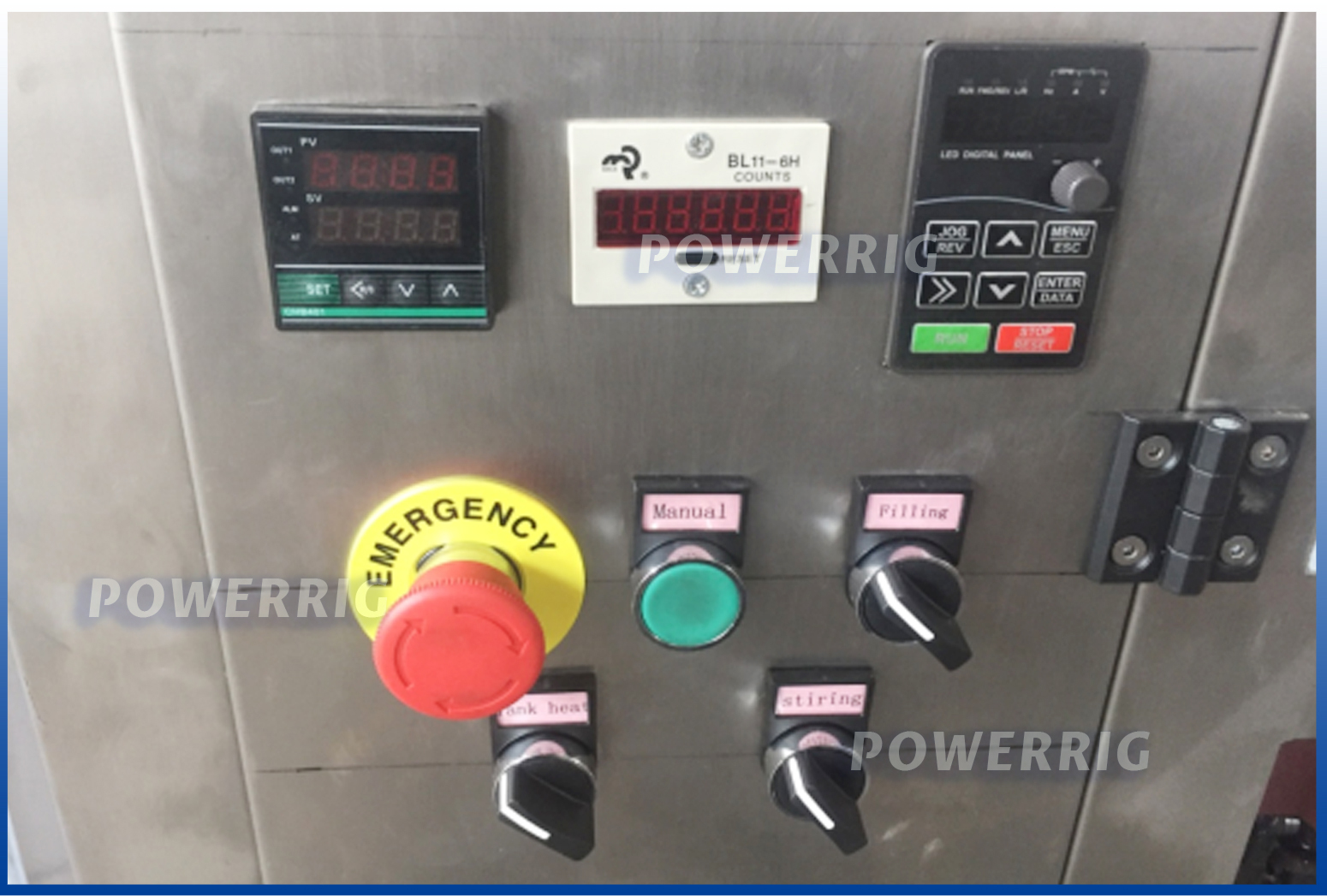

1. Adopt PLC to control, touch screen or control panel for option, simple operation, clear at a glance, saving time and high efficiency.

2. The tube mold is customized according to the customer's tube sample, it is simple to change the mould for different diameter of tubes. A machine can be used for multiple purposes.

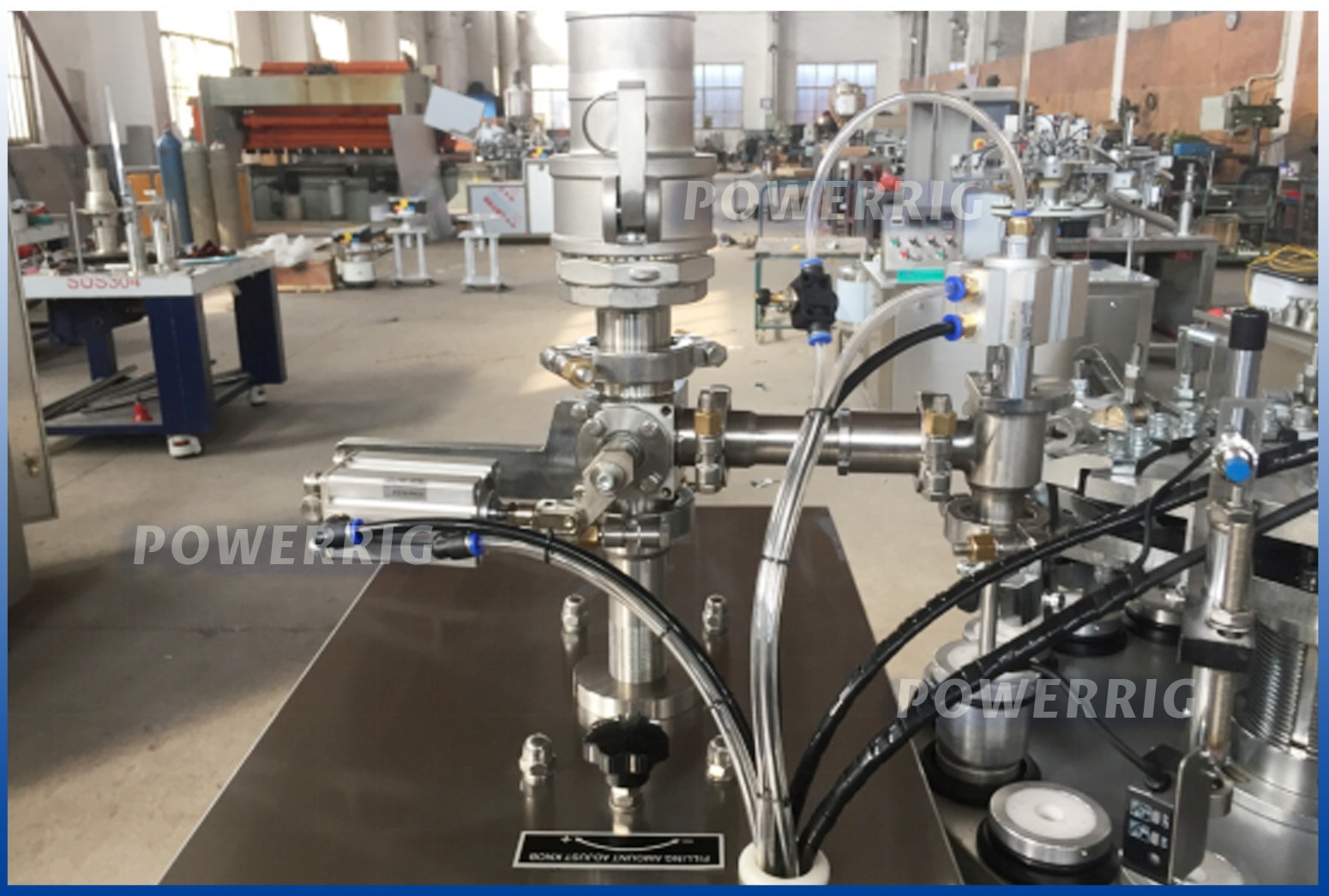

3. High accuracy for the filling and also have the feature of anti-drip.

4. Professional custom sealing method based on customer requirements, sealing is firm,

pretty and neat.

5.  This machine has stable performance and work without any noise and pollution.

6.  The machine is made of high-quality 314 or 316 stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.


Application and sample show:

There are different folding sealing ways, just based on cutomer’s perferences. Aluminum tube filling and sealing machine is popular among the different industries. The sealing effec is beautiful and neat.


For your attention:

Our machine is customized according to your tube. Before we make the quotation for you, pls kindly advise us your filling volume, tube material, how many different diameters of your tube, filling material and the production speed you need.


Powerrig Machine is one of the toppest silicone filling machine, silicone sealant filling machine, silicone tube filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.


We will recommend the right tube filling sealing machine based on your tube material.









Tube filling machine,
Tube filling machine for sale,Plastic tube filling line,Plastic tube filling machine,Manual tube filling and sealing machine,Manual tube filling machine,Automatic tube filler,Automatic tube filler and sealer,Aluminum tube sealing machine Thank you for the reading this article,   you can also check for:   Application    QC Adjustment  ←

Weight

800 Kg

Dimension

1950*800*1850mm

Power

220V/50Hz

Motor

2.2 Kw

Filling Quantit y

3-20ml, 15-75ml, 75-250ml

Capacity

40-45 tpm

Name

Brand

Framework

SUS 304 Stainless Steel

Button

Schneider

Main Motor

QIPENG, China

PLC

Panasonic

Stepping M otor

Japan EAST

Stepping D rive

Japan EAST

Color Mark S ensor

Panasonic

Approch S w itch

Omron

Media R elay

Omron

Magnetic V avle

Taiwan AIRTAC

Divider

China, Shangdong

Heating T u be

China

Pneumatic E l ements

Taiwan AIRTAC

Pump for F illing

Own Produce (MIC)

Hopper (35L *2 )

SUS304
