Rotor Pump And Emulsifier Mixer

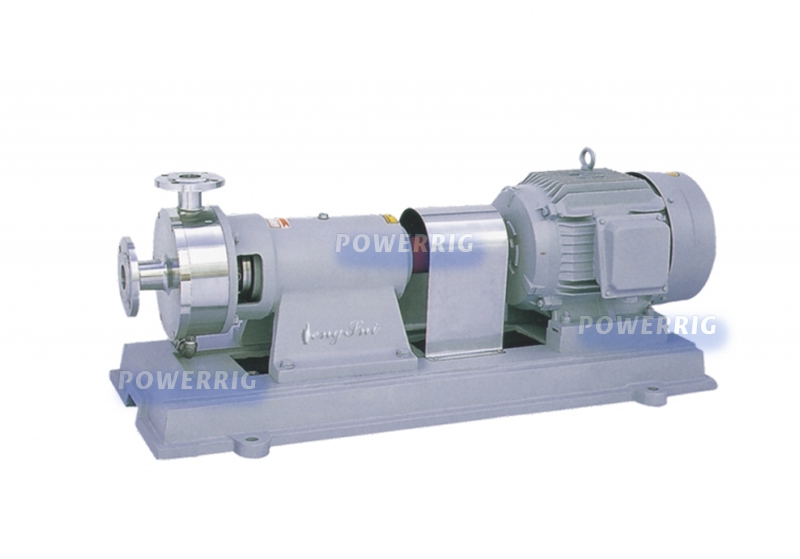

Pompa Emulsione
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

DHX1 homogeneous & emulsification pump has a set of double stators and double rotors in pump chamber.



Drive shaftof rotors is made of S.S.316,seal equipment is double mechanical seal with water flush.Pump shaft is supported by bearing housing,and link with motor through coupling.



The theory of this pup is intaking mediumfrom inlet and outputfrom outlet after homogenizing and emulsifying.

type

Power（kw）

Rotation

Speed

（r/min）

Flow

(m³/h)

Pressure

(Mpa)

D

DN

(mm)

E

DN

(mm)

L

(mm)

L1

(mm)

L2

(mm)

L3

(mm)

L4

(mm)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

n-d

(mm)

DHX1-100

2.2

2900

1

0.05

φ   25

φ   15

300

169

220

255

530

285

250

250

150

4-   φ   14

DHX1-120

3

2900

3

0.1

φ   40

φ   32

850

198

700

318

1093

430

370

379

200

4-   φ   24

DHX1-140

5.5

2900

5

0.1

φ   40

φ   32

850

198

700

318

1114

430

370

379

200

4-   φ   24

DHX1-165

7.5

2900

10

0.15

φ   50

φ   40

1050

160

900

273

1248

475

415

486

287

4-   φ   24

DHX1-185

11

2900

15

0.15

φ   65

φ   50

1050

217

900

351

1340

475

415

502

287

4-   φ   24

DHX1-200

15

2900

20

0.15

φ   80

φ   65

1200

195

1050

349

1500

550

490

496

260

4-   φ   24

DHX1-220

18.5

2900

30

0.15

φ   80

φ   65

1200

195

1050

349

1500

550

490

496

260

4-   φ   24

DHX1-240

22

2900

50

0.2

φ   100

φ   80

1200

194

1050

372

1548

550

490

545

260

4-   φ   24

DHX1-260

37

2900

60

0.2

φ   125

φ   100

1500

327

1200

532

1882

700

620

768

438

4-   φ   28

DHX1-300

45

2900

80

0.2

φ   125

φ   100

1500

327

1200

532

1882

700

620

768

438

4-   φ   28
