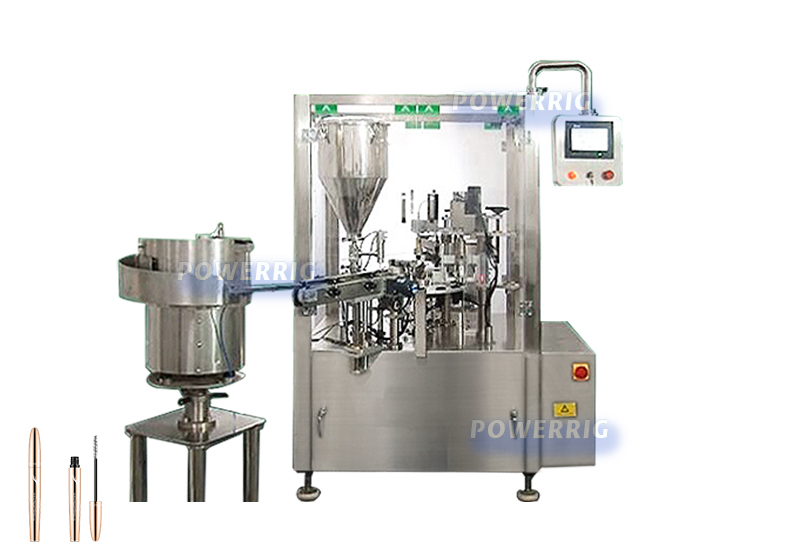

This machine is mainly used for quantitative filling of cosmetic raw materials (liquid / paste). It adopts the piston filling method. The pressure filling makes the mascara  syrup evenly in the filling process, and the charging pressure of the filling barrel strengthens the filling material flow. . Also easy to clean. Through the piston quantitative filling method, can accurately set the required capacity, and the error is small, in line with customer needs.

Mascara, lip gloss, liquid foundation and other liquid or paste raw materials, simple mode of operation, easy to clean, and a wide range of applications, for a variety of types, a variety of users with great practicality and efficiency.

This model set of mechanical, pneumatic, automatic as one of the equipment. Powerful features, such as high degree of automation, high output, are widely used, good stability, more popular.

Powerrig Machine is one of the toppest mascara filling machine, automatic mascara filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

•

  Quantitative filling, swing arm plus inner plug, swing arm plus cover, gland, servo capping

  Servo motor control. Machine running more stable, pneumatic piston filling method, filling more accuracy.

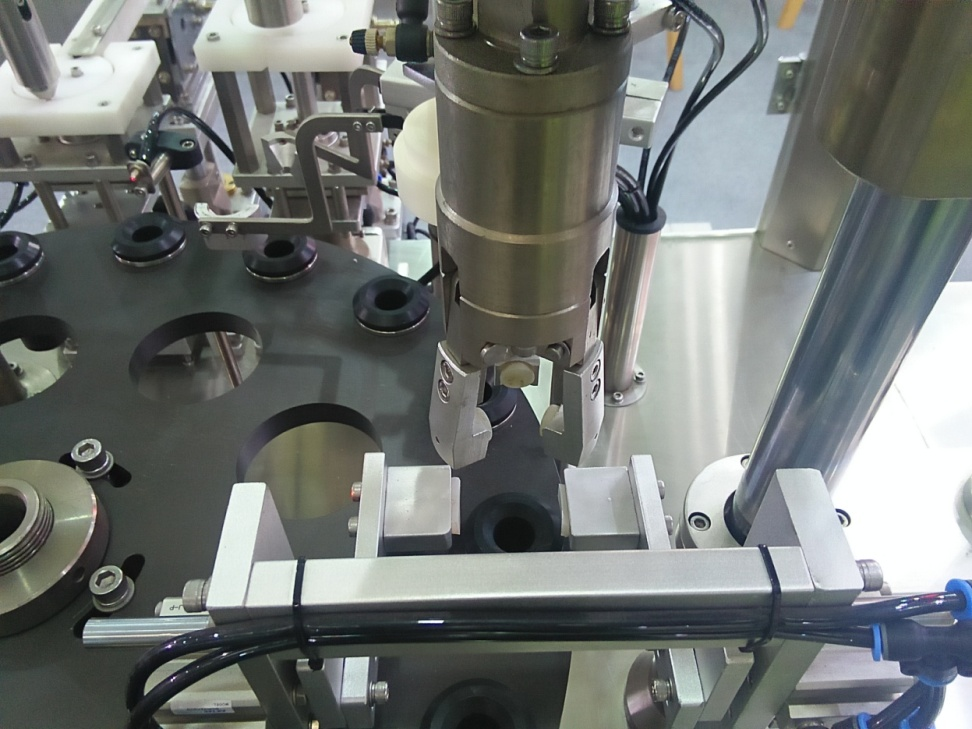

  Adopt Manipulator capping head, Tighten cap is more close.

•

  Quantitative filling (with pressurized barrel)

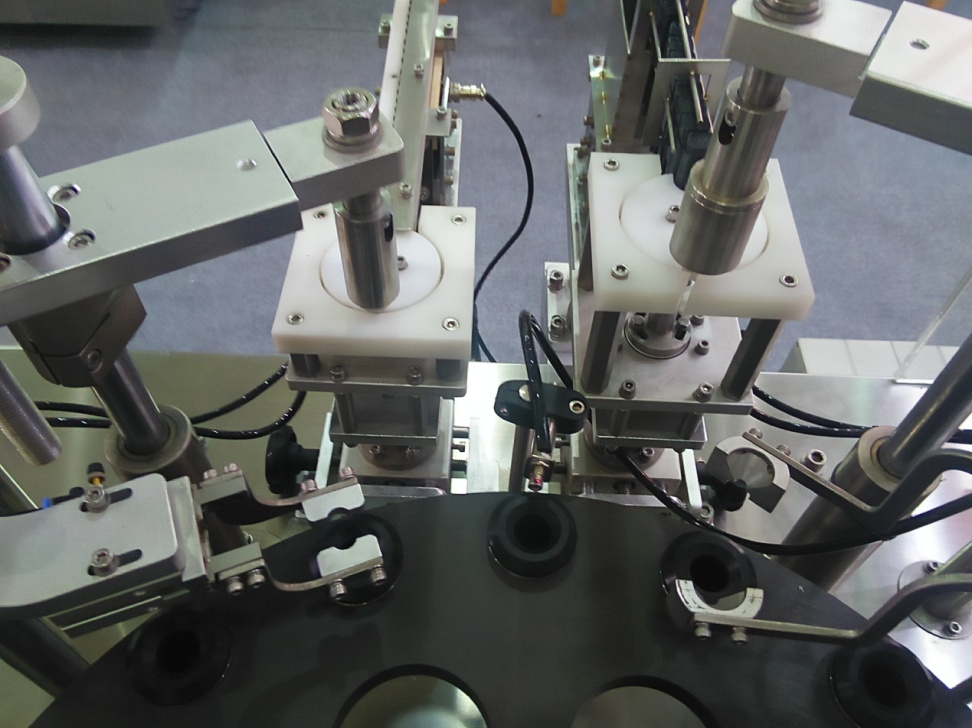

  Pneumatic piston filling method, filling more accuracy.

  Adopt piston pump control filling head, Ensure filling volume error control in +/-1%

•

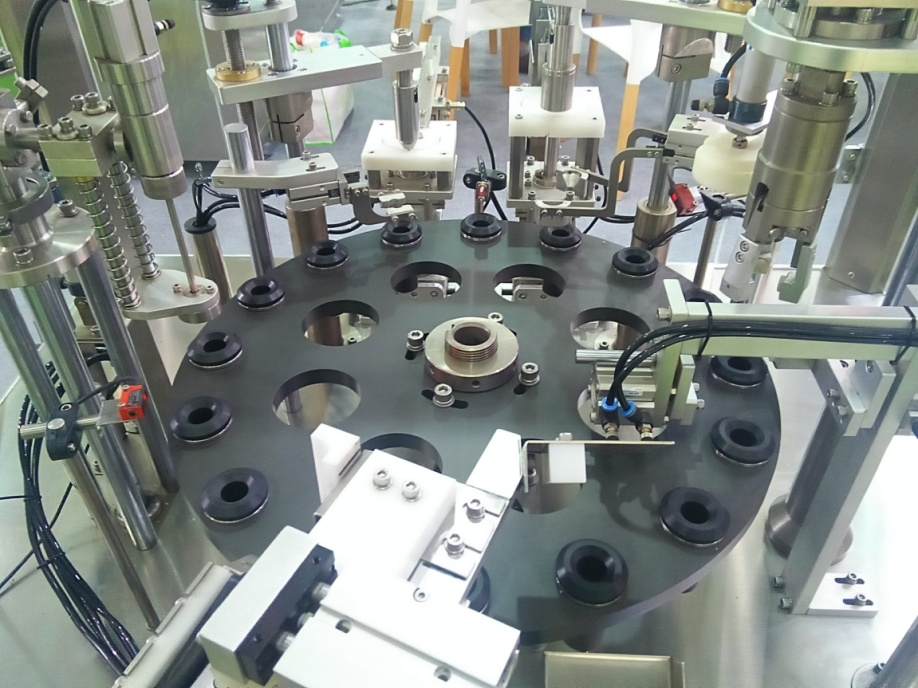

  Swing arm plus inner plug, arm and brush cover

  2 work station separated to insert inner brush and loading outside cap automatically

•

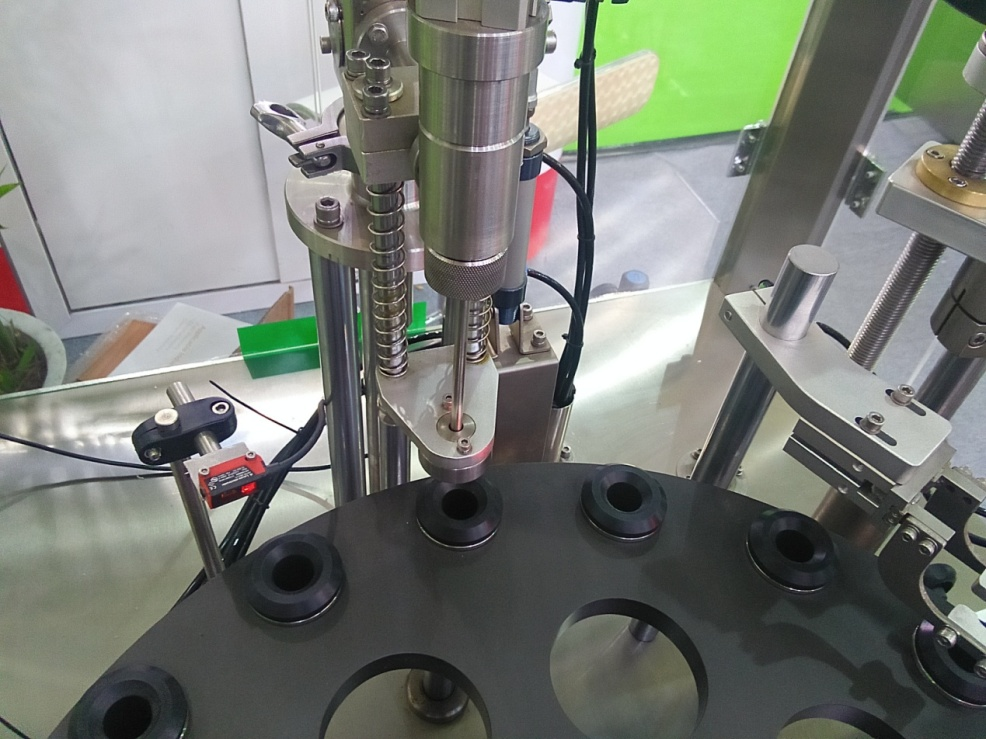

  Servo torque cap

  The torque of the capping head also can adjust

  Ensure the capping tighten is right and won ’ t scratch cap.



•



Filling nozzle	1 head Quantitative filling (with pressurized barrel)
Filling volume	2-10 ml
Filling form	Piston and vacuum pressure filling
Filling speed	40 bottle per min
Filling accuracy	+/- 1mm
Material tank / bottle table	25L / 600*300 mm length and width 2 pieces (input and output)
Controller	PLC+ touch screen
Machine Filling nozzle tank, liquid contact material	SUS 304 Medical silica gel pipe
Air pressure	pressure≥4Kg/cm2,
Flow quantity	0.11m3/min
Conveyor motor	370W adjust transducer motor
Power	1Kw 220v  single phase 5 wire
