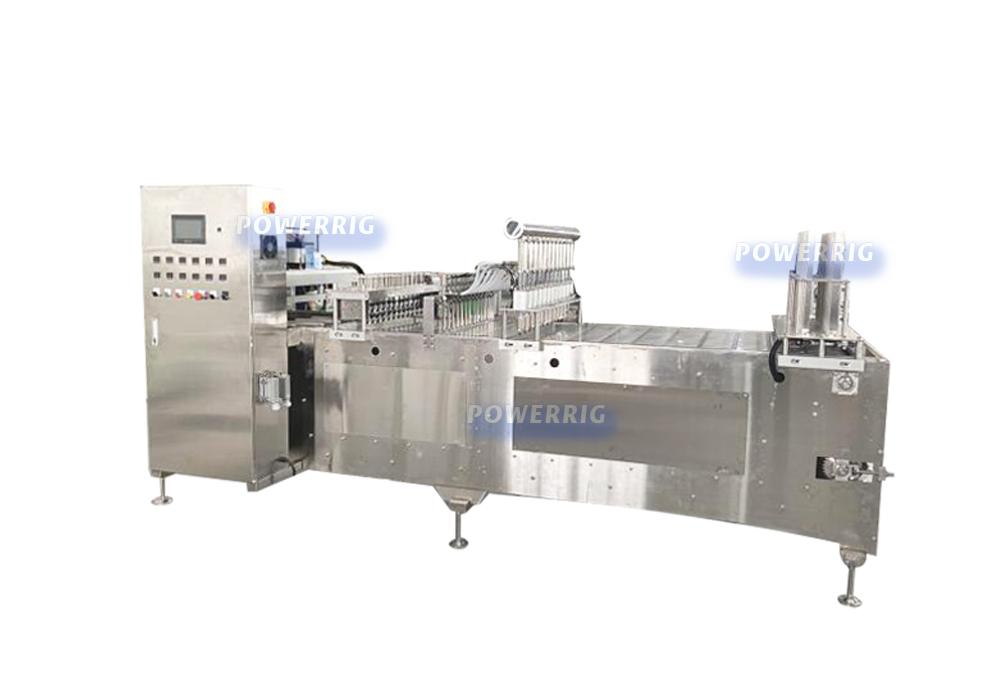

Automatic servo drive filling and sealing machine can realize empty spoon detection, automatic quantitative filling, automatic film placing, automatic heat sealing, finished products output, the capacity. The equipment according to different number of stations can achieve 5000-12000 spoons per hour, suitable for food and beverage factories of mass production requirements.

The machine adopts 304 stainless steel material as the main design, with anodized aluminum alloy parts, to ensure the machine can run for a long time in the harsh production environment such as wet oily steam, the filling system can be equipped with CIP in-place cleaning components, the body and mold can be directly washed and cleaned by water.

The machine adopts high quality imported electrical and pneumatic components, which can ensure the whole machine to run stably and reliably for a long time, reduce equipment failure, and improve the overall production capacity.

Feature:

Driven system: servo motor with gearbox for the spoon molds stepping running, it can moves the filled spoon very fast but avoid material splashing because the servo motor can start and stop with uniform velocity, and also high positioning accuracy.

Empty spoon loading function: it adopts spiral separating and pressing technology which can avoid the spoon damaging and deforming.

Empty spoon detecting function: it uses photoelectric sensor or optical fiber sensor to detect the mold have the empty spoon or not, it avoids the mistake filling and sealing if the mold without spoons, reduces the product waste and machine cleaning time.

Paste filling system: the poor flow paste material adopts split piston filling system, high filling accuracy, convenient disassembly and cleaning, simple and reasonable structure, stable operation.

Film system: this component is composed of film storage frame and vacuum sucker turning manipulator, which can automatically place the film on the filling spoon with accurate position and high stability.

Heat sealing system: the system is composed of Omron PID temperature controller and electric perm. The cylinder is the driving force. The temperature fluctuation of heat sealing is less than 2 degrees, and the sealing quality is stable.

Discharge system: it makes up by cup lifting and pulling system, faster and more stable.

Automation control system: it makes up by PLC, Touch screen, servo system, sensor, magnetic valve, relays etc.

Pneumatic system: it makes up by valve, air filter, meter, pressing sensor, magnetic valve, air cylinders, silencer etc.

Safety guards: it is optional function, it makes up by PC clear plates and stainless steel, has safety switches which protects the operator.

Powerrig Machine is one of the toppest honey packing machine, honey filling machine, honey packaging machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.



•



Model	ACFS-6A	ACFS-8A	ACFS-10A
Voltage	3P 380V/50Hz
Power	3.5Kw	4kw	4.5kw
Volume	2-20g
Capacity	3600-4300spoons/hour	4800-5700spoons/hour	6000-7200 spoons/hour
Filling Error	±0.5g
Seal size	Customize
Pressure	0.6-0.8Mpa
G.W.	900kg	1100kg	1350kg
Size	3100*850*1800mm	3100*1050*1800mm	3100*1250*1800mm



Model	DXD-300
Voltage	3P 380V/50Hz
Power	4.5KW
Capacity	50-130bags/minute
Bag size	L:50-500mm, W:35-100mm, H ＜ 30mm
Film size	W≤300mm ； roll film diameter≤350mm
Packing material	OPP, CPP, PET aluminized film, aluminum-plastic film, paper plastic, paper glue and other single or multi-layer heat sealing materials （ suggest ： the outer layer of PET 0.013mm thickness, inner layer of CPP 0.023-0.027mm thickness, composite low temperature film ）
G.W.	1400kg
Size	9500*850*1550mm

Main body	Stainless steel304
Pneumatic system	AirTac
server system	Mitsubishi
PLC	Mitsubishi
Touch screen	WEINVIEW
Thermostat PID controller	OMRON
Sensor	FOTEK , Omron
Low-voltage	Omron, Schneider, CHNT

Main body	Stainless steel  304
Bearing	NSK
Conveying sensor	Pepperl + Fuchs
Pneumatic system	AirTac
Switching power supply	Meanwell
Touch screen	Huichuan
Servo moto	Huichuan
Micro moto	Taibang
