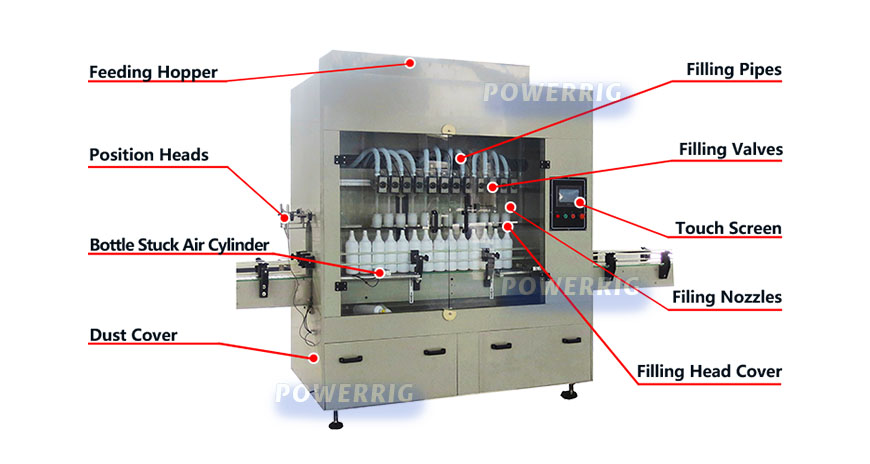

This machine combines optical, mechanical, electrical, gas in one machine. Adopt through control filling time to reach different volume filling. Filling time can be precisely controlled to a hundredth of a second. The filling process is completed under the PLC program control on the touch screen. Having a stable and reliable operation, high efficiency, adaptability, the filling volume of measurement specification can be changed within a few minutes. Filling valve use imported brands, advanced technology, sophisticated, non-drip filling phenomenon.
We will recommend the right tube filling sealing machine based on your tube material.
-

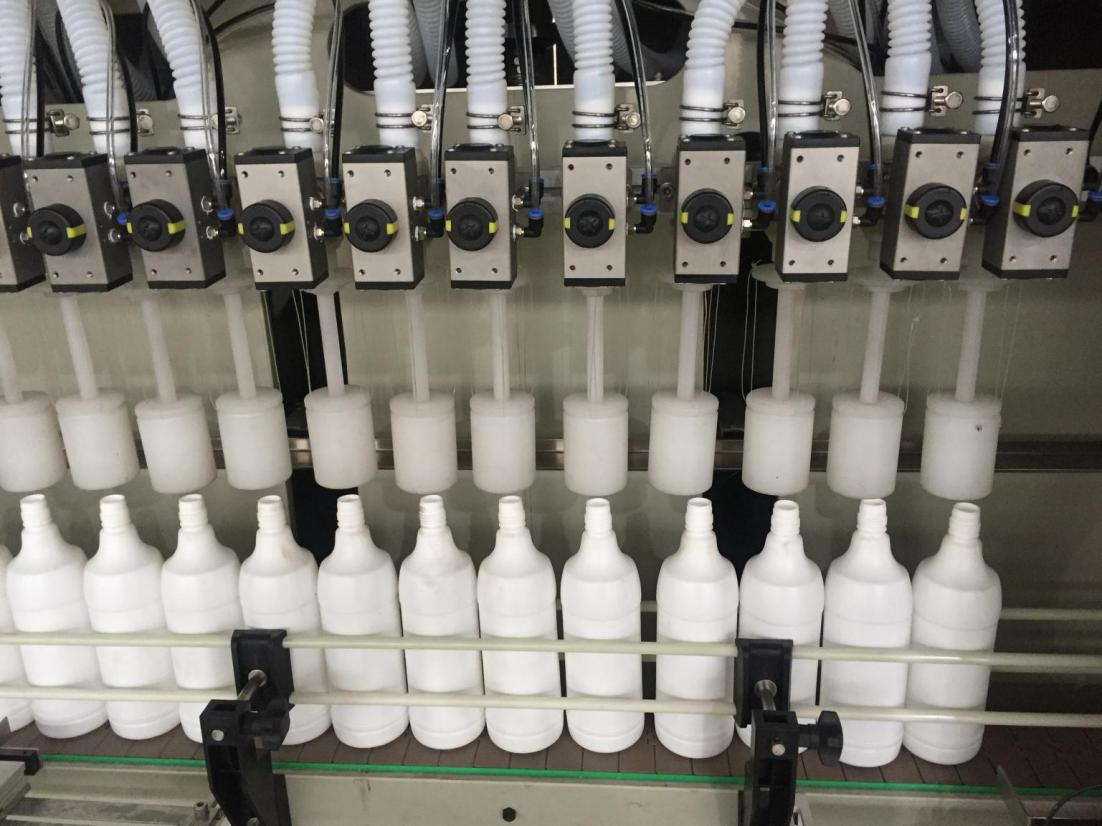

Every filling head has anti-drop design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth. The tube material is PTFE, corrosion resistance. The filling heads are also PTFE material. They will go down into the bottles when start to fill.
-

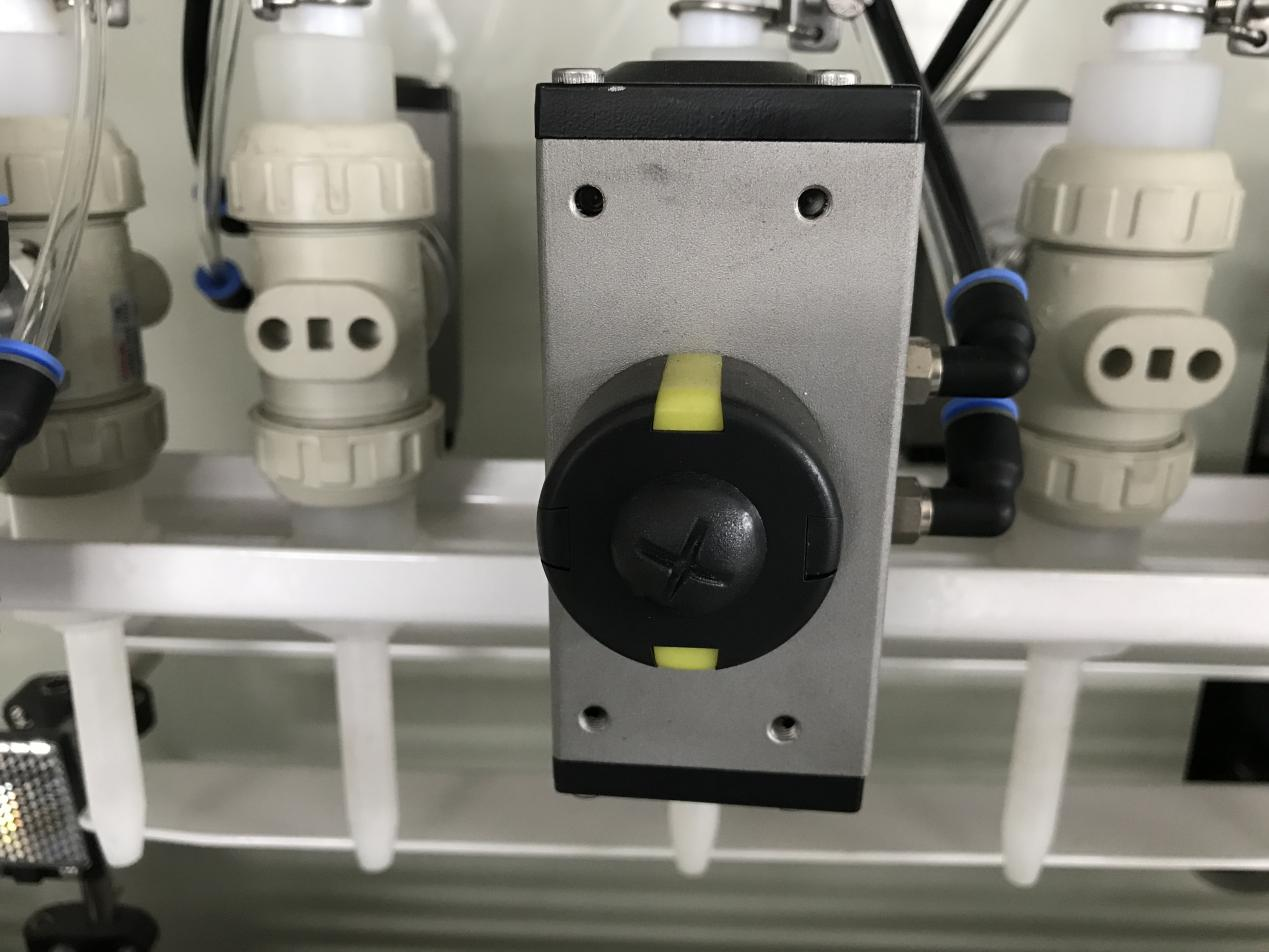

The valves are also used to control the bleach filling time and anti-corrosion. The material tank is made of PTFE material, corrosion resistance. The material tank uses the slope design, it is more easy for the customer to change the material, meet GMP requirements .
-
This valve is controlled by PLC system, and it use time control to set the filling volume. The filling volume settings can be done on the touch screen.
-
T hank you for the reading this article,
|
Filling nozzle |
12pcs |
Filling nozzle, material tank & parts touches liquid |
Plastic |
|
Filling volume |
800 ml- 5L |
Air pressure |
0.6-0.8 Mpa |
|
Filling form |
Gravity |
Conveyor |
Width: 82mm POM chain height: 750+/-25mm |
|
Speed |
15 00- 35 00bph(Based on 1000 ml container) |
Conveyor |
370W frequency speed adjust motor |
|
Accuracy |
< ±0.5% |
Power |
2 .5Kw |
|
Material |
Plastic |
Voltage |
220 V/50Hz ( Can be customized ) |
|
Control |
PLC and touch screen |
Protection device |
Lack of material, machine stop and alarm vary bottle and shape, need confirm on the machine. |
