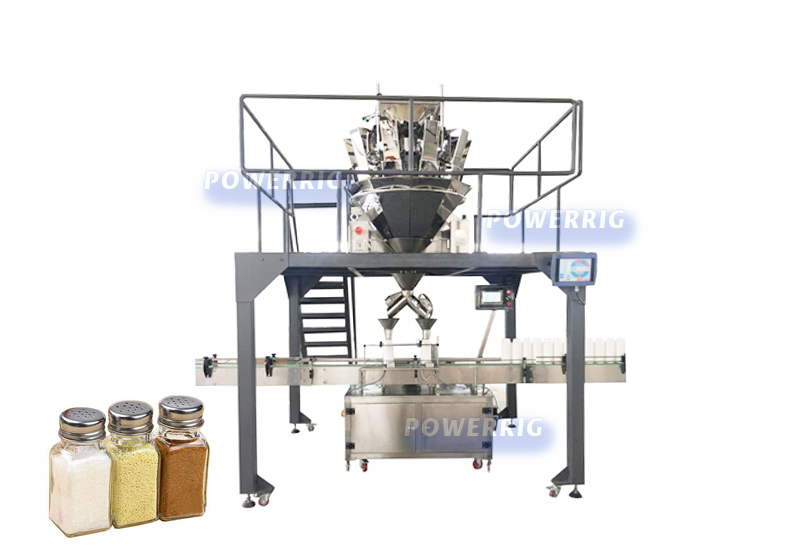

This machine is mainly used for bottled granule packaging, using PLC programmable touch screen control, can double hopper at the same time, but also can be single hopper blanking. Used in conjunction with the combined scale, it has fast speed and high precision.

Features:

1. Use high-precision multi-head scale for measuring the material weights;
2. Multi filling heads choice to suit different capacity needs;
3. Material contacting part can be SUS 316 material;

4. Platform can be stainless steel material.

1.Easy to operate，adopt advanced PLC from Germany Siemens,  mate with touch screen and electric control system, the man-machine interface is friendly.
2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
5.Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7.It match  with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
8.Use the plastic bearing, don’t need put on oil, less pollution.
9.Use no oil vacuum pump, avoid polluting the environment in the production.
10.The opening zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open the zipper
11.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and  has a  high quality of the sealing part, this improved the product specification
12.Product or packing bag contact parts  adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
13.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
14. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

Powerrig Machine is one of the toppest granule filling machine,granule plastic bottle filling machine, food filling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.



•





Filling Head	both ends
The Bag Type	Round or square bottles are acceptable
Packaging Range	20g-1000g
Packing Speed	3000 ~ 3300 bottles/hour
Electrical Source	380V 3phase 50HZ
Pressure Of Work	0.8Mpa
The Total Power	0.5KW
Machine Weight	250kg

Touch Screen	Letter express color screen
PLC Programmable	Japan's mitsubishi
Platform Lifting Machine	Shanghai ZhuoSheng
Hopper Door Cylinder	Japan SMC
Feed Reversing Cylinder	Yadeke, Taiwan
Solenoid Valve	Yadeke, Taiwan
Photoelectric Inspection Bottle	Opus, Japan
Low Voltage Electrical Appliances	Schneider, France
Ac Contactor	Schneider, France
Relay	Omron, Japan
Material Is  Qualitative	The machine is made of 304 stainless steel

•
•
•
