Labeling Machine

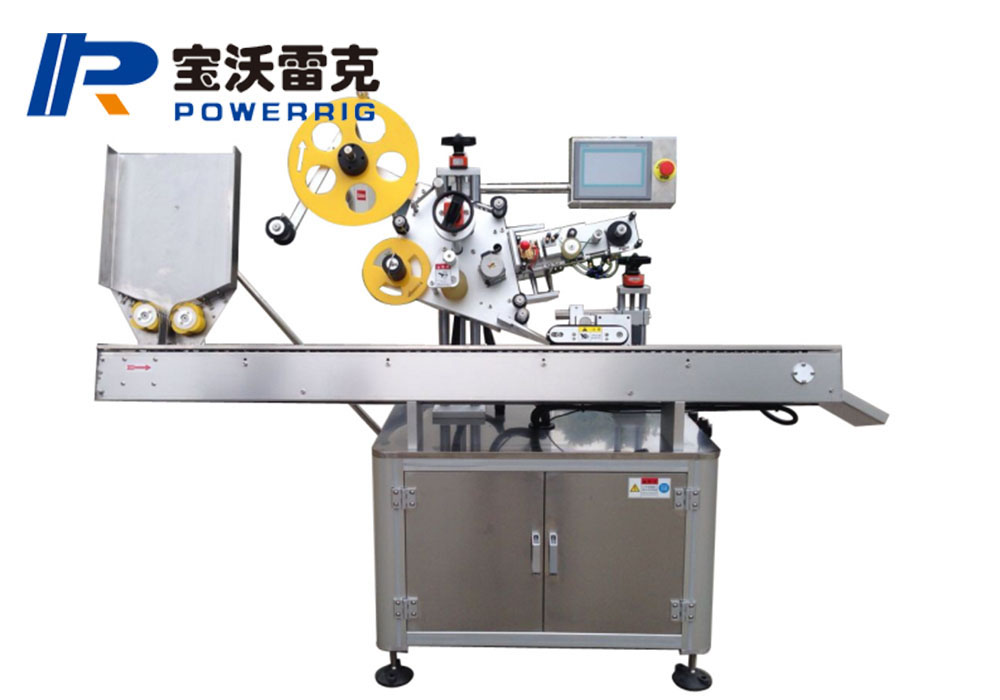

Automatic Horizontal Way Labeling Machine ( Speed 30-180 pcs/min )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
This 2017 skillful manufacture MIC-RT60 high speed labeling machine on top surface is our company`s upgrade products, the equipment is reasonable structure and convenient operation. Can realize stepless adjusting for production capacity ,according to the specification and characteristics of flat bottle and label . The machine has a strong suitability for all kinds of flat bottles in food, medicine, cosmetic, etc. Various kinds of specifications of glass and plastic flat bottle, no matter use transparent or opaque adhesive labels,all can in the bottle or the side of the vessel with satisfactory tags.

Control system：use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate

Operation system： The man-machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich with the help function and fault display function ;

Check system： Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker

Send label system：use SIEMENS high-power servo control system, stable with high speed；

Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

Machine Material： machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;

Labeling way : use the servo send label system to send label on product surface; Low voltage circuit all use the German Schneider brand.


Powerrig Machine is one of the toppest horizontal labeling machine, bottle labeling machine, automatic labeling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

Model

PWM-A

Driving Mode

Servo motor

Yield（pcs/min）

30-180

Operating direction

Left or Right

Conveyor Speed（m/min）

≤40

Labeling Accuracy

±1.0 mm

The inner diameter of label roll

76 mm

The outer diameter of label roll

350 mm(max)

The suitable size of label

Width 15-100 mm length 15-80 mm

The suitable size of labeling objects

Can customized depends on client product

Printer use air

5kg/cm 2

Voltage (In China)

AC220V 50/60HZ Single phase
(Can customized as client need)

Power（w）

600W

Weight（kg）

260

Machine size

1800（L） 800 (W) 1300 (H) mm

PLC control system

SIEMENS

Touch-screen

SIEMENS

Photoelectric sensor
(Check label object)

Japan KEYENCE

Photoelectric sensor (Check opaque label）

German Leuze

Photoelectric sensor (Check opaque and transparent label）

German Leuze

Servo motor

America AB

Drive

America AB

Main transport motor

German JSCC

Roll label motor

German JSCC

Speed Controller

German JSCC
