Labeling Machine
Plastic Bottle Labeling Machine ( Speed 150 B/M)
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY

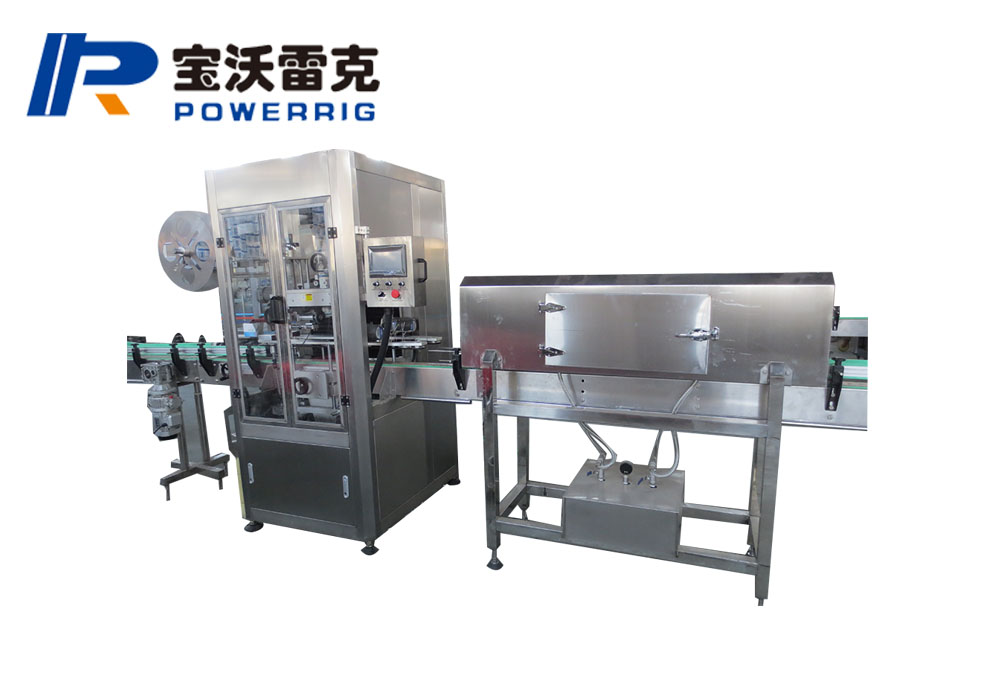

1)  PM-150 Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.
2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.
3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
4)Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.
5) The newly designed cutter stepper motor which speed is high ,action is exact,the cut is in order and the shrinking is beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.


Powerrig Machine is one of the toppest plastic bottle labeling machine, bottle labeling machine, round bottle labeling machine factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.

Import Power

3.0KW

Import Voltage

∮3, 380/220 VAC

Capacity(production speed)

150 bottles per min

Dimension of Host Machine (mm)

L2100 × W850 × H2000

Applicable Diameter Container (mm)

φ28 mm ~ φ120 mm

Applicable Label Length (mm)

30~250 mm

Applicable Thickness Label (mm)

0.03~0.13 mm

Applicable Inner Diameter of Paper Tube

5''~10''

PLC

Japan

High-speed Optical Fiber Sensor

Japan

Photoelectric Sensor

Japan

Label Infeeding Servo Motor

France

Label Infeeding Servo Drive

France

Cutting Head Servo Motor

France

Cutting Head Servo Drive

France

Bottle Separation Motor

Taiwan

Bottle Separation Frequency Converter

Taiwan

Conveyor Motor

Taiwan

Label Feeder AC Contactor

Taiwan
