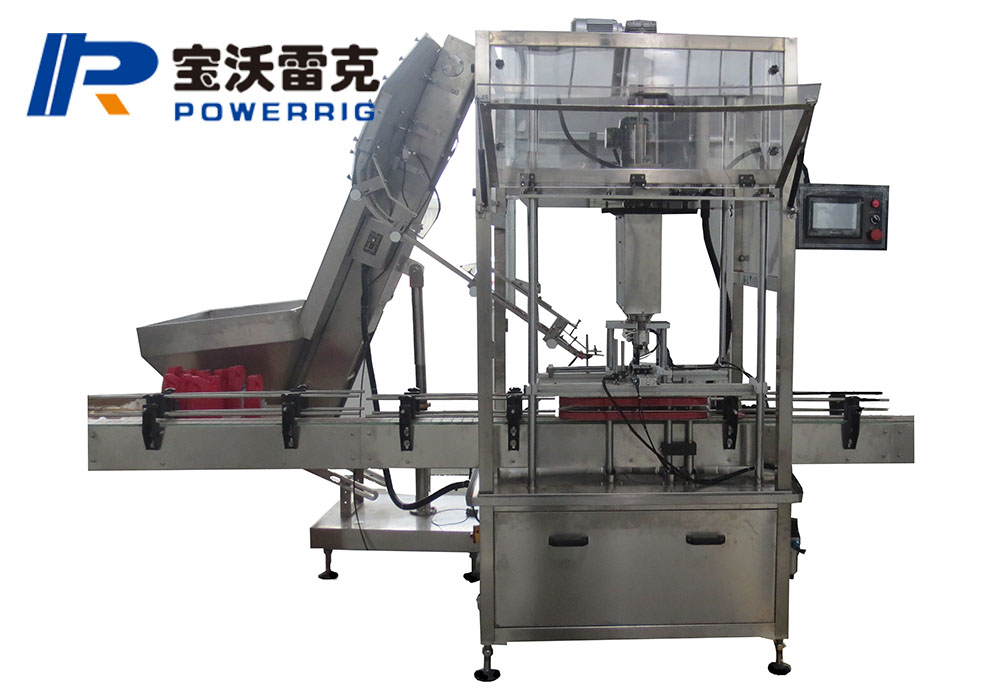

Capping Machine
linear screw and press capping in one machine
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
1.Can suitable to screw cap and press cap 2 type caps.
2. Torque force can adjust.
3. The cap is placed in the hopper to automatically cover, In the process of the sensor will automatically detect the positive and negative cover.
4. Qualified cover will automatically loading through cap loading guide, then begin capping.
5. Press cap head in the first station, screw cap head in second station.
6. Press type cap will though first cap head to press cap. Screw cap head will through second cap head in second station.
7. The torque force of the screw cap can be adjusted. Cover with anti-theft ring, straw hat and bottle tight with the cap can be applied. Adjustment is convenient, the machine is more precise.

Press Capping Head

1 head

Screw Capping Head

1 head

Application Bottle

Various sizes of round bottles, square bottles (barrels), flat bottle (barrels) and shaped bottles (barrels)

Application Cap Diameter

Ф28mm-Ф70mm(Can customized according to customer’s cap)

Production Speed

3000bottles/hour

Voltage

220V 3 Phase four-wire

Power

2.0KW

Gas Consumption

0.3m3/min

Work Pressure

0.5Mpa-0.7Mpa

Size

2100mm × 900mm× 1564mm

Weight

360 kg

PLC

Schneider France

Electromagnetic valve

Taiwan AIRTAC

Air cylinder

Japan SMC

Gas source

Taiwan AIRTAC

Photovoltaic systems

Japan OPTEX

Inverter

Schneider France

Machine material

SUS 304
