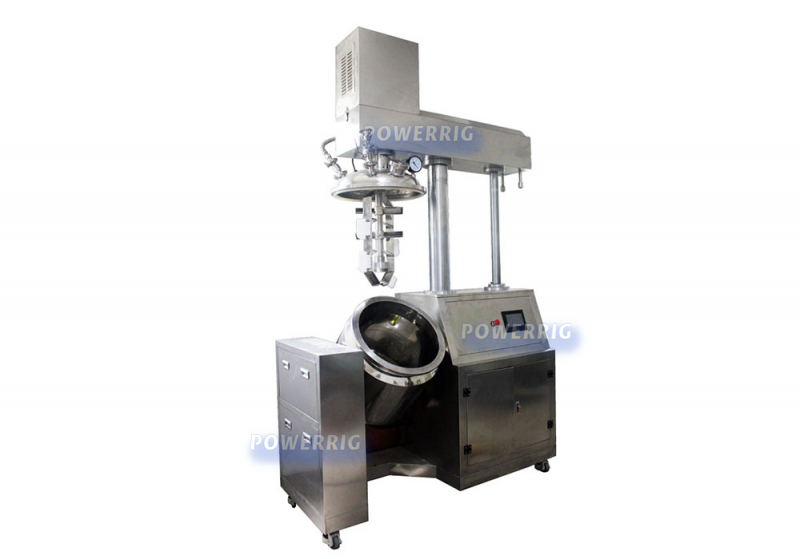

This machine consists of: oil tank, water tank, vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system. It is the most suitable equipment to produce high-grade skin care creams or other creams products.
Oil tank capacity 42L; water tank capacity 42L; primary pot capacity 60L, working volume 50L; limiting vacuum -0.09MPa.
Size: Comple te machine: 1500mm×600mm×1900-2500mm
Oil and water tank: 1200mm×600mm×1100mm
Material: 304 stainless steel. Inner wall, jacket, outer layer all made by 304 stainless steel, inner and outer are polished, the surface handled by special light treatment.
Oil tank and water tank are both double deck, inner wall thickness 3mm, middle and outer thickness 2mm.
Heating system: interlayer electric heating power 4KW, the outer layer covers by asbestos to insulate heat, reducing heat lost and avoiding scalding employees.
Mixing system: both toil tank and water tank assemble disperser of 0.55KW, to make the water and oil heated more quickly and evenly.
Vacuum Emulsifying pot: made of three decks 304 stainless steel. Interlayer thickness 3mm, middle layer thickness 3mm, outer layer thickness 2mm, special light treatment The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 2.2KW, made in Shanghai and uses German technology, the highest speed 2800 rev / min. The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.
Vacuum system: voltage 380V, power 0.75KW, materials in water tank and oil tank are absorbed into the primary pot in vacuum. The rotary-vane pump is made by Haibo Kang Company in Shanghai, which can remove the air bubble to improve the homogenizing effect.(circulating cooling by water)
Mixing system: voltage 380V, power 1.1KW, 10-120 rev / min. Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.
Heating system: 6KW electric heating device attaching at the bottom. Heating with temperature display, easy to control.
Electric lifting: voltage 380V, power 1.1KW. Lifting is easy to operate, so the material can be effectively emulsified in a closed condition.
Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together,clear at a glance.
Powerrig Machine is one of the toppest homogenizer mixer,vacuum mixer homogenizer,vacuum homogenizer factory.During these years of exporting, Powerrig Machine now has rich experience in the worldwide markets.
Pot lid feeding system
This device can be connected to the tube using vacuum system, the material into the emulsifying pot, inner wall and outer are 304 high quality stainless steel, inside and outside fine casting, surface special light processing.
Mixing system
Equipped with transparent observation hole, frequency conversion speed regulation wall scraping mixing, voltage 380V, power 0.55KW,10-120 RPM, so that the material fully mixing, mixing, refining to meet the ideal requirements. According to different products arbitrary set of homogenization time.
Emulsifying head
Emulsify material by high speed spinning, using 304 high quality stainless steel, no corrosion, and easy to clean and replace.
The material moves at high speed in the clearance between the multi-layer rotor and stator, forming strong hydraulic shear, disperses the material, and generates centrifugal extrusion, grinding, collision and other comprehensive forces.
|
Device Name |
10 L E mulsifying Machine |
5 0 L E mulsifying Machine |
|
Working ability |
Design volume : 13 L |
Design volume : 6 0 L |
|
Work ing volume : 10 L |
Work ing volume : 5 0 L |
|
|
Minimum o perating volume : 3 L |
Minimum o perating volume : 2 0 L |
|
|
Material |
Contact Parts: 304 stainless steel t hickness: 3 mm |
Contact Parts: 304 stainless steel t hickness: 3 mm |
|
Interlayer : 304 stainless steel t hickness: 3 mm |
Interlayer : 304 stainless steel t hickness: 3 mm |
|
|
Outer layer : 304 stainless steel t hickness: 2 mm |
Outer layer : 304 stainless steel t hickness: 2 mm |
|
|
W eight |
3 5 0kg |
650kg |
|
Size |
1100mm × 600mm ×1500 mm |
1500mm × 600mm ×1900-2 5 00 mm |
|
Service l ife |
10 years |
10 years |
|
Stirring |
Fixed paddle stirring, PE blade Scrap ing |
Fixed paddle stirring, PE blade Scraping |
|
Homogenizer |
P ower: 0. 7 5 KW |
P ower: 2.2 KW |
|
Motor speed: 2 800 r/min |
Motor speed: 2 800 r/min |
|
|
Particle size: 0.2-0.6um |
Particle size: 0.2-0.6um |
|
|
Uncapping |
Electric lift |
Electric lift |
|
Heating |
Electric heating |
Electric heating |
|
Discharge |
Tilt pot discharge and bottom valve discharge |
Tilt pot discharge and bottom valve discharge |
|
Process parameters |
W orking pressure : - 0.09 MPa |
W orking pressure : - 0.09 MPa |
|
Flimsy parts |
1 year renewal except artificial |
1 year renewal except artificial |
|
Warranty period |
1 year |
1 year |
|
Inverter |
Taian (Taiwan) |
|
Motor |
Huadiao (Nanjing) |
|
Reducer |
Jiahe (Zhejiang) |
|
Vacuum |
Boer Kang (Shanghai) |
|
304 stainless steel |
T aigang (Tianjin) |
|
Main electrical components |
Zhengtai (Zhejiang) |
